11 e10a-usb interface – Renesas M3A-HS37 User Manual
Page 30
Functional Specifications
2.11 E10A-USB Interface
Rev.1.00 Oct 09, 2008
2-14
REJ11J0021-0100
2
2.11 E10A-USB Interface
The M3A-HS37 is provided with an H-UDI connector (J2) to connect the E10A-USB emulator.
Figure 2.11.1 shows the E10A-USB interface block diagram.

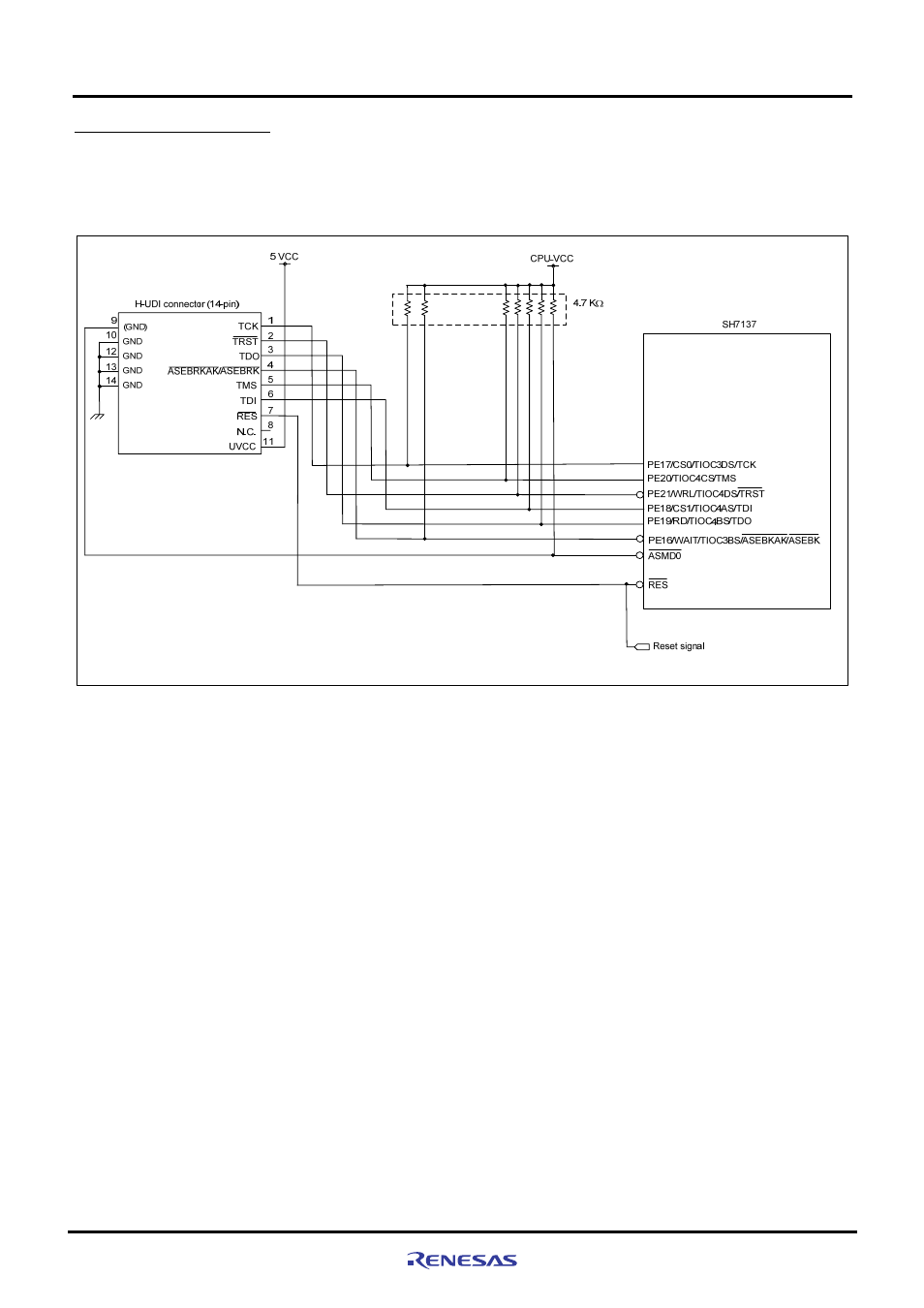

Figure 2.11.1 E10A-USB Interface Block Diagram
