Final Approach
Support
sleeve nuts
3. Using a compass, rotate the dish so that the LNB arm points
in the azimuth direction. Loosen the support sleeve nuts as
needed.
4. If you do not hear a continuous tone, use the following
procedure to adjust the dish until you hear one continuous
tone:
• At the top of the mast is a piece of tape with evenly spaced
tick marks. Carefully rotate the dish one tick mark to the
right and pause for 5 seconds.
• If you still do not hear a continuous tone, rotate the dish
back to the original position and then one tick mark to the
left and pause for 5 seconds.
• Continue rotating the dish one tick mark at a time further
right and left from center (making sure to pause for 5
seconds at each position) until you hear the continuous tone.

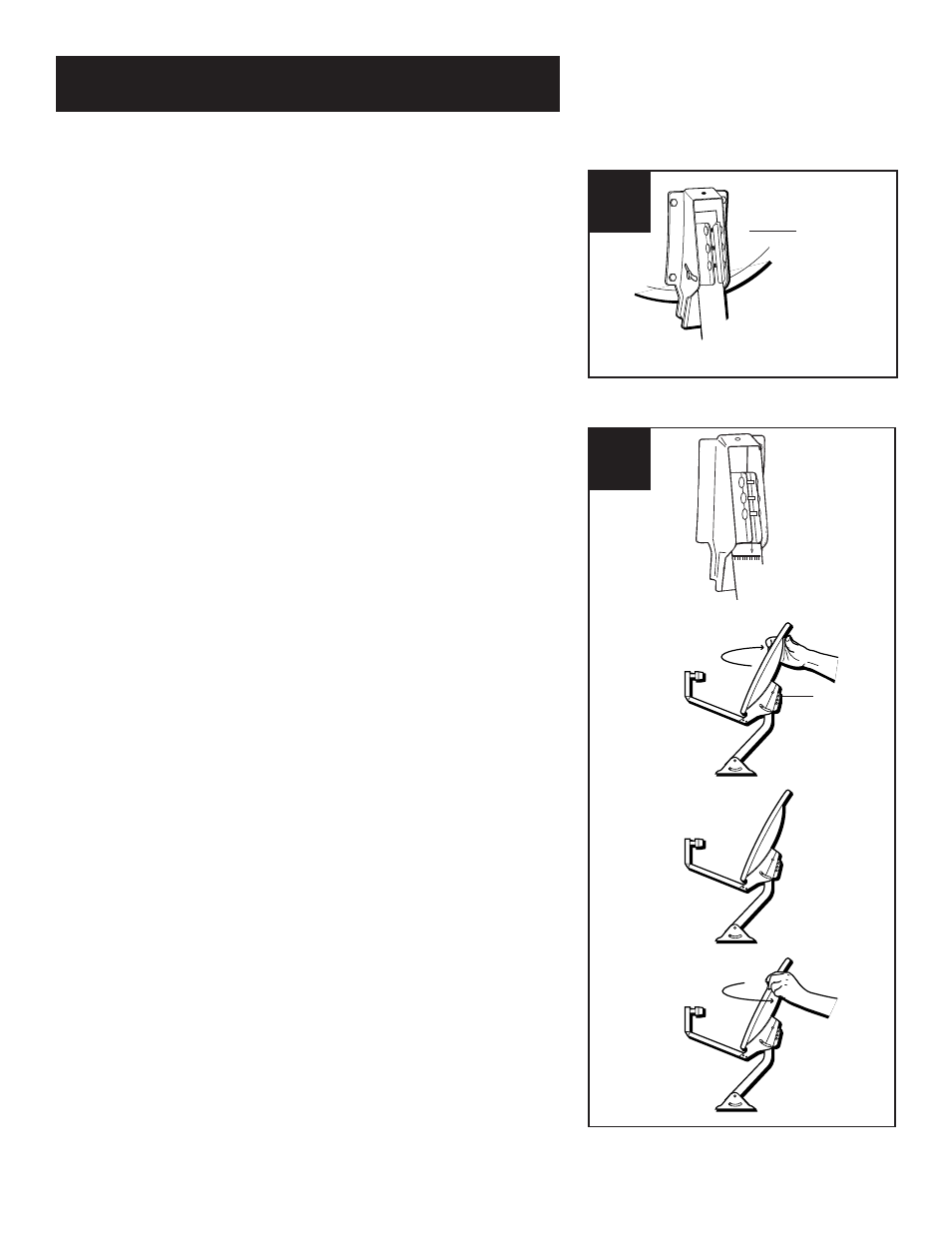

support sleeve
nuts
Line edge of bracket
up with tick marks
ROTATE RIGHT
One tick mark
Support
HANDS OFF
ROTATE LEFT
One tick mark
ROTATE RIGHT
one tick mark
ROTATE LEFT
one tick mark
line up edge of
bracket with tick
marks
support
HANDS OFF
