54
Mounting the Mast

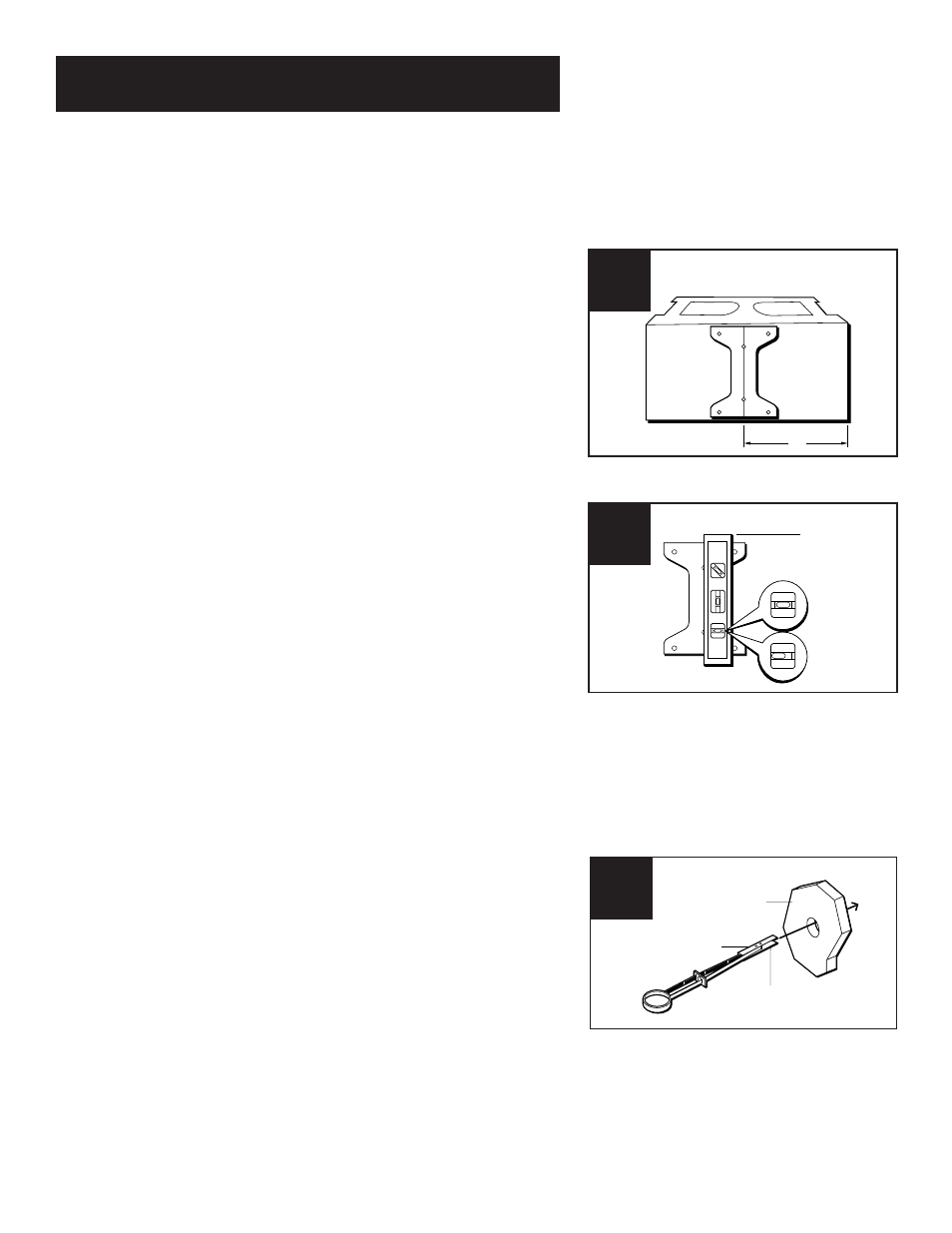

Step-by-step Instructions for Mounting
on a Hollow or Cinder Block Wall
1. When installing togglers in cinder blocks, it is important to
position them in the core of the block. To position the foot
on the wall, measure 7-1/2" from one edge of the block and
mark the center of the block.
2. Center the mounting foot on the mark you made.
3. Level the center line of the mounting foot using a bubble
level.
4. Mark the four outside corner holes.
5. Remove the mounting foot. Drill a 1/2" hole at the locations
you marked.
6. Install the togglers:
a. Carefully fold one end of the metal channel along the plastic
straps. Hold the metal channel flat against the plastic straps
and slide it through the hole.
,,,
,,,
,,, ,
,
,
,,
,
Wall
Metal channel
Fold in
6a
level on center
line of template
Level
Not Level
3
7 1/2 "
1
