Mounting the Mast
Step-by-step Instructions for Mounting
on Brick or Poured Concrete
1.

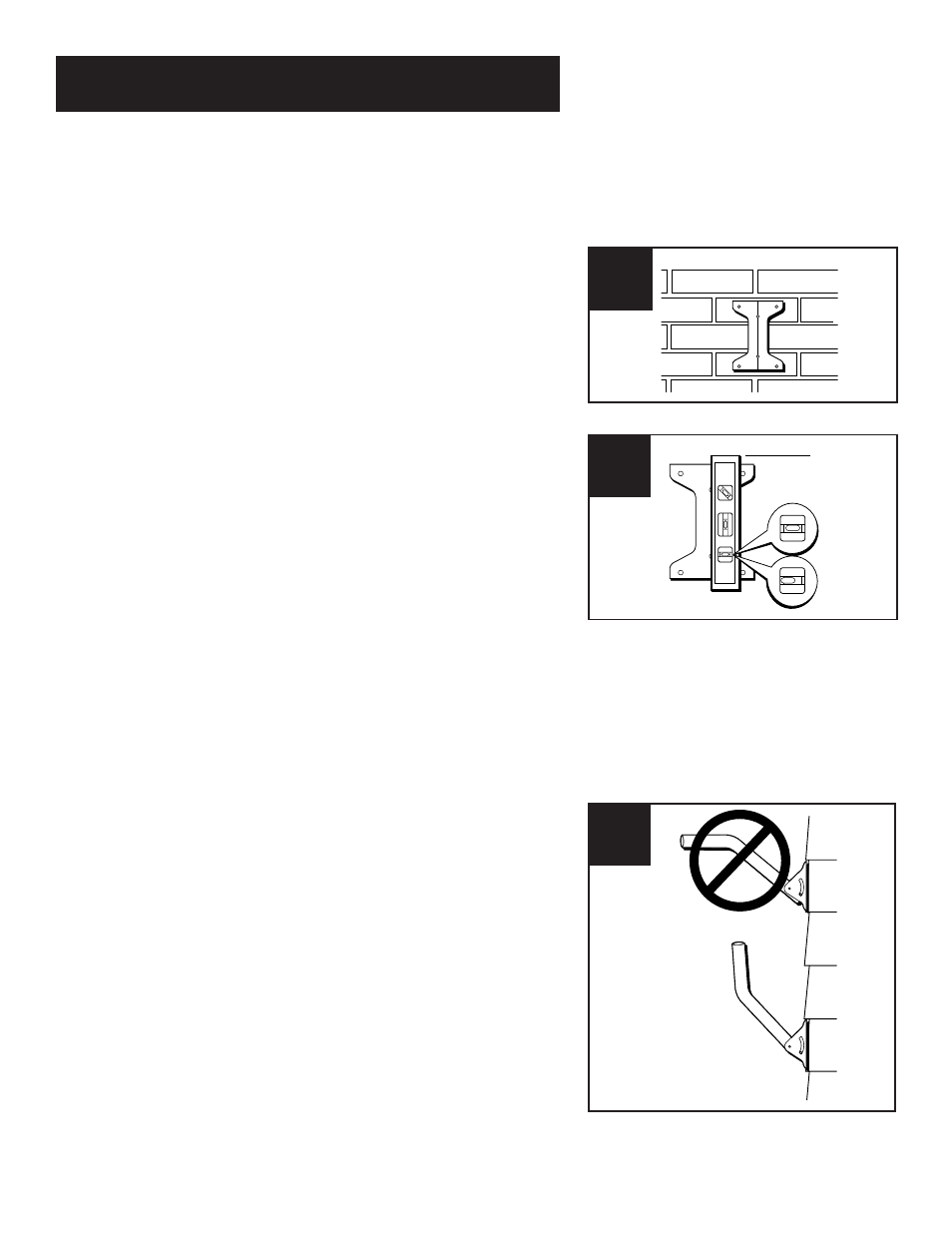

Hold the mounting foot in position on the mounting surface.
2.
If you are mounting on a vertical or sloped surface, use a
level to ensure that the center line is vertical.
3.
Mark the four outside holes on the mounting foot.
4.
Remove the foot and drill (4) 1/2" holes in the locations you
marked.
5.
Insert (4) B4015 or equivalent double-expansion anchors.
6.
Use a 7/16" wrench to loosen the nuts on the mounting foot
so that you can rotate the mast to access both of the center
mounting holes.
7.
Hold the mounting foot over the holes so the top part of the
mast will rotate and point straight up.
8.
Insert and tighten the machine screws.
9.
Go to “Final Approach” on page 63 for instructions on
leveling the mast.
1
level on center
line of template
Level
Not Level
2
7
No
Yes
