36
Testing the System
BOLT
NUT ( insert first )
OUT TO
TV
IN FROM ANT
S-VIDEO VIDEO R L AUDIO WIDE BAND DATA SATELLITE IN
PHONE JACK
CH4
CH3
LNB

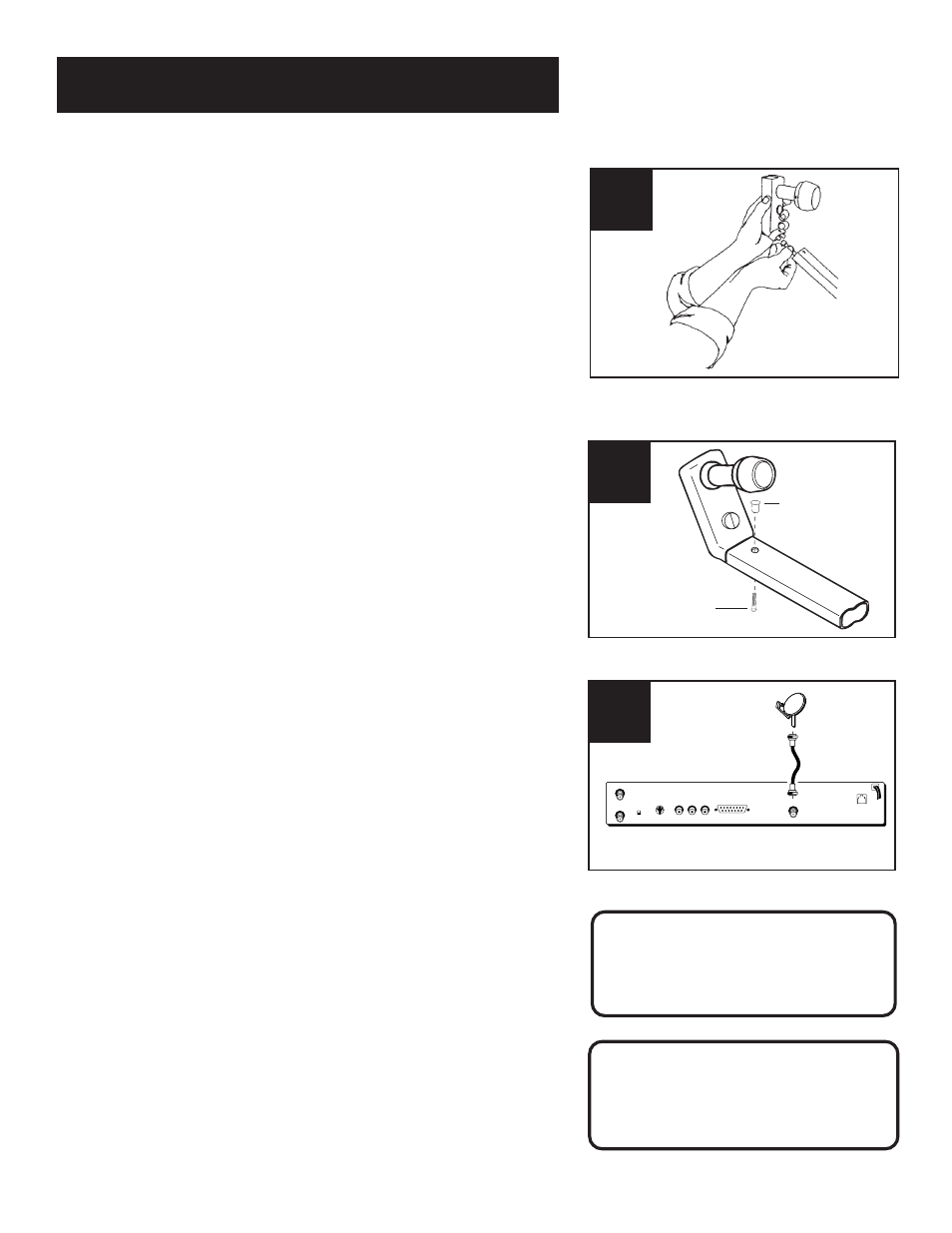

8. Connect the end of the cable to the LNB.
9. Insert the end of the LNB into the end of the LNB support
arm. Push any extra cable back through the LNB support arm.
10. Insert the special hex retainer nut into the mounting hole on
top of the LNB support arm.
11. Finally! Run the cable from the end of the mast through a
window or door and connect it to the SATELLITE IN jack on
the back of the DSS
® receiver.
8
11
You won’t be able to pick up a signal
unless you connect the dish to the
SATELLITE IN jack. Make sure you
don’t connect the cable to the IN
FROM ANTENNA jack.
Hint
Insert the hex retainer nut into the
LNB before inserting the Phillips-
head screw.
Phillips-head screw
10
hex retainer nut
