Mounting the Mast
Step-by-step Instructions for
Mounting on Wall Studs or
Solid Wood
1. Locate the center of a stud where you want to mount the
mast foot.
Make sure you locate and secure the mounting foot to
the center of a wall stud. Do not mount the dish near
the edge of a stud.
2. Hold the mounting foot in a position so the center line is
centered on a stud or solid wood surface (like a deck
rail).
3. If you are mounting on a sloped or vertical surface, use a
level to verify that the center line is perfectly vertical.
4. Use a pencil to mark the two center holes and the four
outside corner holes of the mounting foot.

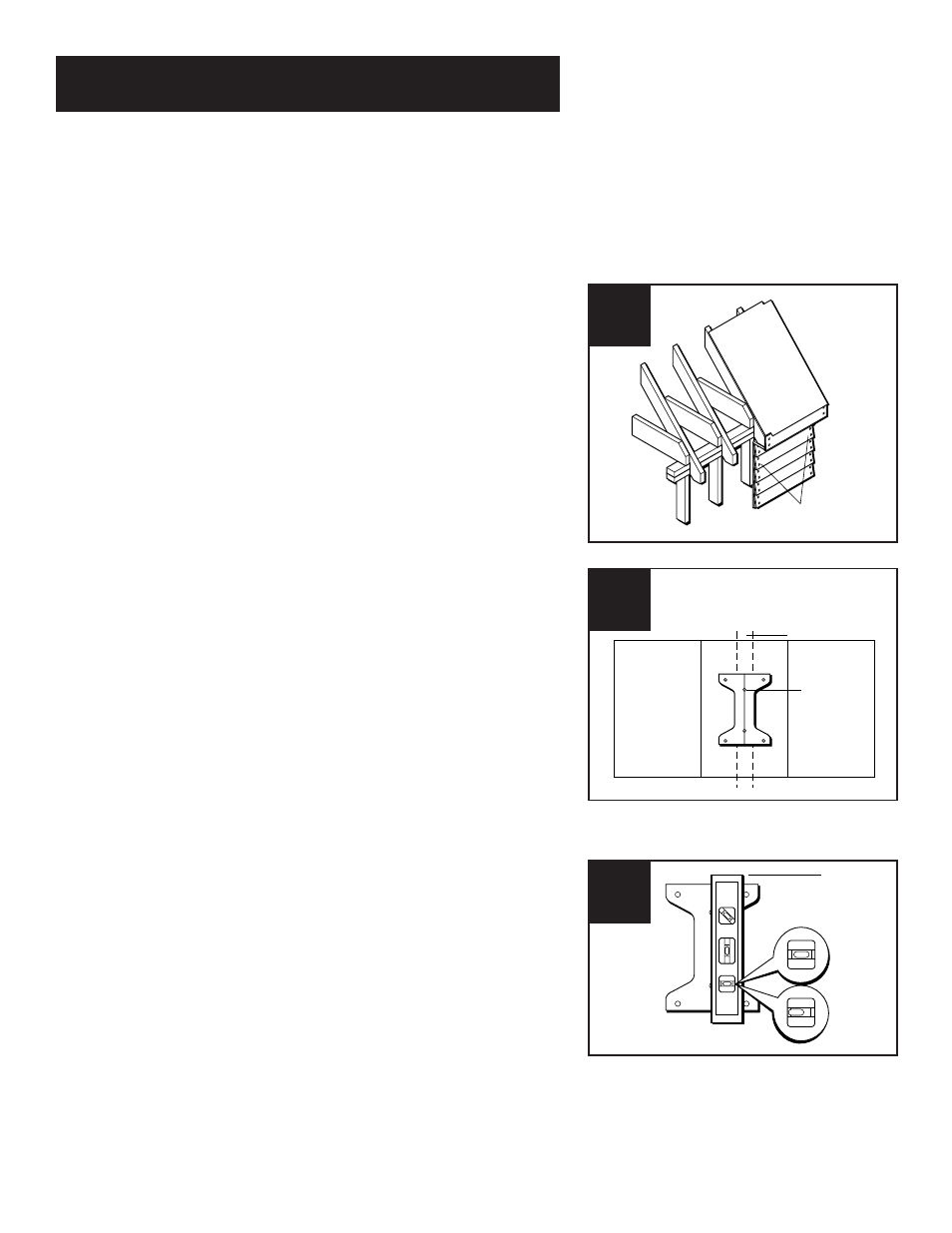

indicate location
of stud
1
Line center holes
on stud
Stud
2
level on center
line of template
Level
Not Level
3
