REPLACING 3.5-INCH HARD DISK DRIVE

Follow the procedure below to remove the failed hard disk. If the hard disk fails, it should
be replaced with new device with the server powered-on.

How to Locate Failed Disks

This section describes a procedure to locate failed disks.

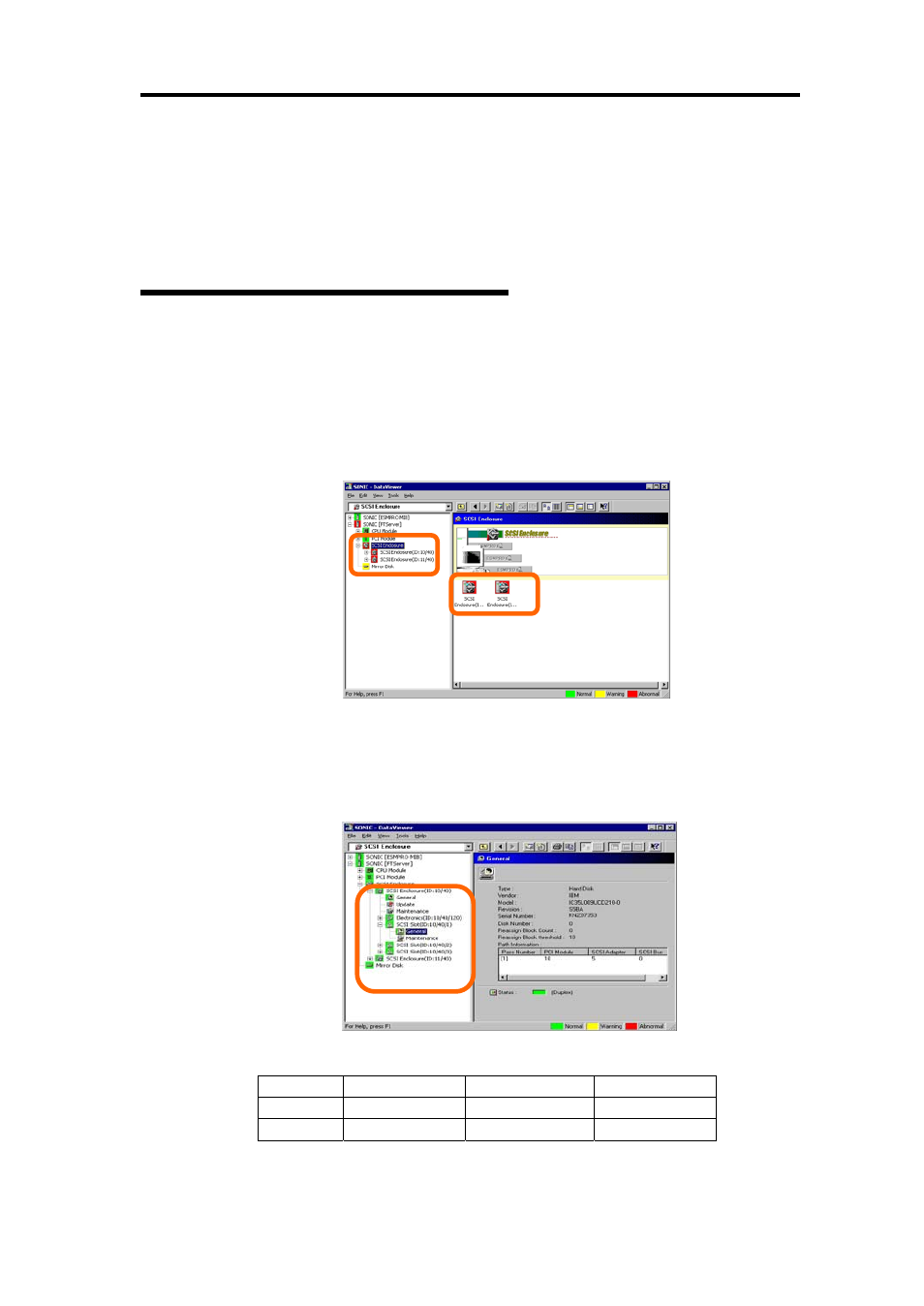

Open [Data Viewer] from ESMPRO Manager.

If trouble occurs, the color changes from green to red.

In this case, you will notice that there is trouble with both the SCSI Enclosures
(ID: 41) and (ID: 42).

Check the SCSI Enclosures (ID: 41) and (ID: 42) on the tree.

See the path information in [General Information] of [SCSI Slot] to locate a
group of 3.5-inch hard disk drive bays that corresponds to each enclosure.

The table below shows the path information on Groups 1 and 2:

Slot

PCI module

SCSI adapter

SCSI bus

Group1 10

Group2 11
