System Configuration 4-43
How to Clear Passwords
1. Power off NEC Express5800/ft series and unplug the both power cords.
2. Remove the both PCI modules (#1 and #2) from the NEC Express5800/ft series (see page
8-31 “Removing PCI Module”).
3. Open the top cover of the PCI Module #1.
4. Make setting of jumper switch for clearing the password.
Remove the clips from the jumper pins 11-12 and place them on the jumper pins 3-4 on
the PCI Module #1.
5. Mount the PCI Module #1 to NEC Express5800/ft series (see page 8-33 “Installing PCI
Module”).
6. Plug the both power cords and when the POWER Switch LED turns on, press it to power
on NEC Express5800/ft series.

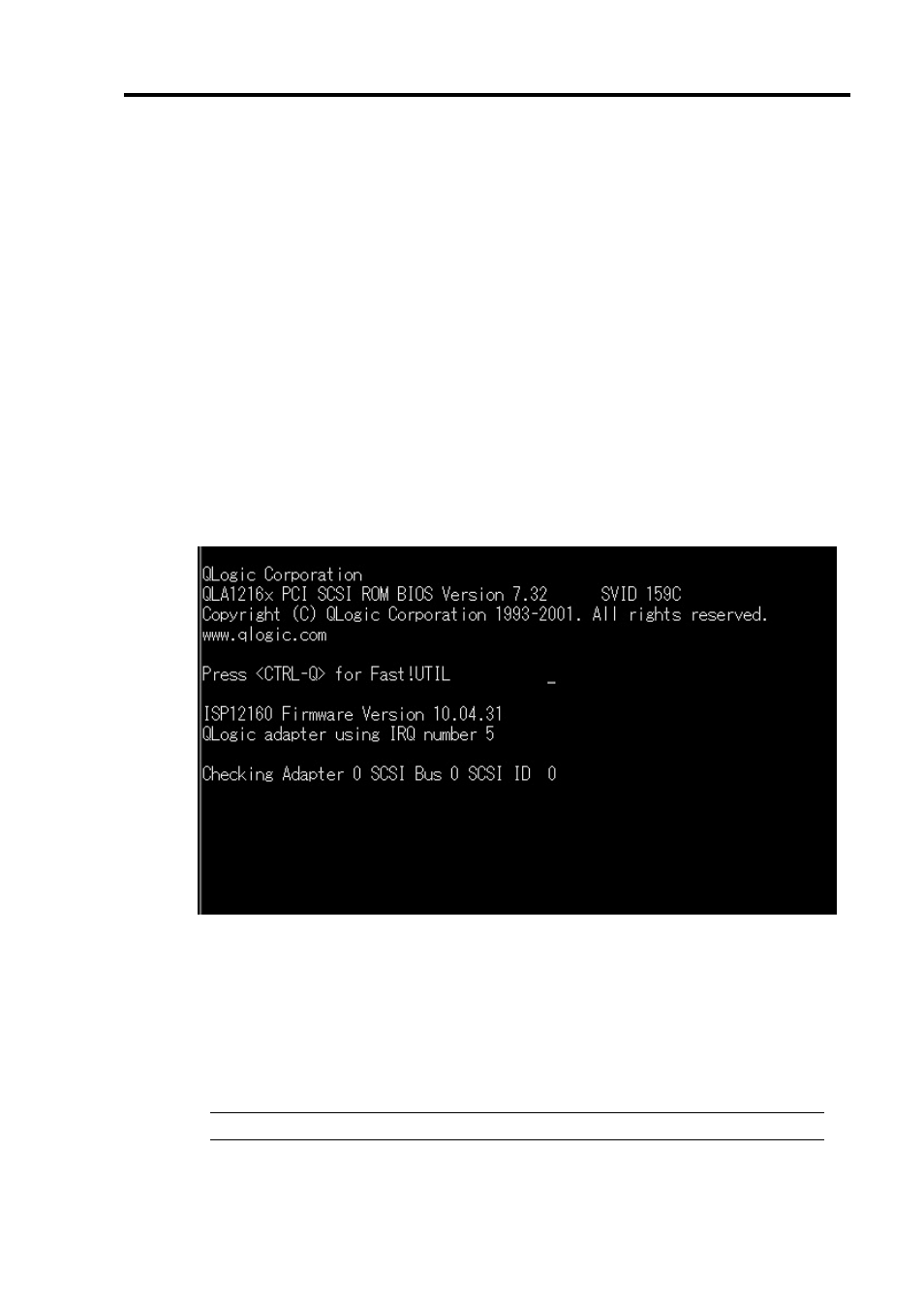

7. When the following POST screen appears after the startup, press the POWER Switch to
turn off the power.
8. Unplug the both power cords.
9. Remove PCI Module #1 from NEC Express5800/ft series (see page 8-31 “Removing PCI
Module”).
10. Reset the jumper switch setting.
Remove the clips from the jumper pins 3-4 and place them on the jumper pins 11-12 on
the PCI Module #1.
TIPS: If you place it on other pins, the server may malfunction.
