Installing and Using Utilities 5-47

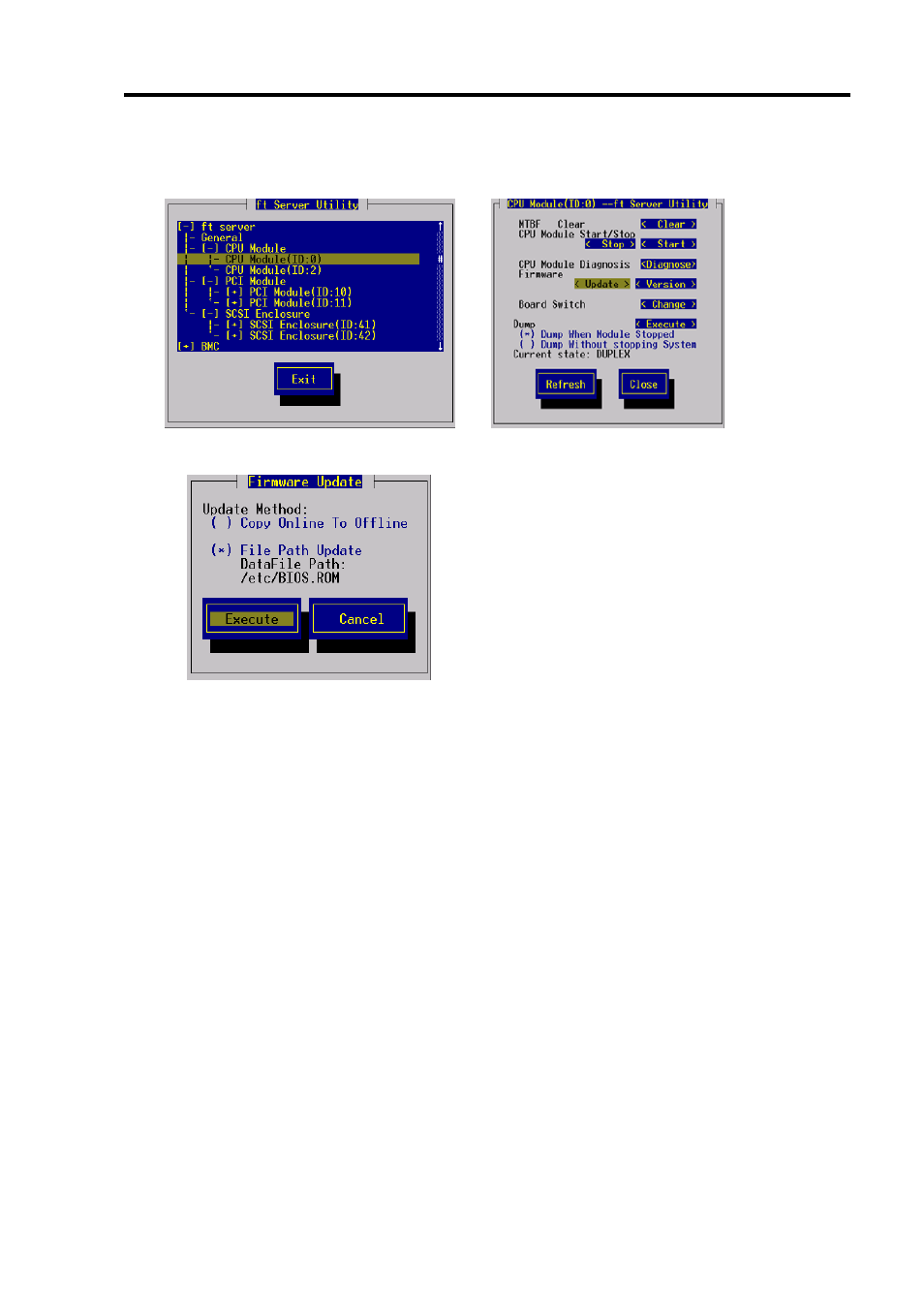

Sample screen of ft server utility
Main window [CPU module] screen
[Firmware Update] screen
Even if you do not have the image data of firmware for update, the firmware can be copied from the
other module.
By starting the module, the firmware will be updated automatically. However, when the [Auto
firmware update] property is disabled, follow the steps below to update the firmware:
1. Start the system using the module of the firmware copy source.
Check the status LEDs of the copy destination component for its current status. If it is running,
stop it.
2. On the [Update] screen of the target component, click [Firmware update].
3. When a firmware updating dialog appears, check [Copy firmware from Online module to Offline
one.] and execute it.
Firmware is updated by copying the firmware on the online side to the offline side.
4. Start the stopped module.
