CHAPTER 2 INSTALLATION
– 64 – NWA-008869-001 Rev.1.0
atch2001.fm

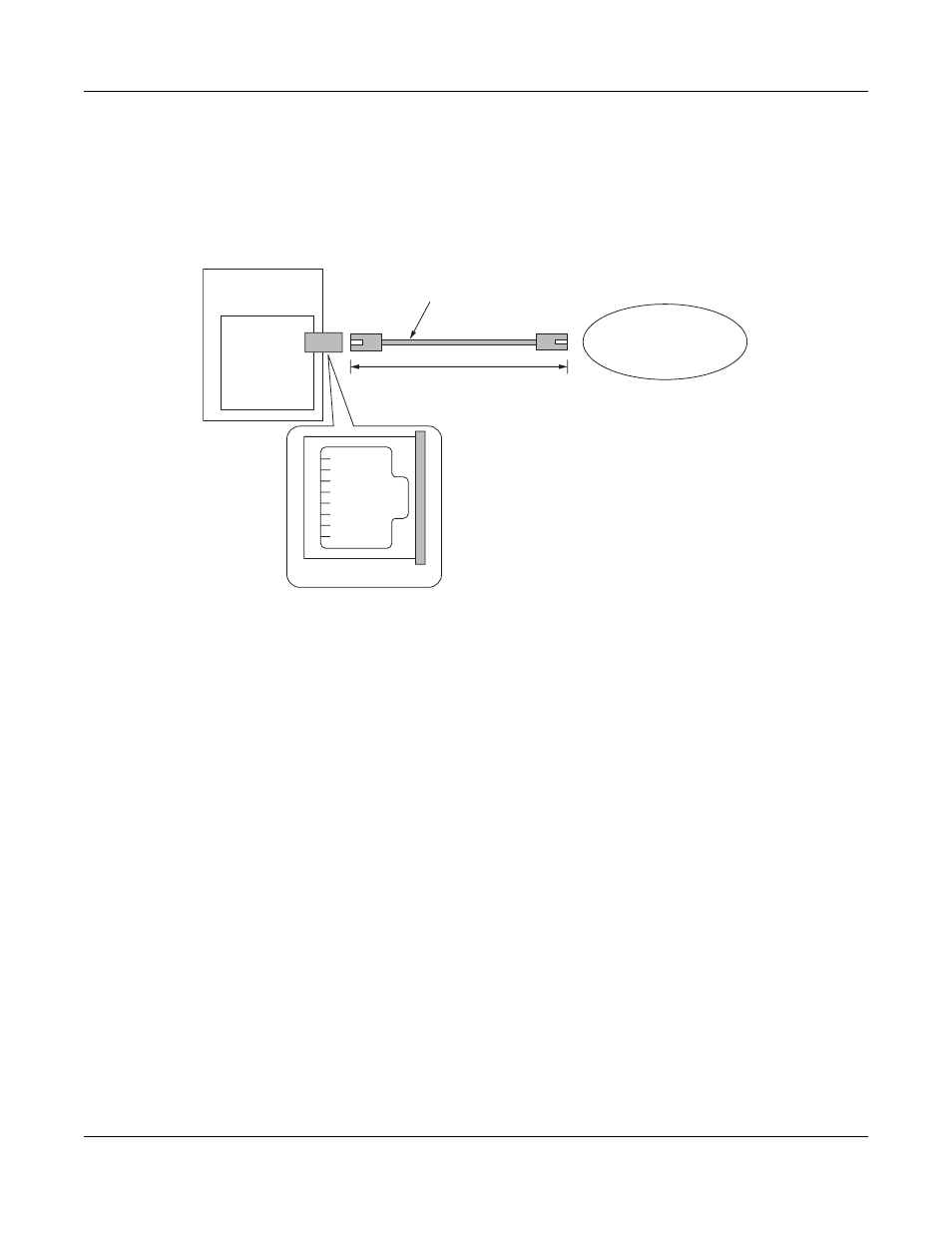

Cable Connection of WAN connector on PZ-M650 Card
Connect the WAN connector on the PZ-M650 card and the digital private line (E1).
PZ-M650 - Digital private network (E1) Cable Connection
PN-RTA
PZ-M650
WAN
8
7
6
5
4
3
2
1
E1 Network Cable
(Twisted-Pair Cable)
Digital Private Network (E1)
Not used
Not used
Not used
Tip (Transmit)
Ring (Transmit)
Not used
Tip (Receive)
Ring (Receive)
Pins (RJ-48C Connector)
Maximum 400 m (1310 ft.)
