Network connectivity 17
Sample network setup: Meridian 1
The Meridian 1 switch can be one of the following:
• Option 11C or Option 11C Mini using fiber connections
• Option 51C
• Option 61C
• Options 81 and 81C

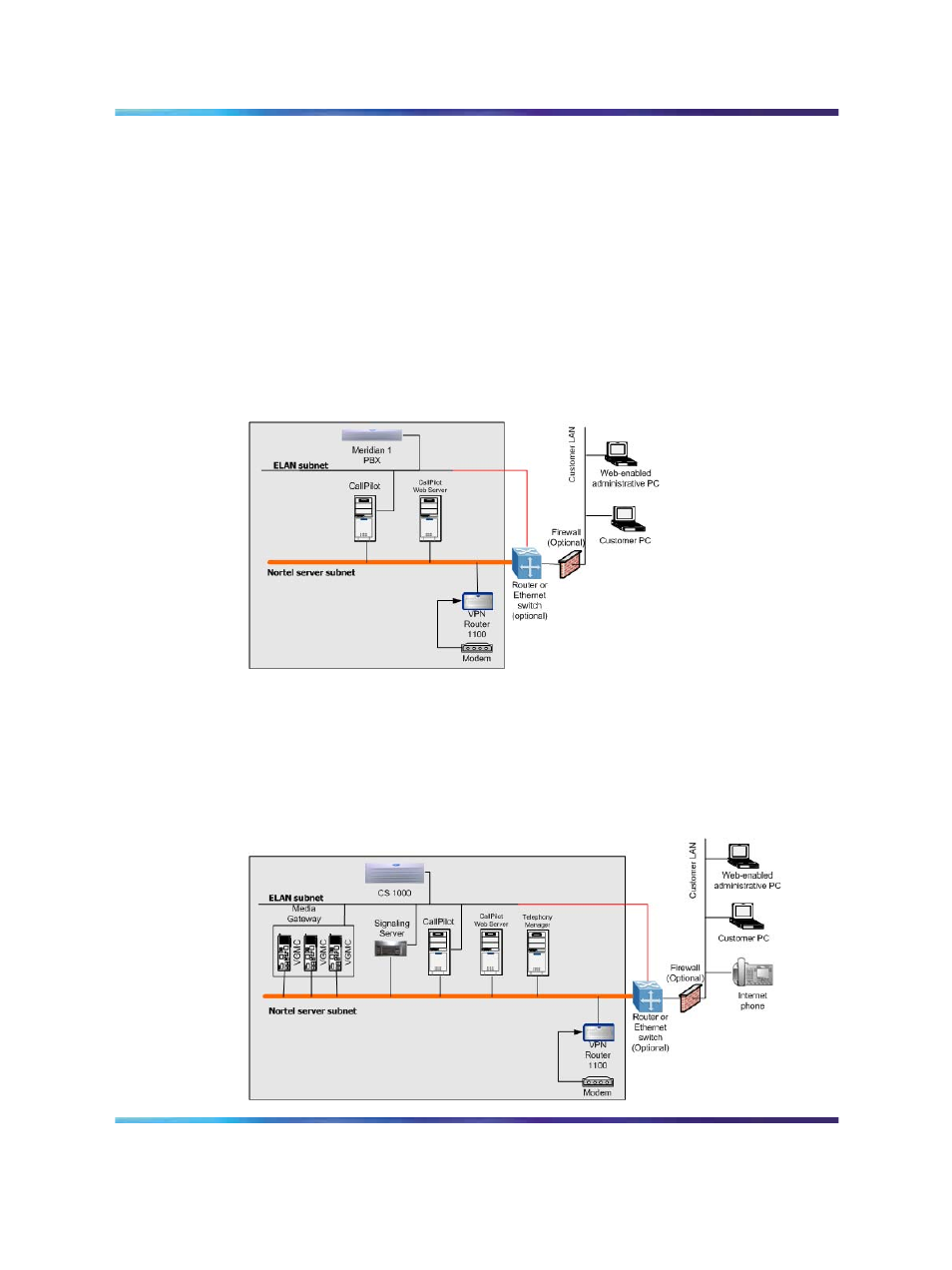

The following diagram shows a CallPilot 600r server network setup with
a Meridian 1 switch.
Figure 5
Sample network setup with Meridian 1
Sample network setup: Communication Server 1000
The following diagram shows a CallPilot 600r server network setup with a
CS 1000 system:
Figure 6
Sample network setup with Communication Server 1000
