5–48 1765 Network Printer Configuration Guide

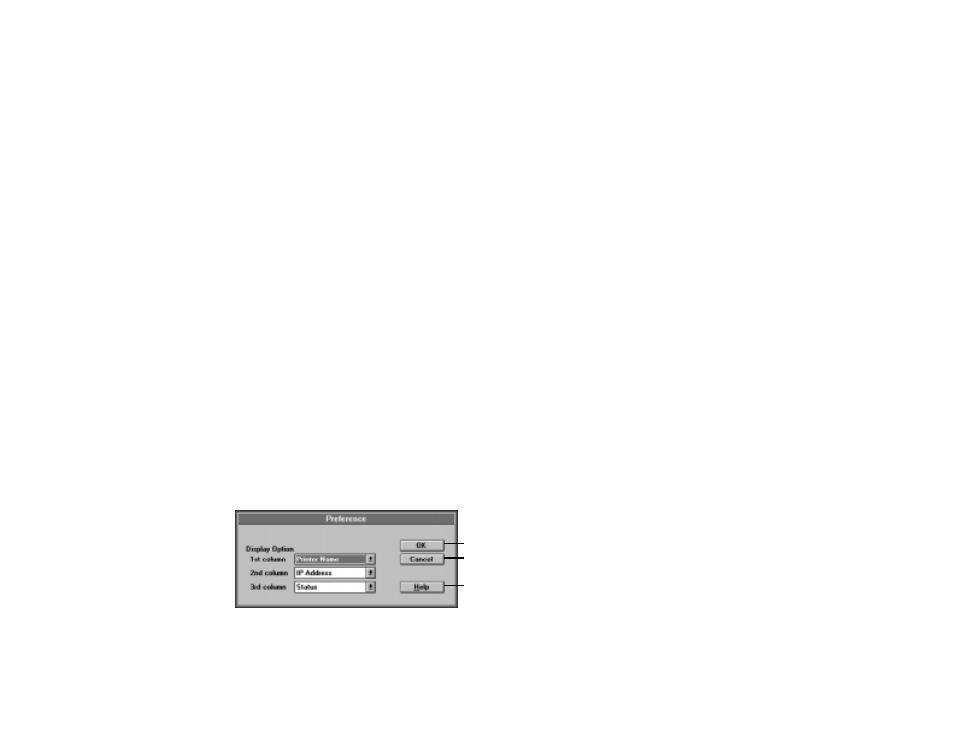

Preference Dialog Box
The Preference dialog box appears when you select the
Preference menu option from the Option menu in the
Printer Administration window. Use this dialog box to
specify which information appears in the Printer
Administration dialog box.
First Column: Selects the information to be displayed in
the first row of the printer list.
Choices: Printer Name, MAC Address
Default: Printer Name
Second Column: Selects the information to be displayed
in the second row of the printer list.
Choices: IP Address, LAN Card Type
Default: IP Address
Third Column: Selects the information to be displayed in
the third row of the printer list.
Choices: Status, Firmware Version
Default: Status
Saves changes and closes dialog box
Discards changes and closes dialog box
Opens online help about this dialog box
