Cable Diagram Pin Assignments
Passport 4400 Hardware Installation Manual
A-22

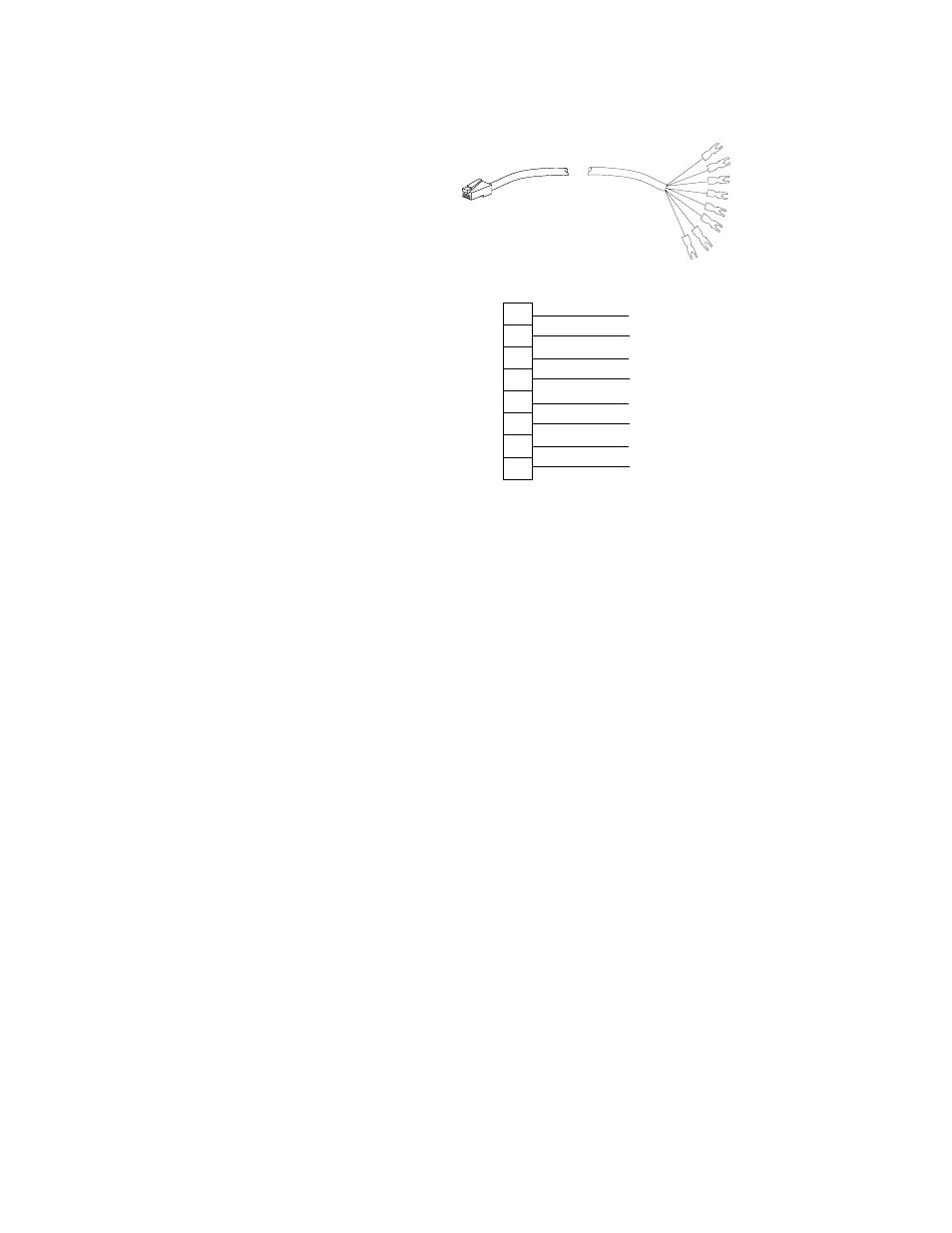

Figure A-19. Cable Model No. NTMU88AA -- Modular Cable to Lugs
RJ-CX
Connector
Signal Battery (SB)
Mouth (M)
Ring 1 (R1)
Ring (R)
Tip (Tip)
Tip 1 (T1)
Ear (E)
Signal Ground (SG)
1
SB, blue
2
M, orange
3
R1, black
4
R, red
5
T, green
6
T1, yellow
7
E, brown
8
DG, gray
Lug End and
Wire Color
SB
M
R1
R
T
T1
E
SG
