16 Chapter 2 1005r server description

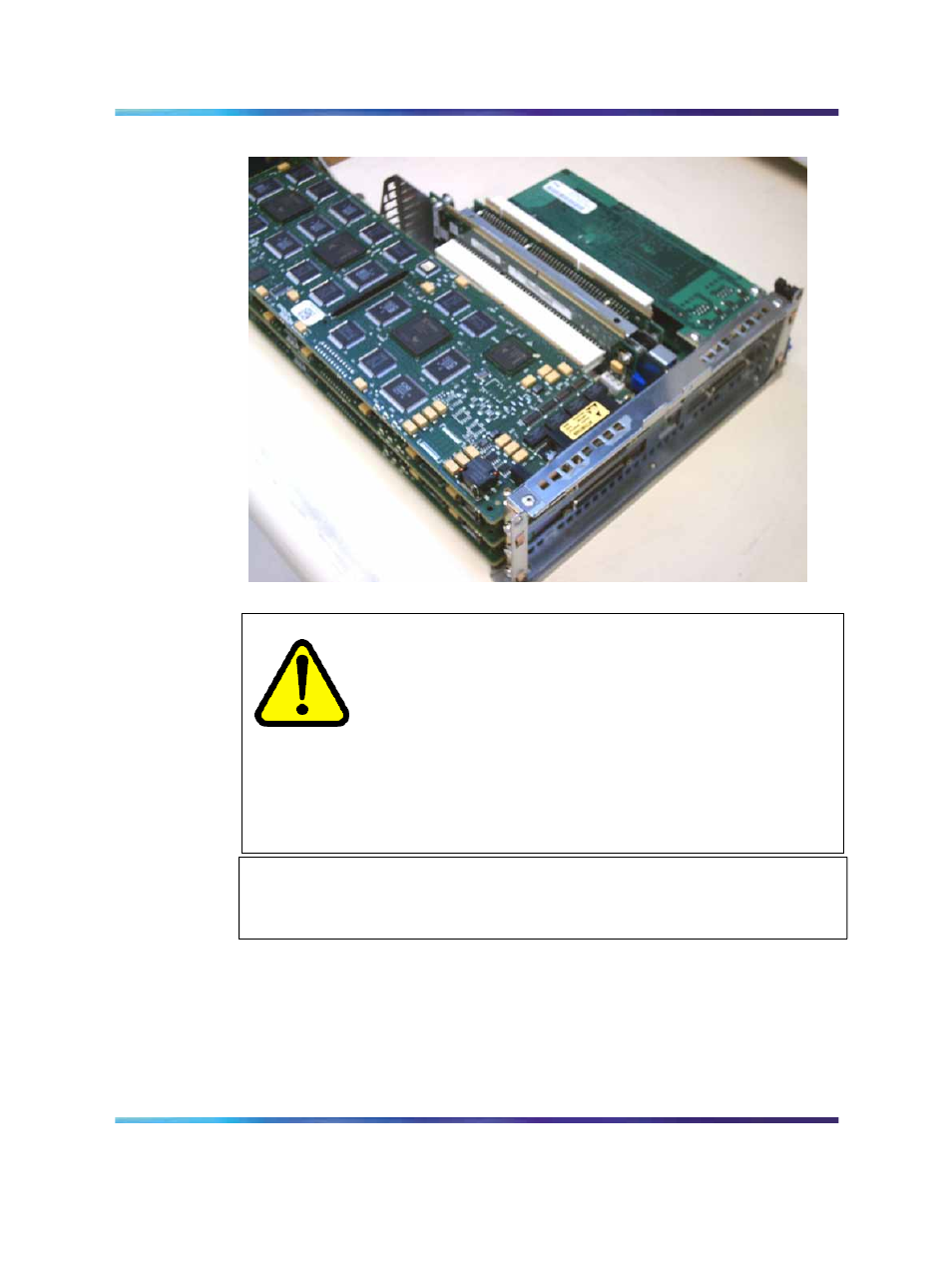

PCI riser card (turned over)
CAUTION
Risk of physical equipment damage
Remove the 1005r from the rack, and place it on a solid surface
when replacing or adding cards. The PCI riser assembly requires
considerable force when inserting it into the connector, and
physical damage can result if the assembly is not properly aligned.
When you place the server on a solid surface such as a
workbench, you have a better view of the card alignment, and
you can exert the necessary force when inserting the assembly
into the connector.
ATTENTION
If The PCI riser assembly must be fully seated to avoid server malfunction.
Valid PCI card configurations
Introduction
There are six PCI card slots; three low-profile and three full-size. Valid
configurations of low-profile and full-size cards are shown in the table
"1005r
PCI card slot configurations" (page 17) .
