Nortel Networks Server 1005r User Manual
Page 15
1005r Server features
15
PCI riser card

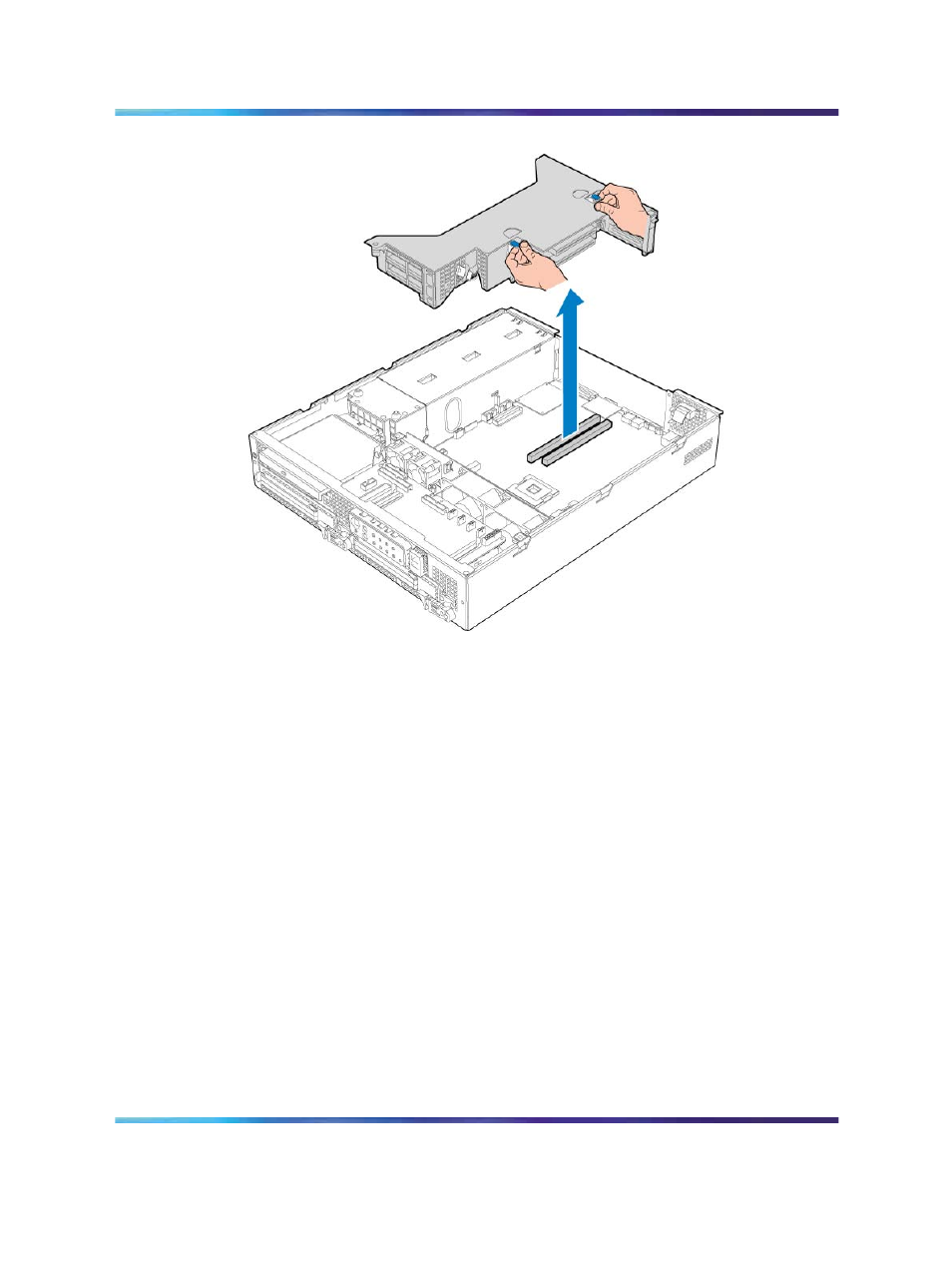

The following picture shows the PCI riser assembly when removed from the
1005r chassis. The PCI riser assembly is shown turned over with low-profile
and full-size cards installed.
Nortel CallPilot
1005r Server Hardware Installation
NN44200-308
01.06
Standard
5.0
15 May 2008
Copyright © 2006-2008, Nortel Networks
.
