14 Chapter 2 1005r server description

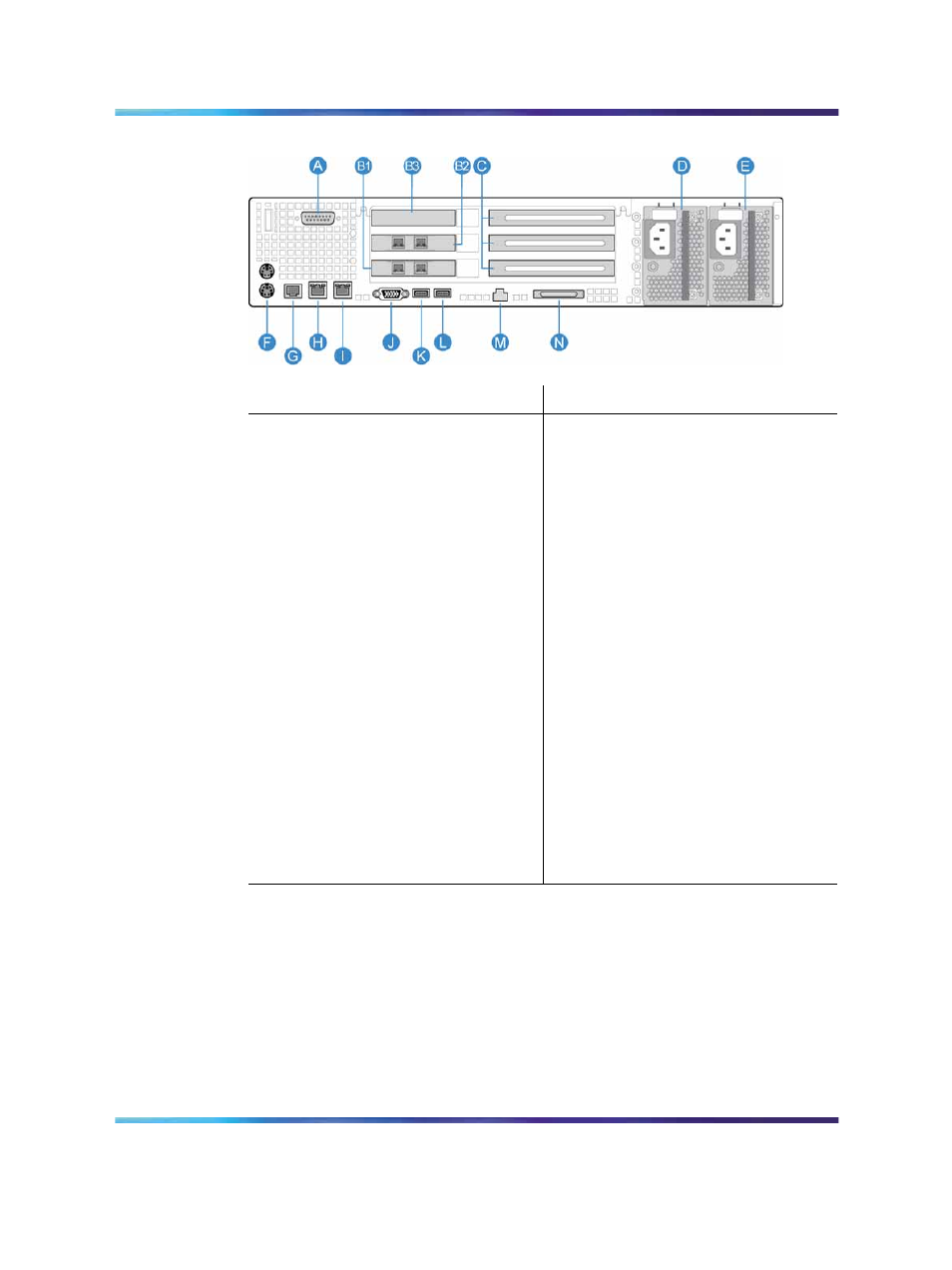

Back panel controls and features
Label Control or feature Label Control or feature
A DB15 Telco alarm connector
(not used) G Rear connection to Comm 2
serial port
B1 PCI card #3 dual NIC for High
Availability (HA) configuration.
For more information about
HA, see High Availability:
Installation and Configuration
(NN44200-311). H RJ45 NIC 1 connector
B2 PCI card #2 dual NIC for
HA configuration. For more
information about HA, see High
Availability: Installation and
Configuration (NN44200-311). I RJ45 NIC 2 connector
B3 RAID J Video connector
C PCI full-size card brackets.
Numbered (1, 2, 3) from top to
bottom. K USB 1
D Power Supply 1 L USB 0
E Power Supply 2 M Server management LAN port
F PS/2 mouse and keyboard
connectors N External SCSI tape drive
PCI riser assembly
The PCI riser assembly holds the PCI add-in cards; MPB96, RAID and
dual Network Interface Card (NIC). For more information about your
configuration, see
"Valid PCI card configurations" (page 16) . The following
diagram shows the PCI riser held above the server.
