1005r Server features 13

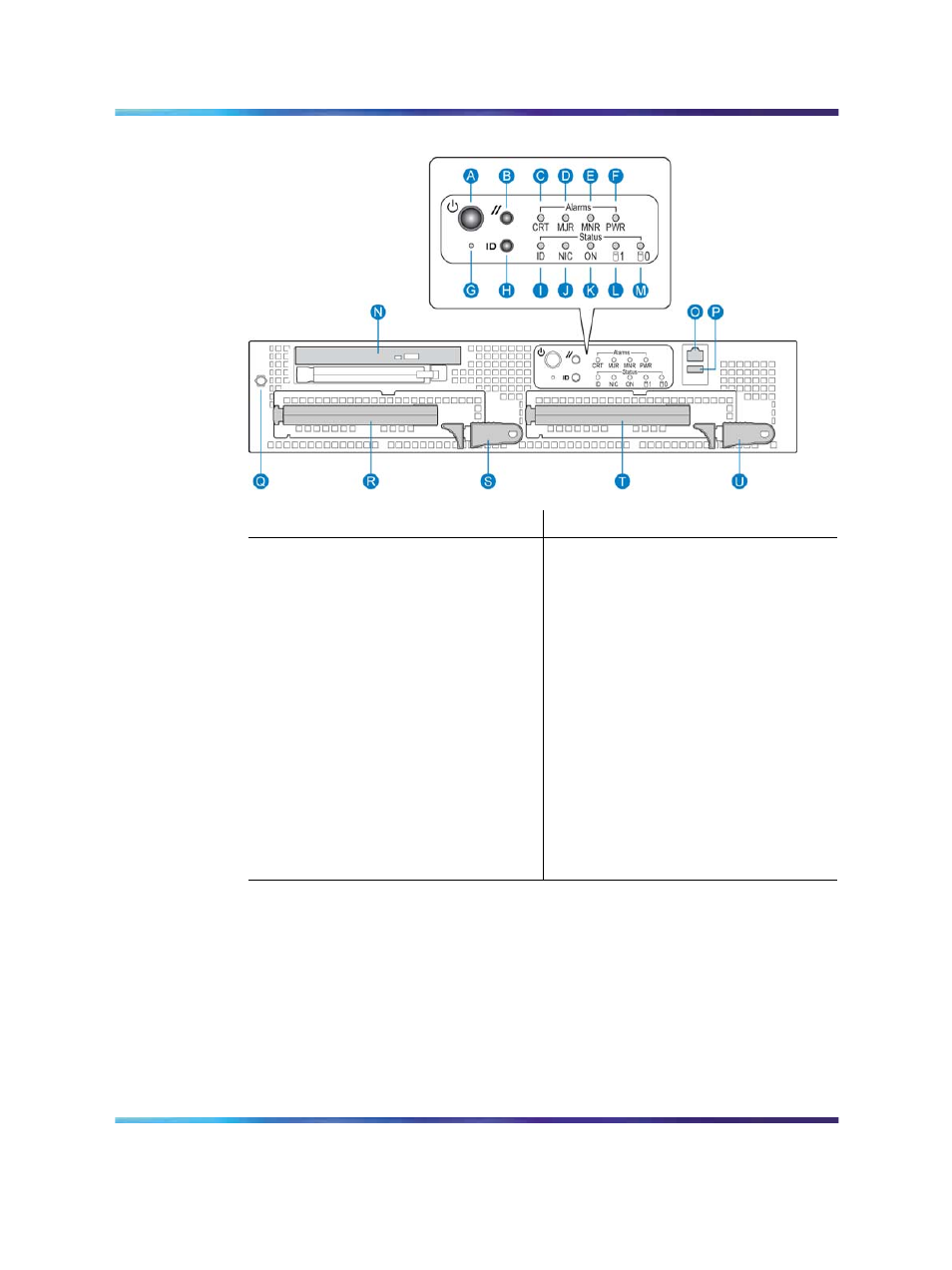

Front panel controls
Label Control or feature Label Control or feature
A Power switch L HDD1 activity
B Reset switch M HDD0 activity
C Critical alarm LED N DVD/CD/CDRW LED and eject
button
D Major alarm LED O Front serial port
E Minor Alarm LED P USB 2
F Power Alarm LED Q Electrostatic Discharge (ESD)
connection
G NMI switch (not used) R Hard drive 1 pull handle
H ID switch S Hard drive 1 release lever
I ID LED T Hard drive 0 pull handle
J NIC activity LED U Hard drive 0 release lever
K Status LED
Back panel controls and features
The following diagram shows the back panel controls and features. On
the right are the AC power supply banks. The PCI card brackets are in
the middle of the back panel while the connectors and ports are along the
bottom and left side.
