MCS 5100 RTP Media Portal Basics
17 Copyright © Nortel Networks Limited 2006
illustrates media stream interfaces in a dual-network deployment
between a Protected MCS Network and Public Network.

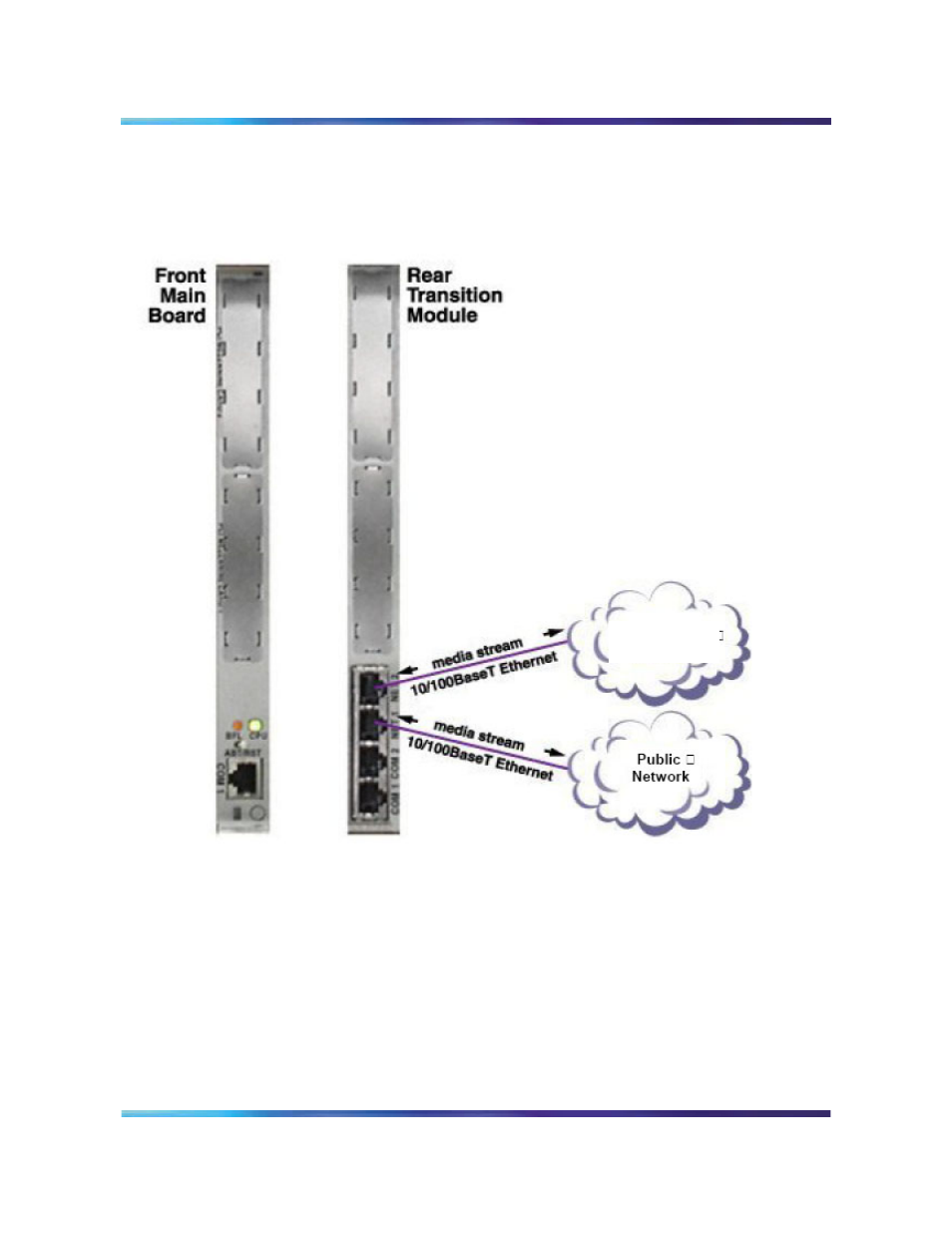

Figure 9 Media stream interface – MCPN765 Media Blade to RTP Media Portal
A Media Blade in the RTP Media Portal consists of the following
input/output cards:
• MCPN765 Front Main Board
• TM-PIMC-0101 Rear Transition Module
There is a 1:1 relationship between the Front Card and Rear Transition
Module.
Protected
MCS Network
