Installing the drives in your GigaStor
Chapter 2 Installing Your GigaStor
51
rev. 1
Figure 31 shows how the drive numbers correspond to slot
locations.

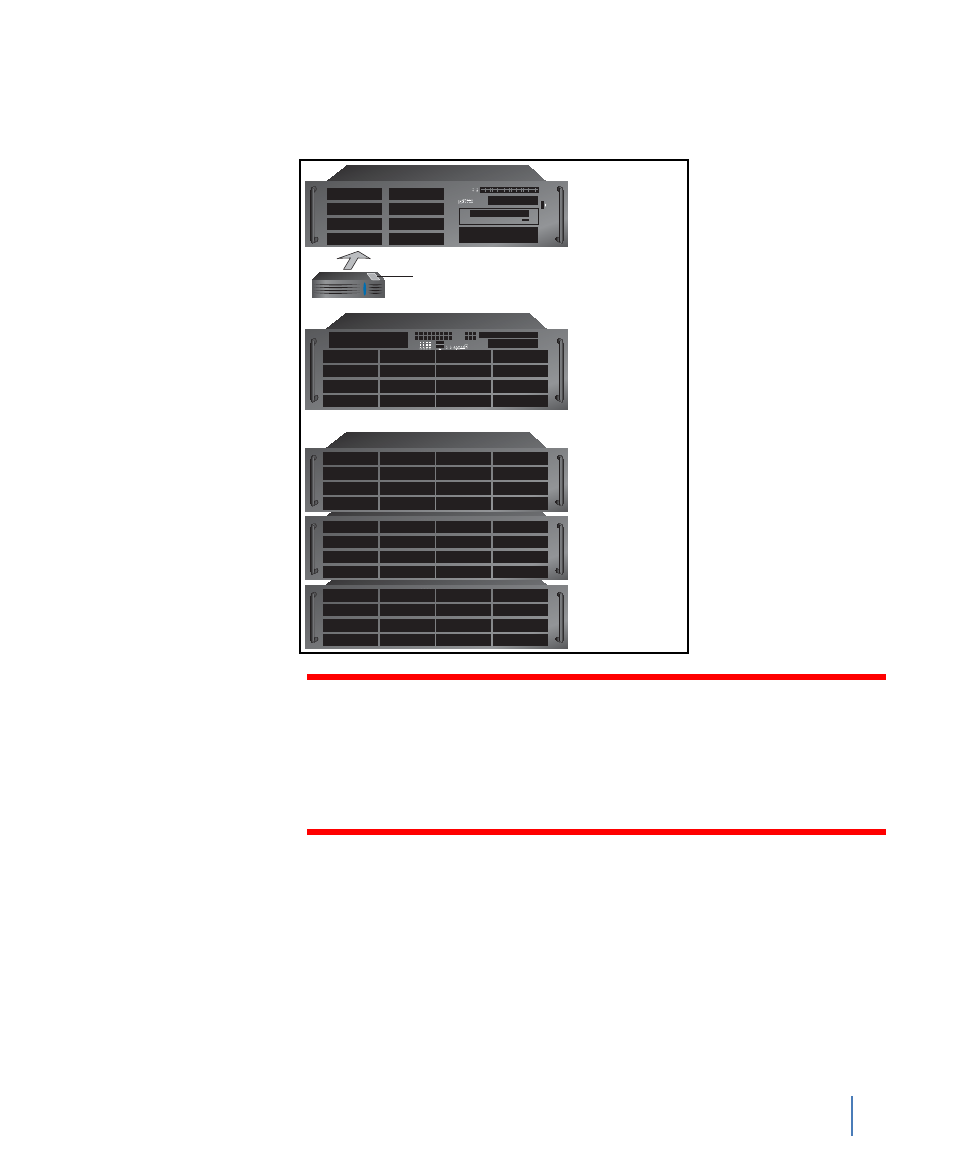

Figure 31 GigaStor drive locations
C AUTION G IGA S TOR
E XPANDABLE D RIVE
L OCATION
It is important that you install the drives in the correct drive
slot, and in correct expansion unit if you have a GigaStor
Expandable. Failure to install the drives in the proper order
will result in poor read/write performance or possibly RAID
array failure.
3 Push the latch in all the way until it clicks.
4 Repeat until all drives are in the chassis. For the GigaStor
Expandable continue with B1-B16 and C1-C16 as appropriate.
5 If you are installing a GigaStor Expandable, you must also connect
the cables. See “Connecting the GigaStor Expandable to the
expansion units” on page 52. Otherwise, continue with “Installing
the GigaStor and connecting the cables” on page 19.
A7
A5
A3
A1 A8
A6
A4
A2
1 2 !
Drive ID sticker A1
A13
A9
A5
A1
A16
A12
A8
A4
A14
A10
A6
A2
A15
A11
A7
A3
13 9
5
1 14
10 6
2 15
11 7
3 16
12 8
4 1 2 !
GigaStor (8 drive)
GigaStor (16 drive)
GigaStor Expandable
