Tapping a WAN connection
Chapter 2 Installing Your GigaStor
49
rev. 1

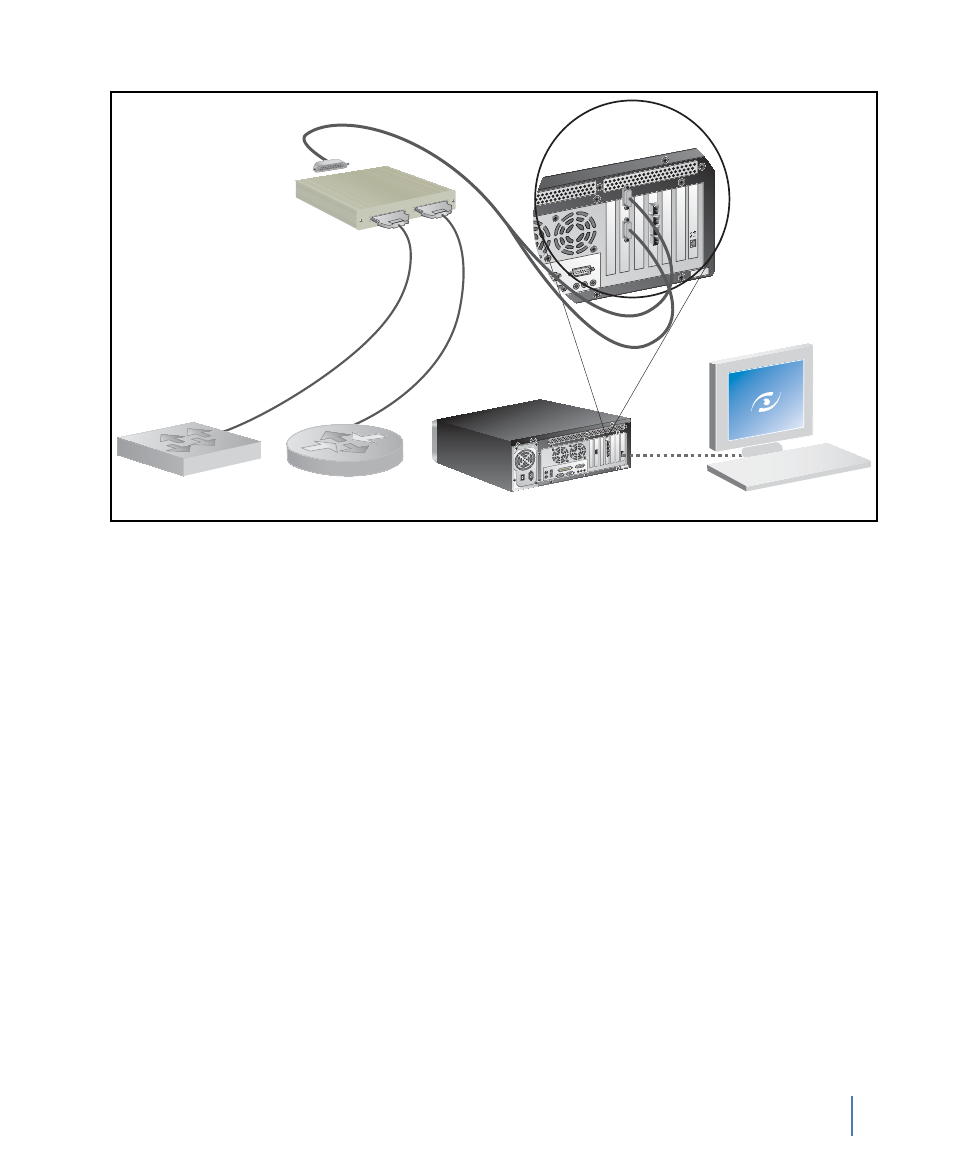

Figure 30 WAN HSSI
Router (DCE) CSU/DSU (DTE)
10/100/1000
NIC for TCP/IP
GigaStor or
GigaStor Expandable
HSSI TAP
Observer Console
HSSI IN
HSSI OUT
