Using the Observer console locally on the GigaStor
Chapter 7 Observer on the GigaStor 108
rev. 1
Using the Observer console locally on the GigaStor
Depending on how you want or need to use Observer it can be either
a graphic console to help you analyze your network data or it can be a
probe to capture data and to which other Observer consoles can
connect. Observer cannot simultaneously be a console and a probe.
In some situations you may want to run Observer locally on your
GigaStor instead of using a separate system. This is not the default
behavior for a GigaStor. This section describes how to stop the probe
that runs as a Windows service and launch Observer.
On the local GigaStor system
1 Right-click the Probe Service Configuration Applet in the system
tray and choose Open Probe Configuration.

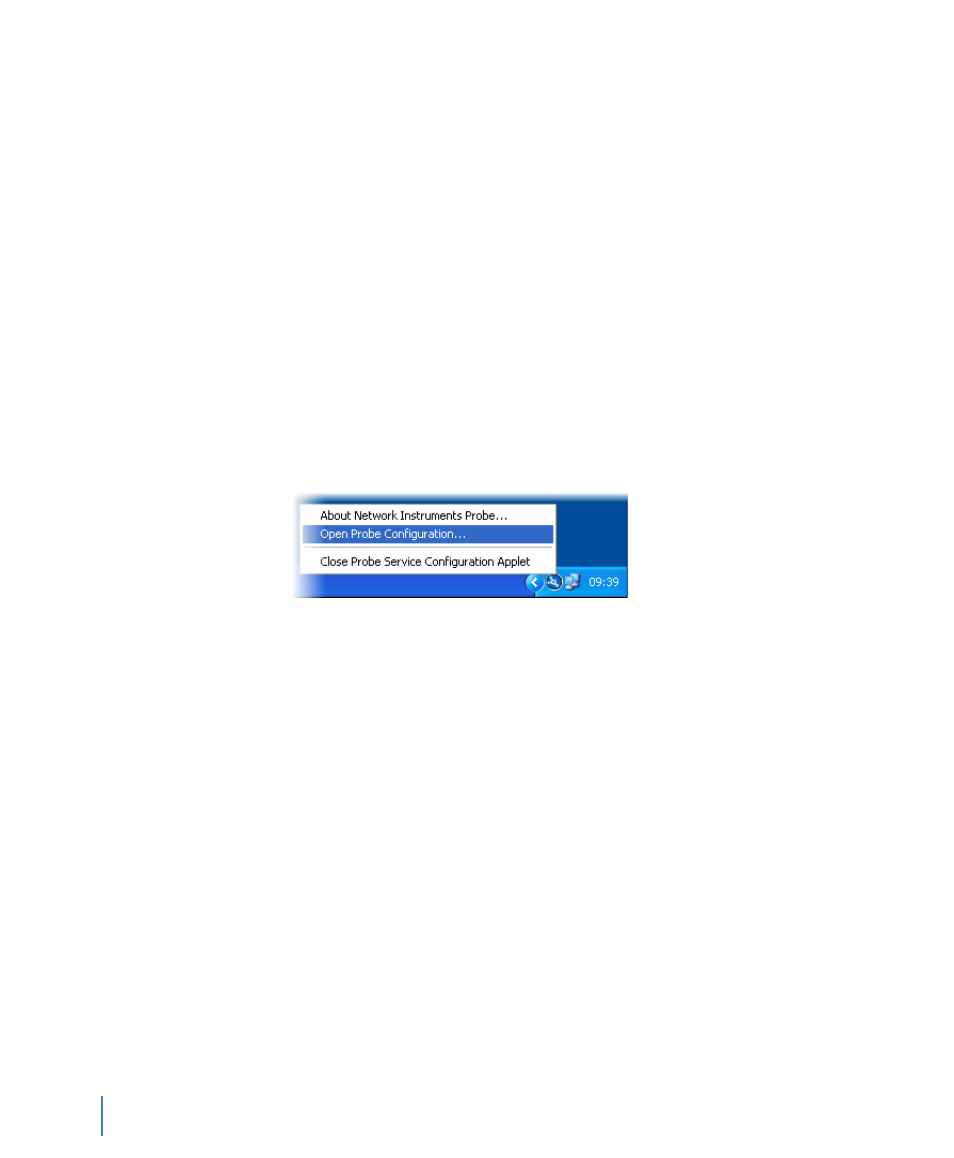

Figure 73 Probe Service Configuration Applet
2 The Probe Administration window opens. Click the Probe
Options tab (Figure 74).
