Installation
2-3 3162-A2-GB20-30 March 1999
SNMP or Telnet Connection Examples
The DSU/CSU can be connected to an SNMP or Telnet system in a number of
ways. Some examples include:
H Directly connecting the COM port to the SNMP or Telnet device (Figure 2-4).
H
Connecting the COM port to a network device (e.g., a router) (Figure 2-5).
H Connecting the COM port or the AUX port to an external LAN Adapter for
Ethernet connectivity (
Figure 2-6 ).
H
Daisy chaining the COM port of one device to the AUX port of the other
(
Figure 2-7 ).
H Remotely accessing the DSU/CSU through the Facility Data Link (FDL) or the
synchronous data port’s Embedded Data Link (EDL) (
Figure 2-8 ).
NETWORK
ETHERNET
PPP/SLIP
496-15221
DSU/CSU
LAN
ROUTER

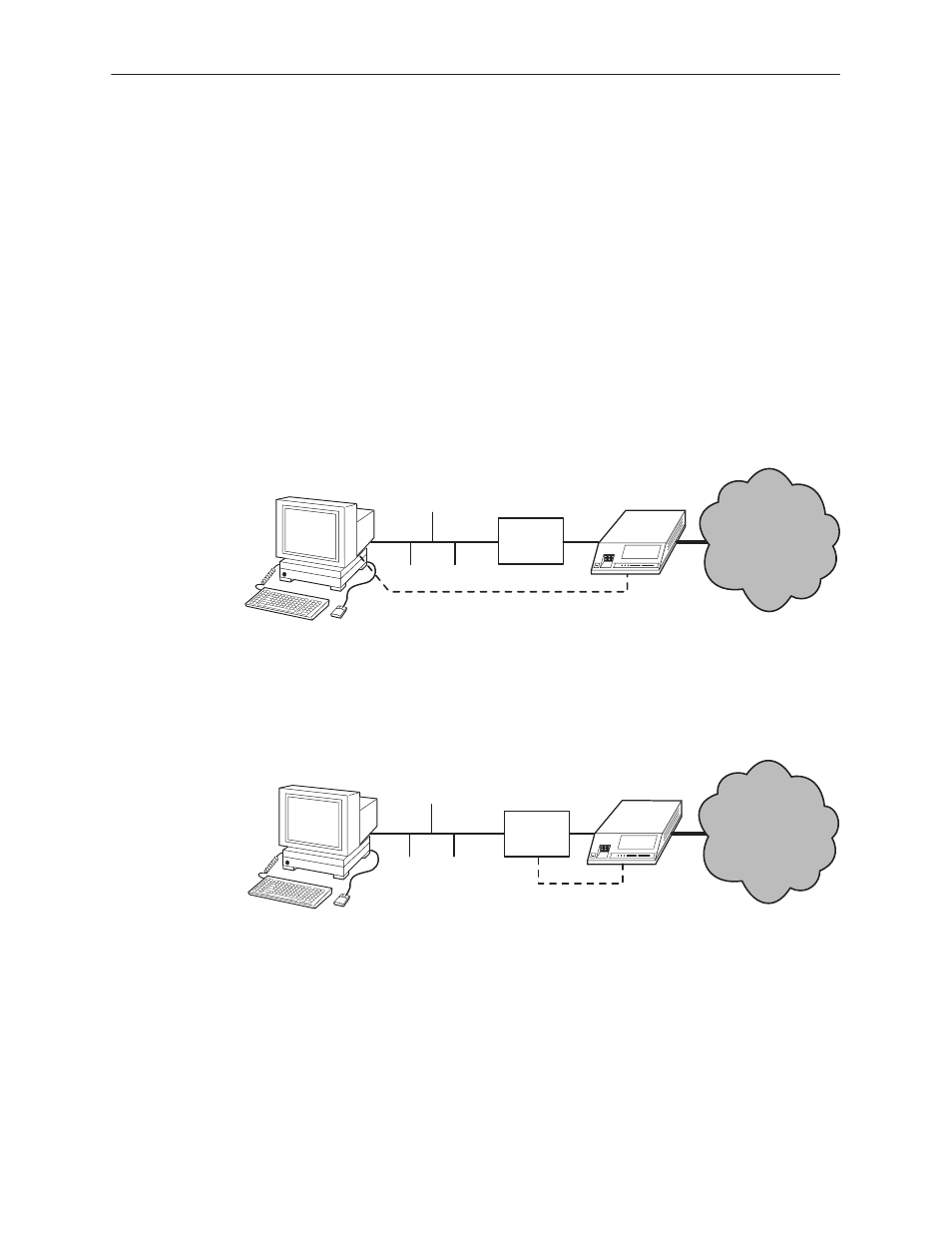

Figure 2-4. Direct Connection
NETWORK
ETHERNET
PPP/SLIP
496-15222
DSU/CSU
LAN
ROUTER
Figure 2-5. Connection through a Router
