SCS48C/SCS32C/SCS16C/SCS8C Starter Kit (Adapters/Cable)
390 IOLAN SDS/SCS/STS User’s Guide, Version 3.6
RJ45F to DB9M DTE Crossover Adapter

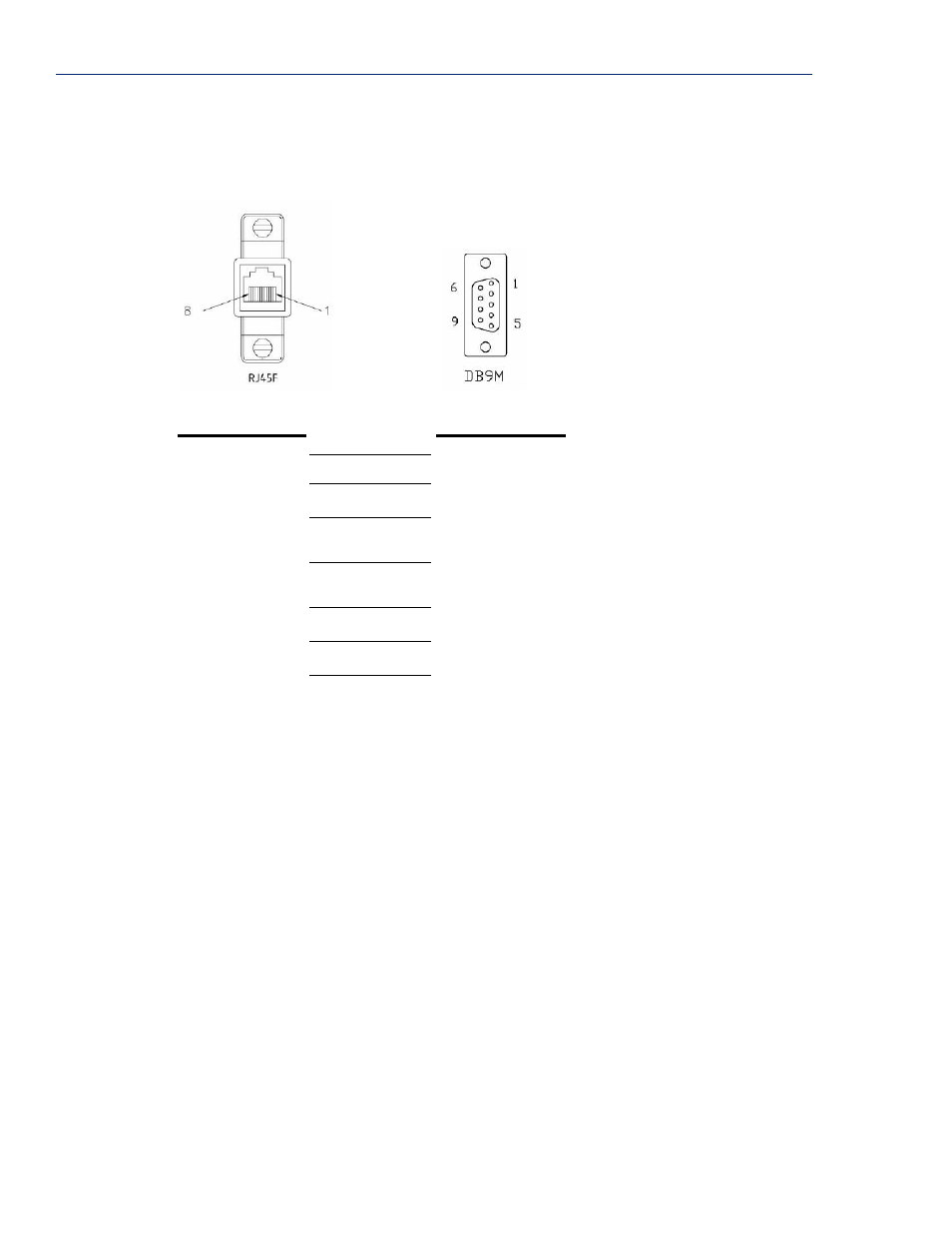

The following diagram shows the IOLAN RJ45JDB9M crossover adapter pinouts. This is model
number DBA0021C.
RJ45F DB9M
(TxD) 3 2 (RxD)
(RxD) 6 3 (TxD)
(GND) 4
(GND) 5 5 (GND)
(DTR) 2 1 (DCD)
6 (DSR)
(DSR) 7 4 (DTR)
(RTS) 1 8 (CTS)
(CTS) 8 7 (RTS)
