MAINTENANCE AND LUBRICATION
Lubrication Recommendations
Oil and Filter Change (Magnum 500)

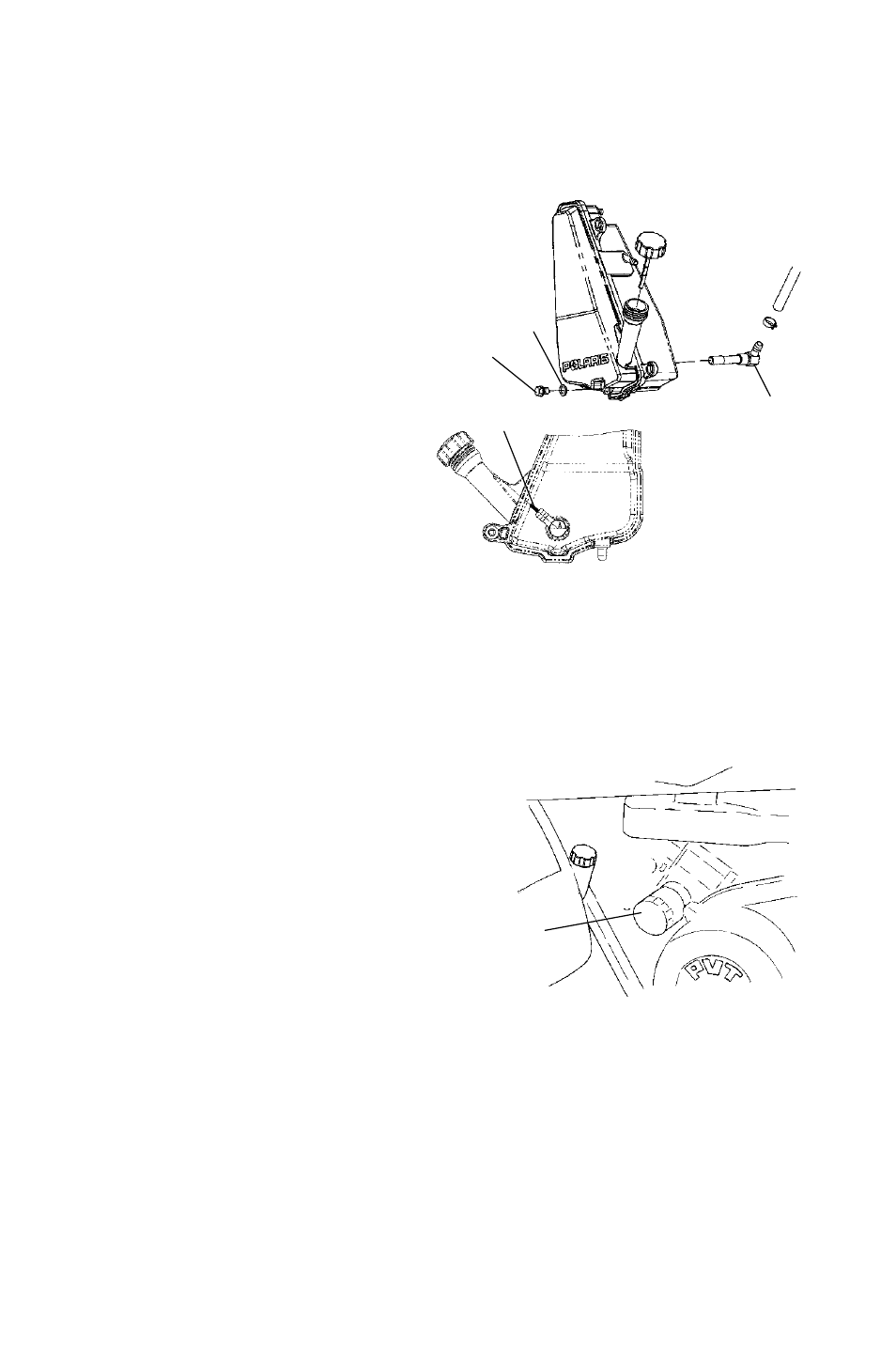

4. Place a drain pan beneath the oil
tank and remove the drain plug (1).
Allow the oil to drain
completely.
5. Install a new sealing washer (2)
on the oil drain plug.
NOTE: The sealing
surfaces on the drain plug
and the oil tank should be
clean and free of burrs, nicks
or scratches.
6. Reinstall the drain plug and
torque to 14-17 ft. lbs.
(19-23 Nm).
7. Disconnect the lower oil
delivery hose and remove the
screen fitting (3) from the oil tank. Clean and reinstall the fitting,
then torque to 25 ft. lbs. (34 Nm). Reattach the oil line. NOTE:
The fitting threads must be sealed with Loctitet PST 505 or PTFE
seal tape. The fitting must also line up with the mark (4) on the
rear side of the oil tank.
8. Place shop towels beneath the
oil filter. Using an oil filter
wrench, turn the filter (5)
counterclockwise and remove.
9. Lubricate the gasket on the
new filter with a film of new
engine oil. Check to make
sure the gasket is in good
condition. Also make sure the
gasket from the old filter is not
still on the engine.
10. Install the new filter and tighten by
hand 1/2 to 3/4 turn after gasket contacts the engine.
11. Approximately one cup of oil will remain in the crankcase. To
drain, remove the drain plug on the lower right side of the
crankcase.
1
2
3
4
5
