Serial port configuration task list

56

OnSite 2800 Series User Manual

4 • Serial port configuration

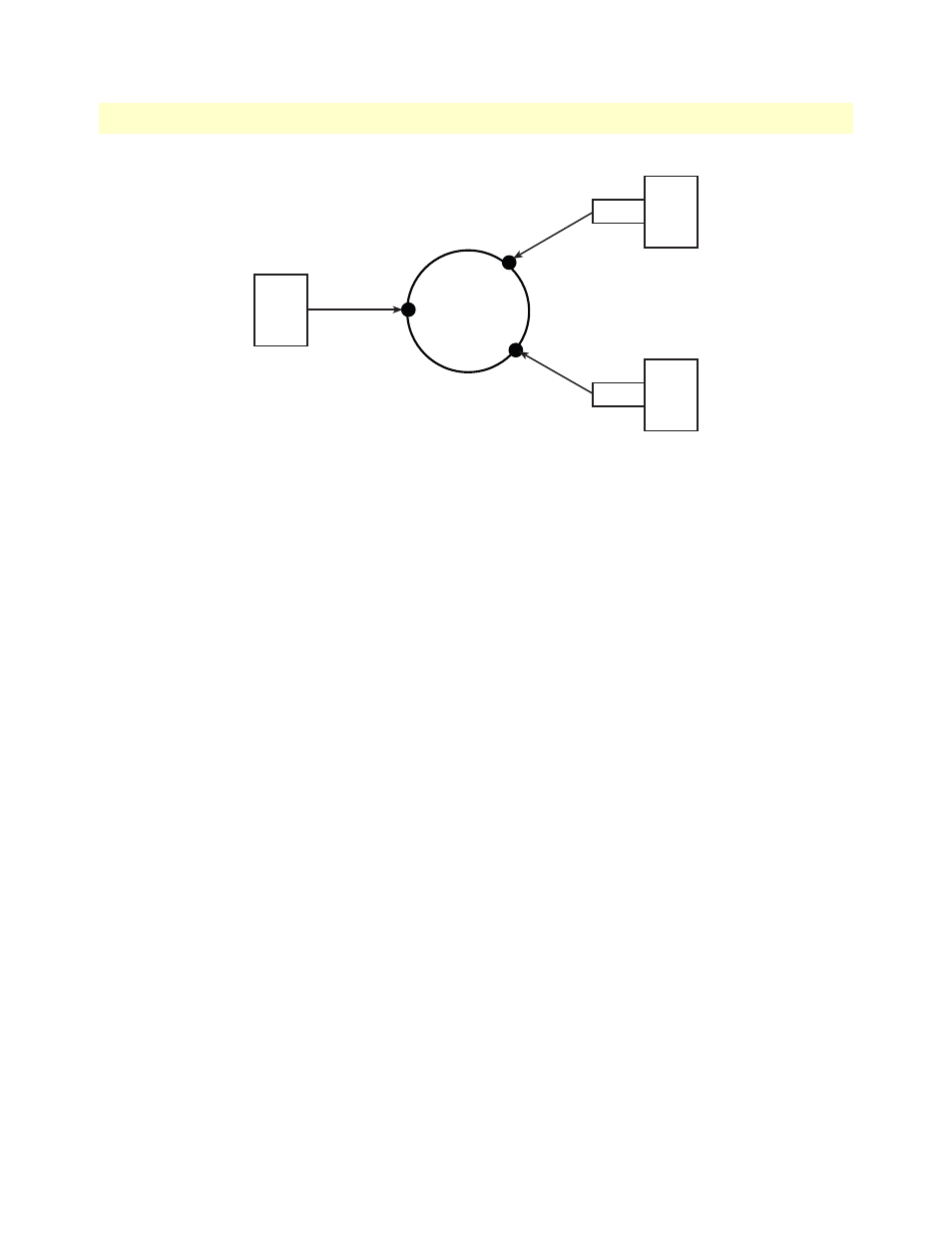

Figure 14. IP Context with logical IP interfaces bound to Ethernet port, serial port PVC 1 and PVC 2

The related IP, serial interface and Frame Relay configuration procedure is listed below. Where necessary,
comments are added to the configuration for better understanding.

1. Enter the configuration mode.

2800>enable
2800#configure

2. Set up the IP interface configuration first. Be aware that not all of the necessary settings are listed below.

2800(cfg)#context ip router
2800(ctx-ip)[router]#interface external
2800(if-ip)[external]#interface internal
2800(if-ip)[internal]#interface lan
2800(if-ip)[lan]#exit
2800(ctx-ip)[router]#interface internal
2800(if-ip)[internal]#ipaddress 192.168.3.1 255.255.255.0
2800(if-ip)[internal]#interface external
2800(if-ip)[external]#ipaddress 192.168.2.1 255.255.255.0
2800(if-ip)[external]#interface lan
2800(if-ip)[lan]#ipaddress 192.168.1.1 255.255.255.0

3. Configure the serial interface settings.

2800(cfg)#port serial 0 0
2800(prt-ser)[0/0]#shutdown
2800(prt-ser)[0/0]#encapsulation framerelay

4. Configure the Frame Relay. You must thus change to the Frame Relay configuration mode. Use the ser-

vice-policy profile defined above to give voice priority over data.

2800(prt-ser)[0/0]#framerelay
2800(frm-rel)[0/0]#lmi-type ansi
2800(frm-rel)[0/0]#keepalive 20

Context

IP

“router”

192.168.2.1

IP interface

external

PVC 1

Port

Serial

0 0

192.168.3.1

Port

Ethernet

0 0

IP interface

lan

192.168.1.1

PVC 2

Port

Serial

0 0

IP interface

external
