Installing the VPN router 37
OnSite 2800 Series User Manual 2 • Hardware installation
3. Verify that the AC power cord included with your VPN Router is compatible with local standards. If it is
not, refer to chapter 10, “Contacting Patton for assistance” on page 114 to find out how to replace it with
a compatible power cord.
4. Connect the male end of the power cord to an appropriate power outlet.

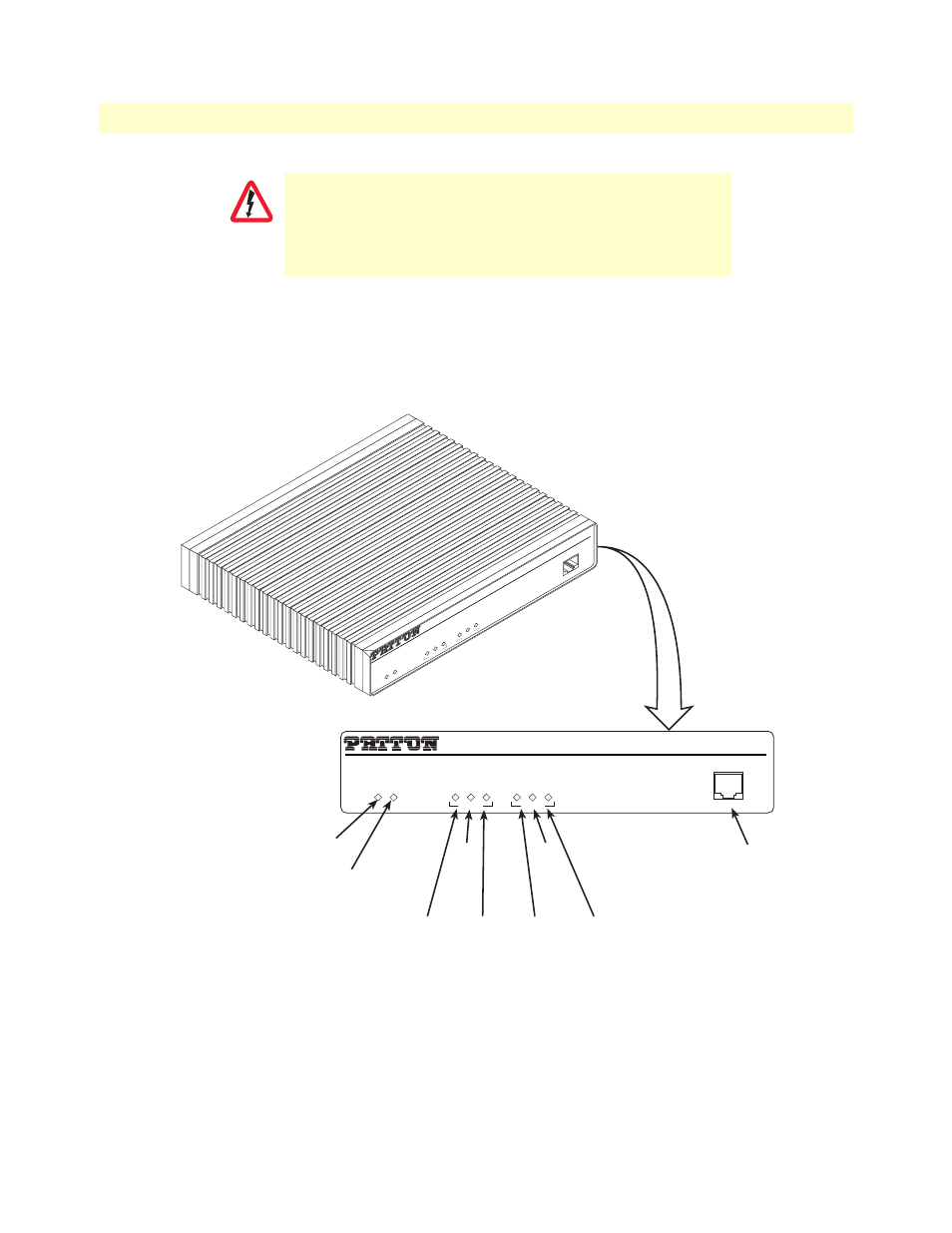

Figure 8. VPN Router front panel LEDs and Console port locations (OnSite 2835 shown)
5. Verify that the green Power LED is lit (see figure 8 ).
Congratulations, you have finished installing the OnSite VPN Router! Now go to chapter 3, “Getting started
with the OnSite Managed VPN Router” on page 38.
The UI and EUI power supplies automatically adjust to accept an
input voltage from 100 to 240 VAC (50/60 Hz).
Verify that the proper voltage is present before plugging the
power cord into the receptacle. Failure to do so could result in
equipment damage.
CAUTION
Link 100M Activity
Enet 0 Console
IPLink VPN Router
Run Link 100M Activity
Enet 1
Power
Link
100M
Activity
Enet 0
IPLink VPN
Router
Run
Link
100M
Activity
Enet 1
P ower
Console
Console
Console
port
Power
Enet 0
Link
Run
Enet 0
100M
Enet 0
Activity
Enet 1
Link
Enet 1
100M
Enet 1
Activity
