Installing the VPN router
31
OnSite 2800 Series User Manual
2 • Hardware installation
connected to the OnSite’s Ethernet ports (see
for port pin-out listing) via a cable terminated with RJ-45
plugs.
Note
Pins not listed are not used.

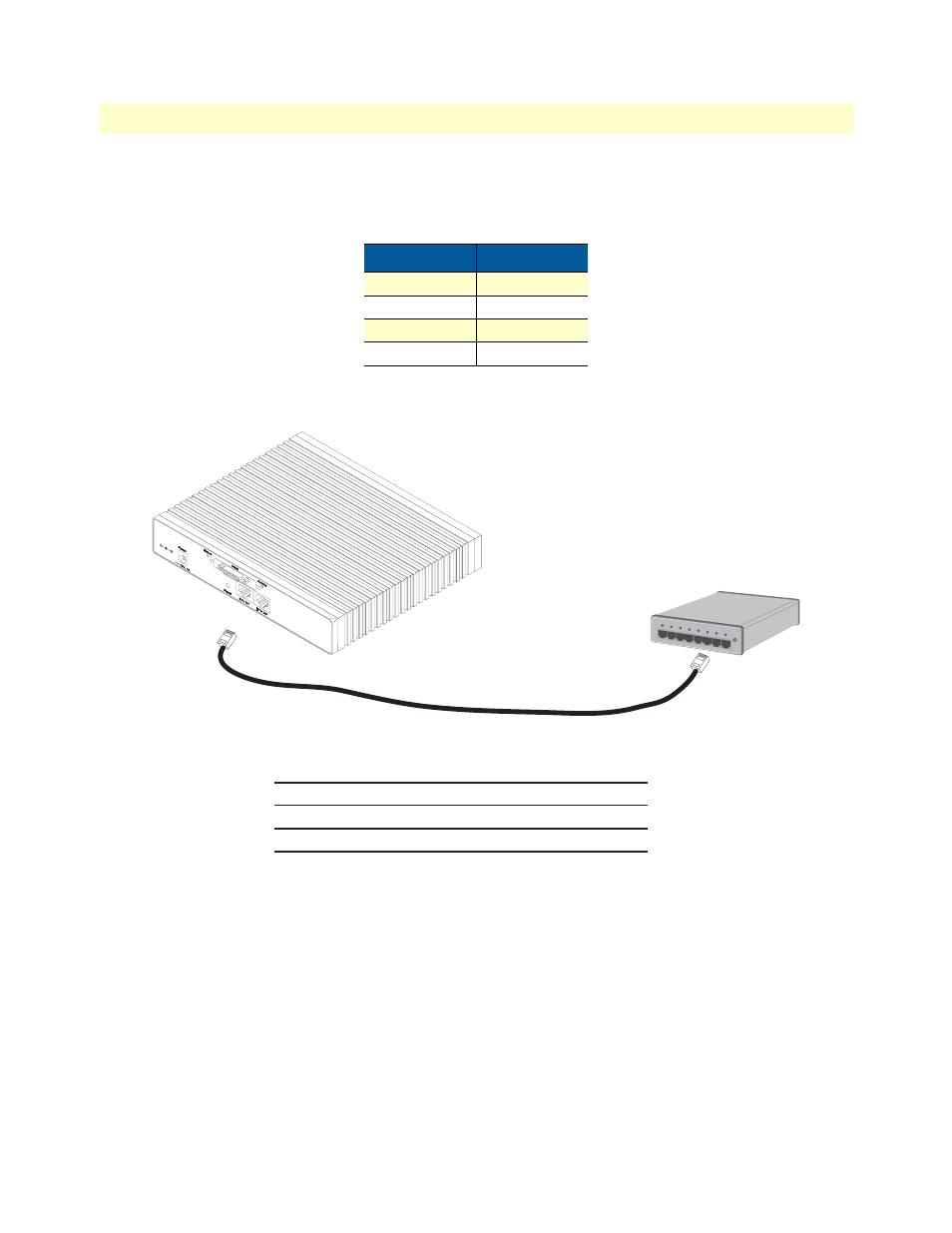

Figure 1. Connecting an OnSite 2800 Series device to a hub
Installing the serial WAN cable
The OnSite 2800 Series is available with the following serial interfaces:
•
V.35 (DB-25)—Model 2835, see section
“Installing the V.35 interface cable”
on page 32 for details on
installing the interface cable
•
X.21 (DB-15)—Model 2821, see section
“Installing the X.21 interface cable”
on page 33 for details on
installing the interface cable
•
T1/E1 (RJ48C connectors)—Model 2803, see section
“Installing the T1/E1 twisted pair cables”
for details on installing the twisted pair cable
Table 5. Ethernet 10/100Base-T (RJ-45) port pin-outs
Pin
Signal
1
TX+
2
TX-
3
RX+
6
RX-
Hub
Straight-through cable
RJ-45, male
Tx+
Tx-
Rx+
Rx-
1
2
3
6
RJ-45, male
1 Rx+
2 Rx-
3 Tx+
6 Tx-
