Introduction 125
OnSite 2800 Series User Manual C • Cabling
Introduction
This section provides information on the cables used to connect the OnSite to the existing network infrastruc-
ture and to third party products.
Serial console
The OnSite can be connected to a serial terminal over its serial console port, as depicted in figure 25 .

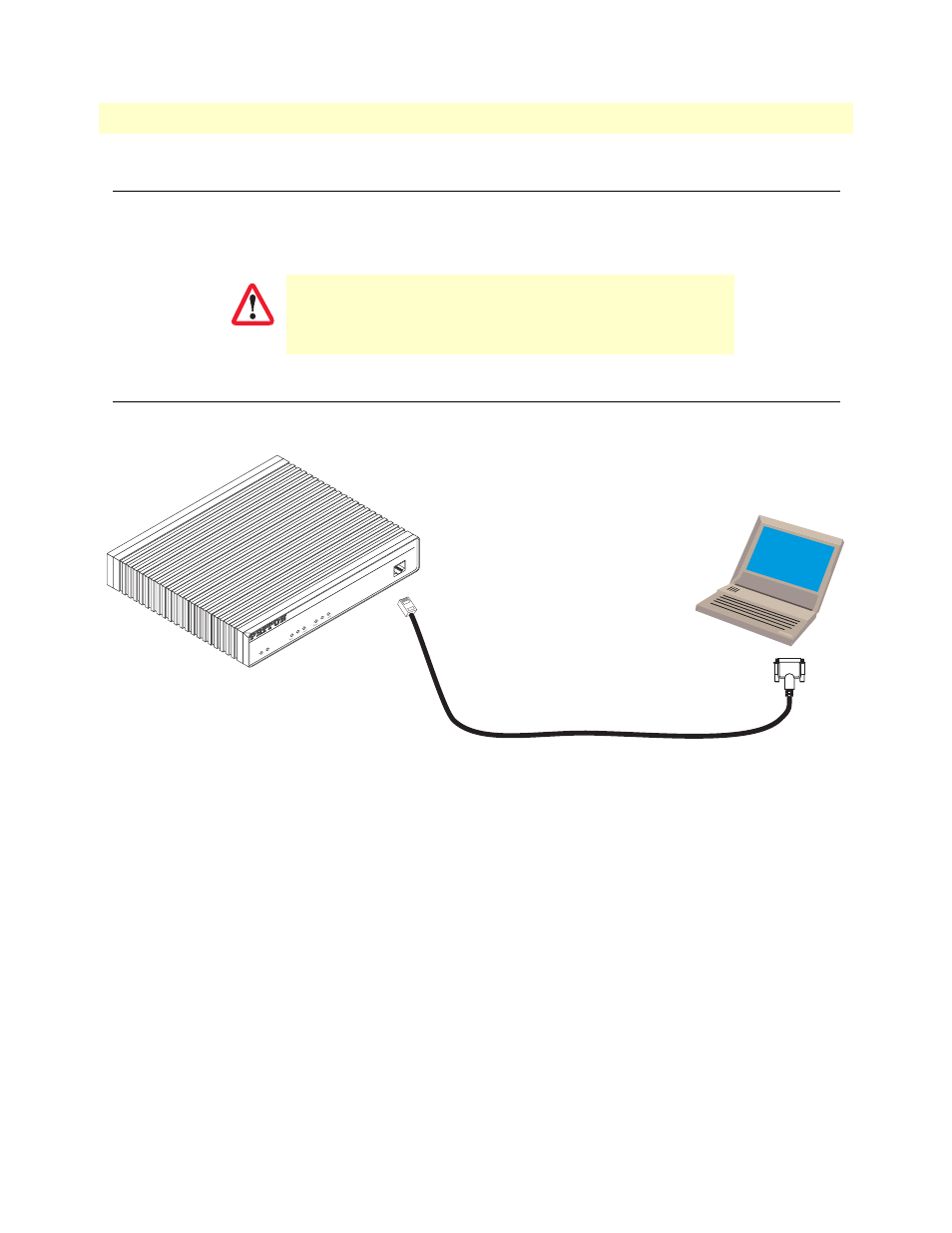

Figure 25. Connecting a serial terminal
Note See section “Console port, RJ-45, EIA-561 (RS-232)” on page 129
for console port pin-outs.
The interconnecting cables must be acceptable for external use
and must be rated for the proper application with respect to volt-
age, current, anticipated temperature, flammability, and
mechanical serviceability.
CAUTION
Link
100M Activity
En et 0
IPLink VPN
Router
Run
Link
100M Activity
En et 1
P ower
Console
Serial Terminal
Note A Patton Model 16F-561 RJ45 to DB-9 adapter is included with
each IPLink 2800 Series device
