Status LEDs 113
OnSite 2800 Series User Manual 9 • LEDs status and monitoring
Status LEDs
This chapter describes OnSite gateway router front panel LEDs. Figure 24 shows OnSite 2800 Series LEDs.
LED definitions are listed in table 14 on page 113.

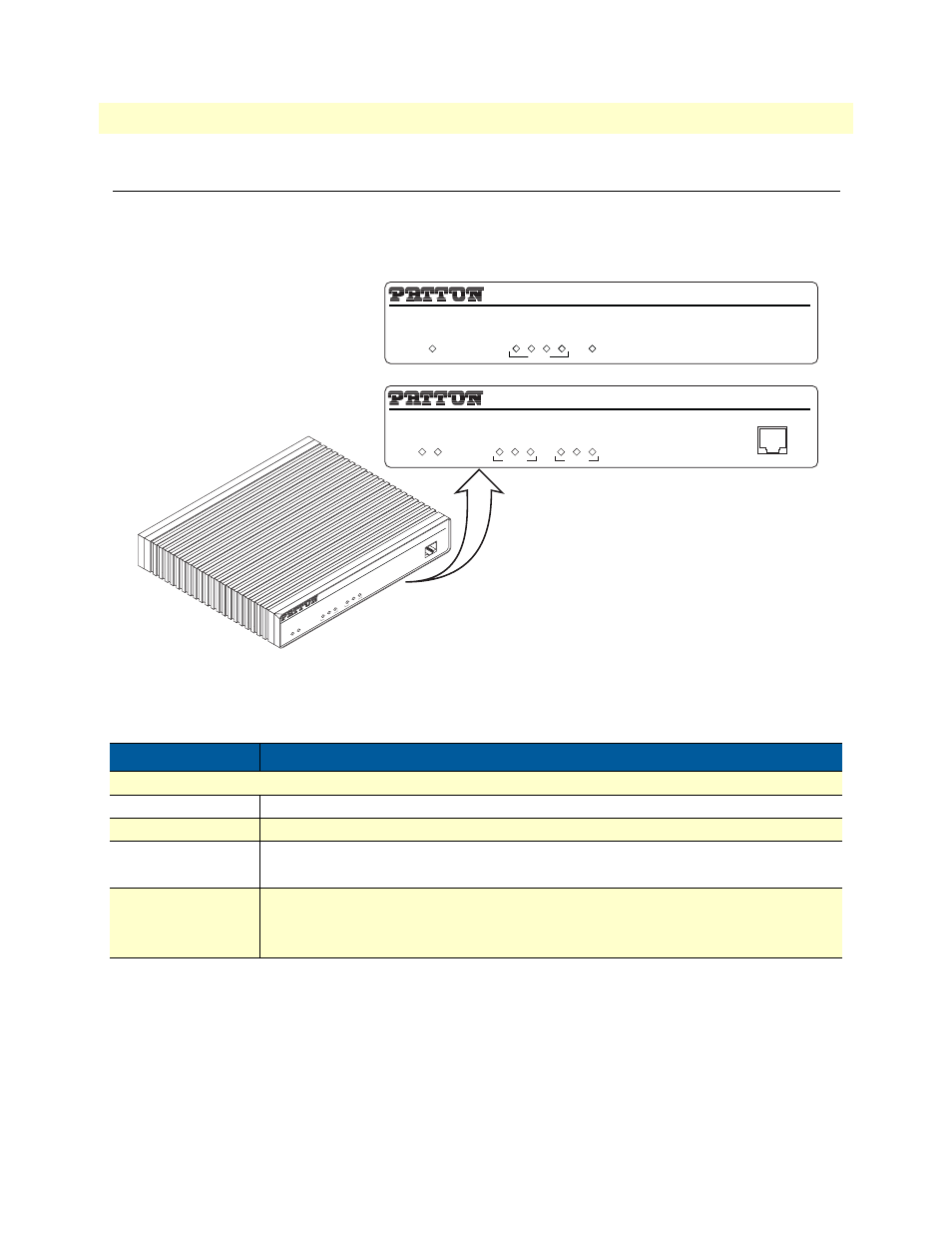

Figure 24. Examples of OnSite 2800 Series front panels
Table 14. OnSite LED Indications
LED Description
Note If an error occurs, all LEDs will flash once per second.
Power When lit, indicates power is applied. Off indicates no power applied.
Run When lit, indicates normal operation. Flashes once per second during boot (startup).
Serial • STATUS: Lit when serial link is up.
• ACTIVITY: Flashes when serial data is transmitted or received from the unit.
Ethernet (each port) • Link: Lit when Ethernet link is up.
• 100M: On when 100-Mbps Ethernet is selected.
• Activity: Flashes when data is received or transmitted from the unit to the LAN.
IPLink VPN Router
Link
100M Activity
En et 0
IPLink VPN
Router
Run
Link
100M
Activity
En et 1
P ower
Console
Link 100M Activity
Enet 0
Power
Console
IPLink VPN Router
Run Link 100M Activity
Enet 1
IPLink 2805
IPLink 2800
LAN WAN
1 2 3 4
Power
