Introduction 39
OnSite 2800 Series User Manual 3 • Getting started with the OnSite Managed VPN Router
Introduction
This chapter leads you through the basic steps to set up a new OnSite VPN Router. Figure 9 show the main
steps for setting up a new OnSite VPN Router.

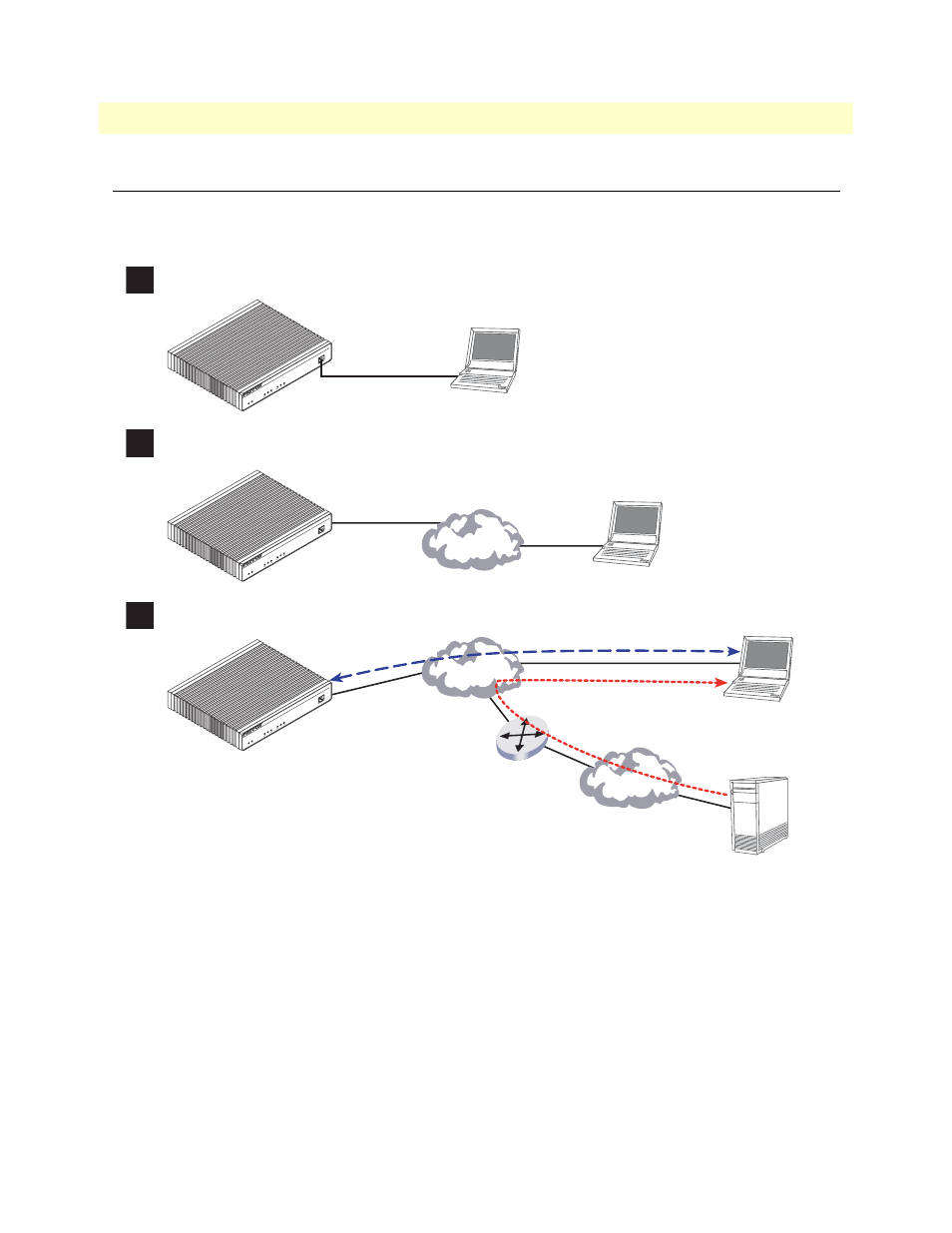

Figure 9. Steps for setting up a new OnSite VPN Router
Link 100M Activity
En et 0
IPLink VPN
Router
Run
Link 100M Activity
En et 1
Po w e r
Console
1
Configure IP address
2
Connect the IPLink VPN Router to the network
3
Load configuration
Console port
Serial
interface
PC or workstation
with VT-100
emulation terminal
Ethernet interface
ETH0
Network
interface
PC or workstation
or VT-100 emulation
terminal Network
2. Modify configuration
Network
Internet
3. Load configuration
1. Download configuration example
Patton Web server
with configuration examples
Link 100M Activity
En et 0
IPLink VPN
Router
Run
Link 100M Activity
En et 1
P ower
Console
Link 100M Activity
En et 0
IPLink VPN
Router
Run
Link 100M Activity
En et 1
P ower
Console
Note You can manually configure the IPLink
Router. You do not have to load a
configuration file.
