Ethernet 10Base-T and 100Base-T
126
OnSite 2800 Series User Manual
C • Cabling
Ethernet 10Base-T and 100Base-T
Ethernet devices (10Base-T/100Base-T) are connected to the OnSite over a cable with RJ-45 plugs. Use a
cross-over cable to a host, or a straight cable to a hub. See
(host) and
on page 127 (hub) for
the different connections.

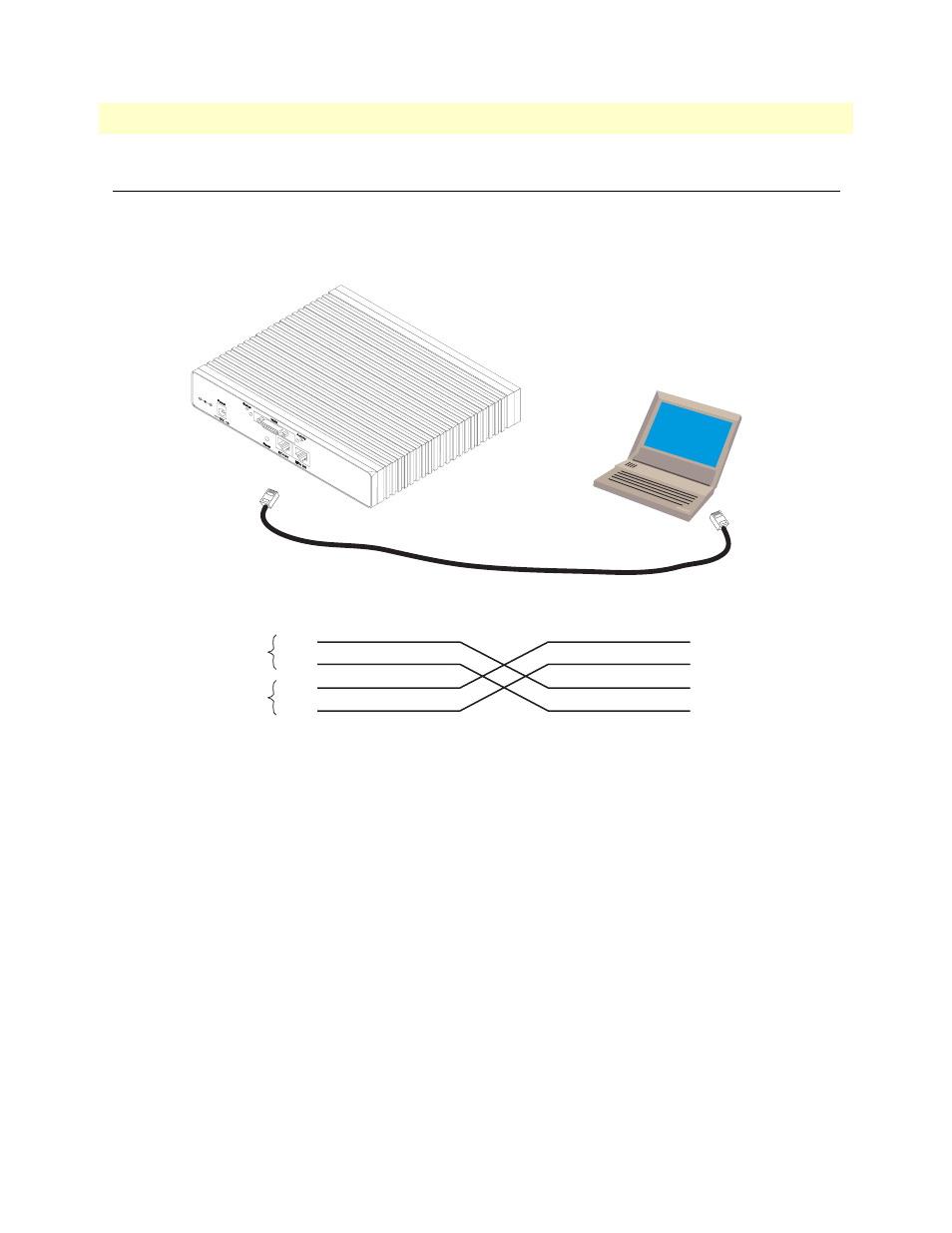

Figure 26. Ethernet cross-over
Host
Cross-over cable
RJ-45, male
Tx+
Tx-
Rx+
Rx-
1
2
3
6
RJ-45, male
1 TX+
2 TX-
3 RX+
6 RX-
Twisted pair 1
Twisted pair 2
