VLAN(s) indicated by the frame tag. However, when this switch receives
an untagged frame from a VLAN-unaware device, it first decides where to
forward the frame, and then inserts a VLAN tag reflecting the ingress
port’s default VID.

Displaying Basic VLAN Information

The VLAN Basic Information page displays basic information on the
VLAN type supported by the switch.

Field Attributes

•

VLAN Version Number* – The VLAN version used by this switch
as specified in the IEEE 802.1Q standard.

•

Maximum VLAN ID – Maximum VLAN ID recognized by this
switch.

•

Maximum Number of Supported VLANs – Maximum number of
VLANs that can be configured on this switch.

*Web Only

Web – Click VLAN, 802.1Q VLAN, Basic Information.

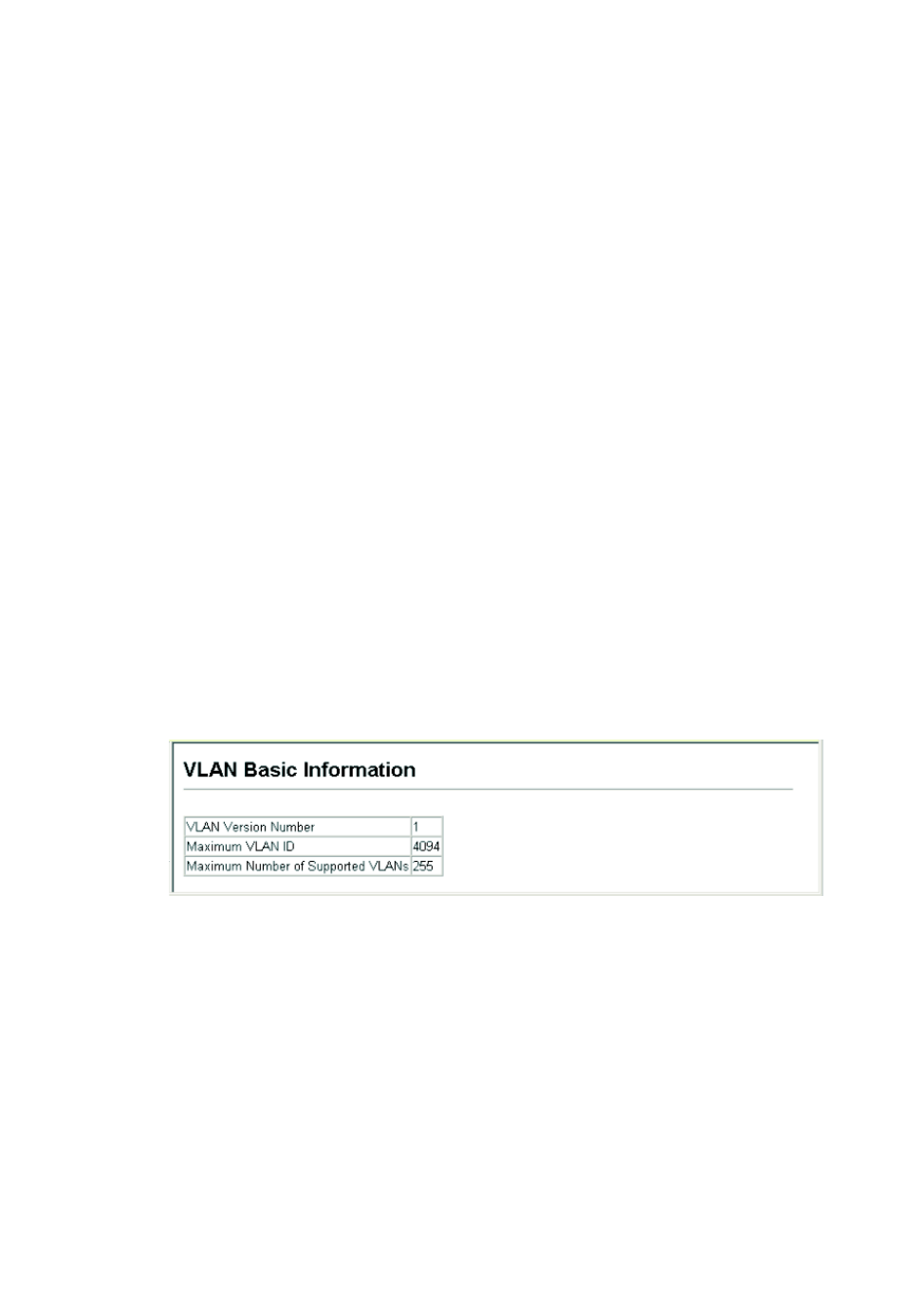

Figure 3-69. Displaying Basic VLAN Information
