S UPER P4SCT/P4SCT+/P4SCT+II User's Manual
4-10
Resources Controlled By
This setting allows BIOS to automatically configure all boot and Plug and
Play compatible devices. If you choose Auto, you cannot select the IRQ,
Onboard CSA LAN Boot
Select "Enabled" to enable the Boot ROM embedded in the Onboard CSA
LAN Chip. The options are: "Enabled" and "Disabled".
DMA and memory base address fields because BIOS automatically assigns
them. The options are "Auto " and "Manual".
4-4.5 Console Redirection
Console Redirection
Select "Enabled" to redirect Console via COM Port. Select "Disabled" to
redirect Console when the keyboard is absent. The options are: "Enabled"
and "Disabled".

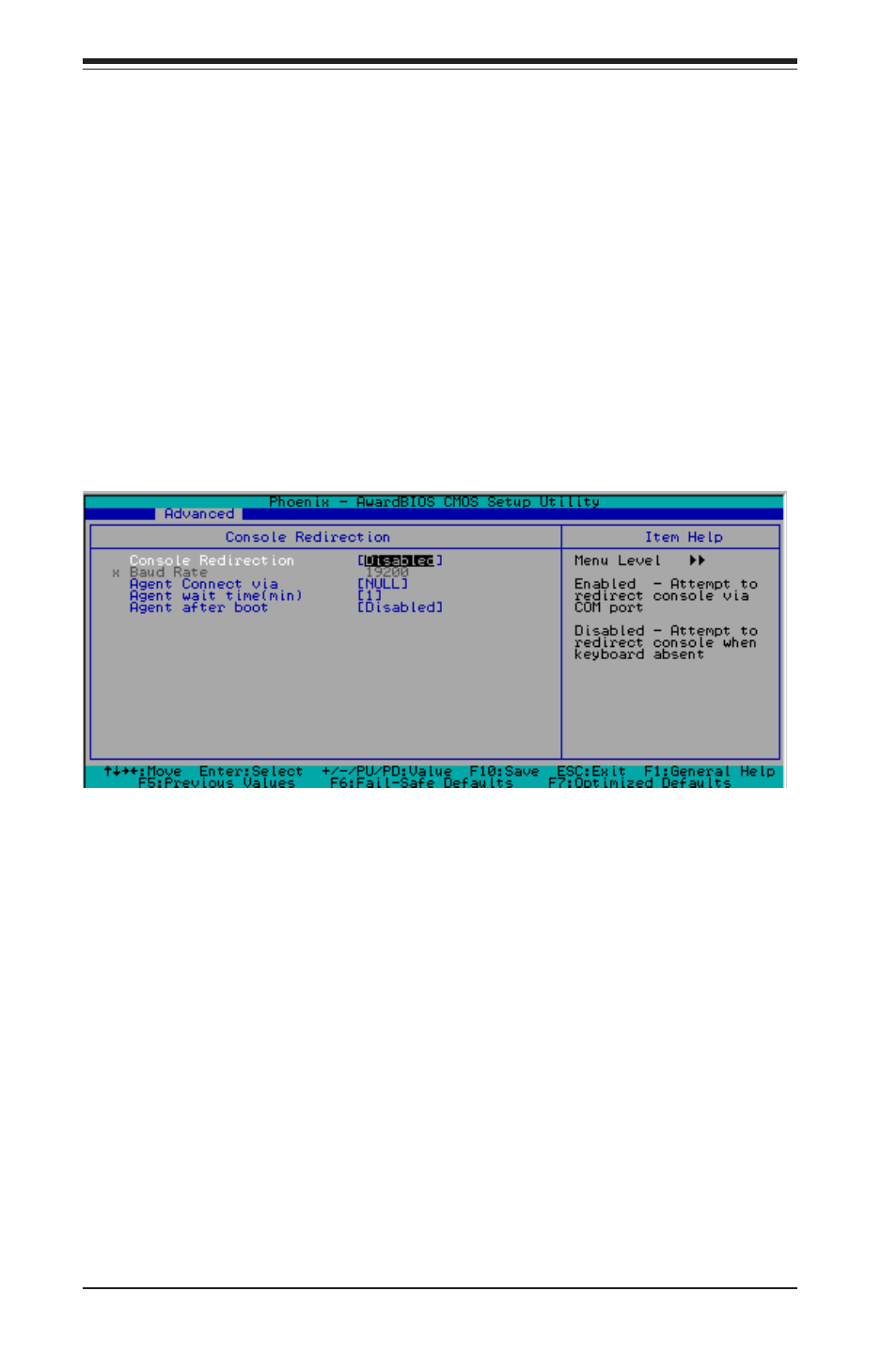

Choose Console Redirection from the Award BIOS main menu with the Left/
Right arrow keys. You should see the following display:
Agent Connect Via
This feature allows the user to set the connection mode for Console
Redirection. When "Null" is entered, Console Redirection will be set to
direct connection.
Agent Wait Time
This feature allows the user to set the timeout for the connection. The
options are "1 (Min)", "2 (Min)", "4 (Min)" and "8 (Min)".
