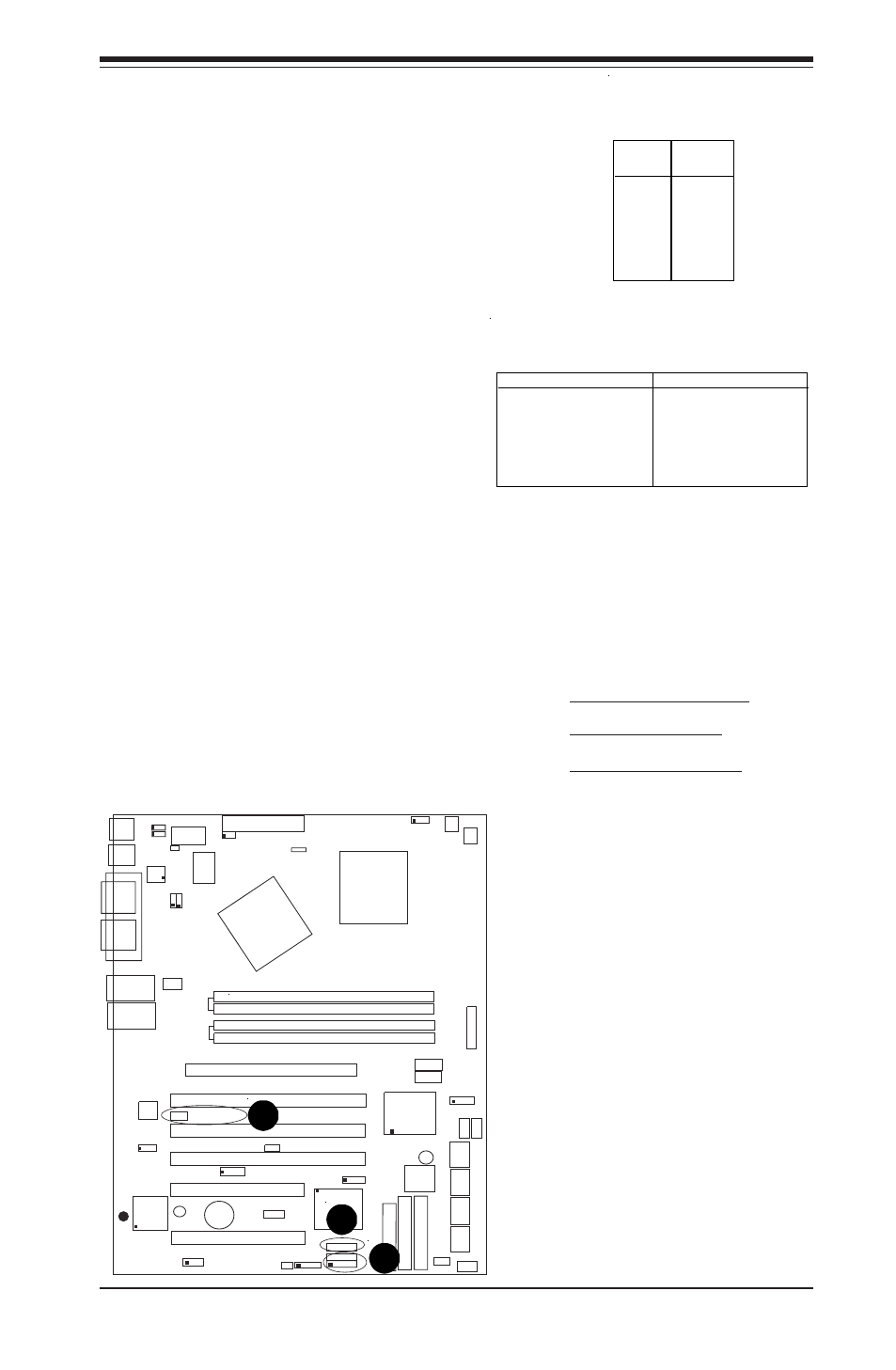

Chapter 2: Installation
2-17
Intel's SATA LED
The header for Intel's SATA LED
is located on J37. This header will
display all Intel's SATA activities.
See the table on the right for pin
definitions.
Intel's SATA LED
Pin Definitions
(J37)
Pin
Number
1
2
3
4
5
Definition
(I-)SATA1
(I-)SATA2
NC
NC
NC
Marvell's SATA LED
(*P4SCT+/ P4SCT+II Only)
The header for Marvell's SATA
L E D i s l o c a t e d o n J S 9 . T h i s
header will display all Marvell's
SATA activities. See the table on
the right for pin definitions.
Marvell's SATA Pin Definitions
(JS9)
Pin Number Definition
1 (M-)SATA1
2 (M-)SATA2
3 (M-)SATA3
4 (M-)SATA4
5 (M-)SATA
LED Comm
Pin Number Definition
6 NC
7 NC
8 NC
9 NC
10 Key
CPU
478 PGA
M C H
PWR LED
COM2
USB 1/2
P
a
rall
e
l P
ort
JPWAKE
WOR
OH FAN/CH Fan5
COM 1
VGA
GLAN 1
PCI 1-X
PCI-X 2
PCI -X 3
PCI 2
F
L
O
P
P
Y
BATTERY
BIOS
DIMM 0A (Blue)
Watch Dog
FRONT PANEL CTR
BANK0
BANK1
®
JF1
WOL
IR
Su
per I/O
Speaker
I-SATA LED
Keylock
USB 3/4
24-pin ATX PWR Conn
S
U
P
E
R
P
4
S
C
T
/P
4
S
C
T
+
/P
4
S
C
T
+
II
GLAN 2
PCI 1
CHS FAN3
Intel's SATA2
K
B
/M
ouse
JPUSB
LAN2 Enable
RAGE-XL
+12V 4-pin PWR Conn.
PWR Froce On
(North Bridge)
CHS FAN4
CPU S
peed
CP
U
/C
HF
a
n
1
Intel's SATA1
SATA1/5
SATA3/7
SATA4/8
VGA Enable
AGP Pro
SMBus
SATA CTLR
GLAN CTLR
82541
CLR CMOS
Hance
Rapids
M-SATA1-2 Enable
M a r v e l l
SATA2/6
IDE1 IDE2
Ch. Intru.
CHS FAN2
(Marvall's SATA)
Standby LED
LAN CTLR
82547
DIMM 1A (Blue)
DIMM 0B (Black)
DIMM 1B (Black)
Speaker
M- SATA LED
PWR Force On
B. Intel SATA LED
C. Marvell SATA LED
Standby Power LED
The Standby Power LED Indicator
i s l o c a t e d o n L E 2 . W h e n t h e
Standby PWR LED is on, it indi-
cates the system standby power
is on.
A. Standby PWR LED
A
B
C
