Chapter 2: Installation

2-23

2-8

Parallel Port, Floppy Drive, Hard Drive and AGP

Connections

Use the following information to connect the floppy and hard disk drive

cables.

The floppy disk drive cable has seven twisted wires.

A red mark on a wire typically designates the location of pin 1.

A single floppy disk drive ribbon cable has 34 wires and two connectors

to provide for two floppy disk drives. The connector with twisted wires

always connects to drive A, and the connector that does not have

twisted wires always connects to drive B.

The 80-wire ATA100/66 IDE hard disk drive cable that came with your

system has two connectors to support two drives. This special cable

should be used to take advantage of the speed this new technology

offers. The blue connector connects to the onboard IDE connector inter-

face and the other connector(s) to your hard drive(s). Consult the docu-

mentation that came with your disk drive for details on actual jumper

locations and settings for the hard disk drive.

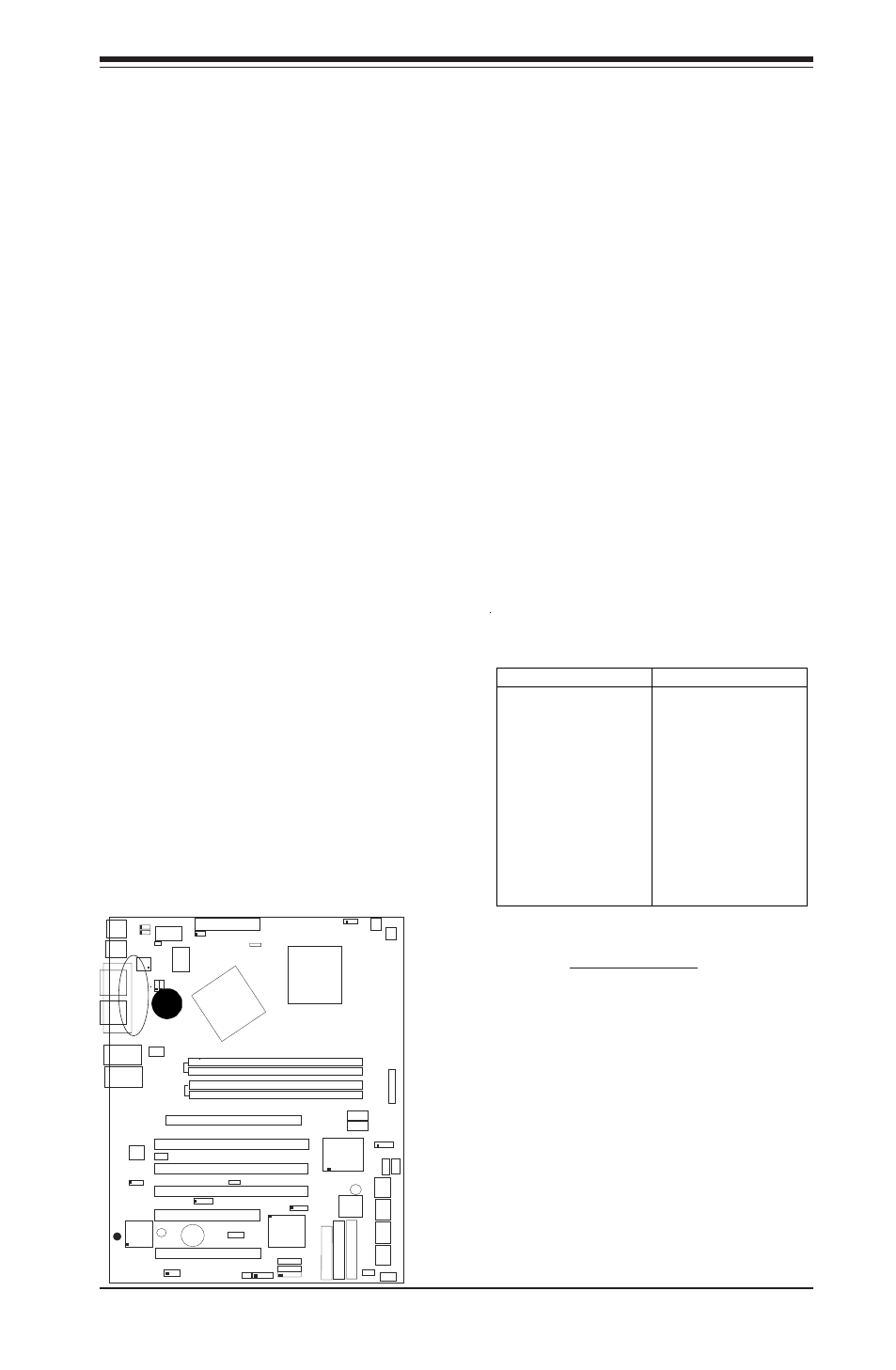

Parallel Port Connector

The parallel port is located on J8.

Refer to Figure 2-3 for location.

See the table on the right for pin

definitions.

Pin Number

Function

1

Strobe-

3

Data Bit 0

5

Data Bit 1

7

Data Bit 2

9

Data Bit 3

11

Data Bit 4

13

Data Bit 5

15

Data Bit 6

17

Data Bit 7

19

ACK

21

BUSY

23

PE

25

SLCT

Pin Number

Function

2

Auto Feed-

4

Error-

6

Init-

8

SLCT IN-

10

GND

12

GND

14

GND

16

GND

18

GND

20

GND

22

GND

24

GND

26

NC

Parallel (Printer) Port Pin Definitions
