2-4
S UPER P4SCT/P4SCT+/P4SCT+II User's Manual
2-4 Installing DDR Memory
CAUTION
Exercise extreme care when installing or removing memory
modules to prevent any possible damage.
Memory Module Installation (See Figure 2-2)
1. Insert each DDR memory module vertically into its slot. Pay attention to
the notch along the bottom of the module to prevent inserting the mod-
ule incorrectly. (See support information below.)
2. Gently press down on the memory module until it snaps into place.
2-3 Mounting the Motherboard in the Chassis
All motherboards have standard mounting holes to fit different types of
chassis. Make sure the location of all the mounting holes for both the
motherboard and the chassis match. Although a chassis may have both
plastic and metal mounting fasteners, metal ones are highly recommended
because they ground the motherboard to the chassis. Make sure the metal
standoffs click in or are screwed in tightly. Then use a screwdriver to
secure the motherboard onto the motherboard tray. (*Note: Some compo-
nents are very close to the mounting holes. All precautionary measures
shall be taken to prevent damage done to these components when installing
the motherboard into the chassis.)
Lever
Processor
(installed)

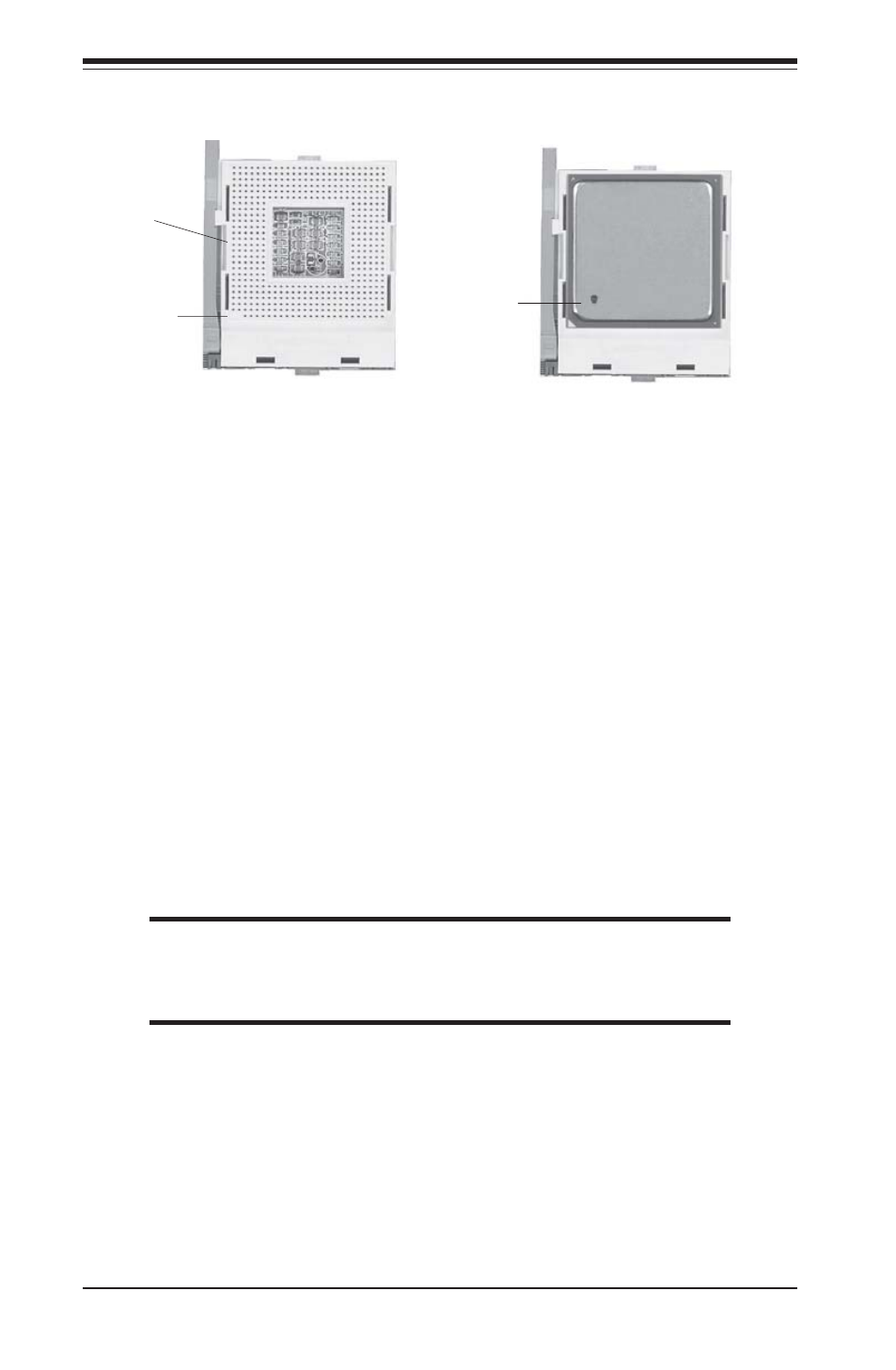

Figure 2-1. 478-pin mPGA Socket: Empty and with Processor Installed
Pin 1
Pin 1
