Figure 2-4. Front Control Panel Connectors
2-5 I/O Port/Control Panel Connector Locations
The I/O ports are color coded in conformance with the PC99 specification to
make setting up your system easier. See Figure 2-3 below for the colors
and locations of the various IO ports.

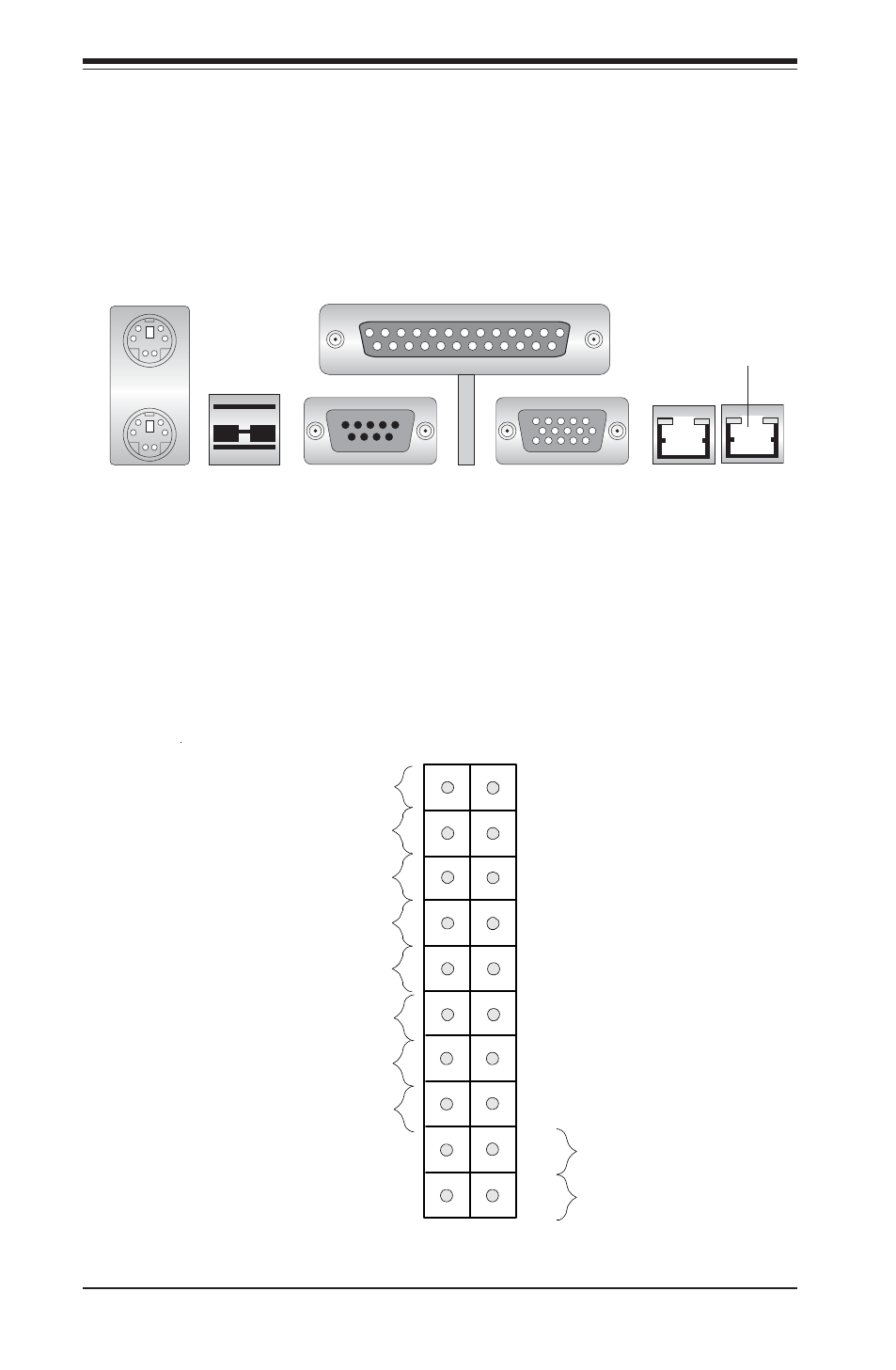

Figure 2-3. I/O Port Locations and Definitions
Mouse (Green)
Keyboard
(Purple)
Parallel Port (Burgundy)
VGA Port
USB 1/2 Ports GLAN1 GLAN2
COM1 Port
(Turquoise)
Front Control Panel
JF1 contains header pins for various front control panel connectors. See
Figure 2-4 for the pin definitions of the various connectors including the
speaker. Refer to Section 2-6 for details.
LAN1 LED
Power Button
Overheat LED
1
Reset Button
2
IDE LED
Power On LED
Reset
Pwr
Vcc
Vcc
Vcc
Vcc
Ground
Ground
19 20
Vcc
X
Ground NMI
X
X X
LAN2 LED
(*P4SCT+ Only)
