2-2
S UPER P4SCT/P4SCT+/P4SCT+II User's Manual
IMPORTANT: Always connect the power cord last and always remove it
before adding, removing or changing any hardware components. Make
sure that you install the processor into the CPU socket before you install the
CPU heatsink.
!
2-2 Processor and Heatsink Fan Installation
When handling the processor package, avoid placing
direct pressure on the label area of the fan.

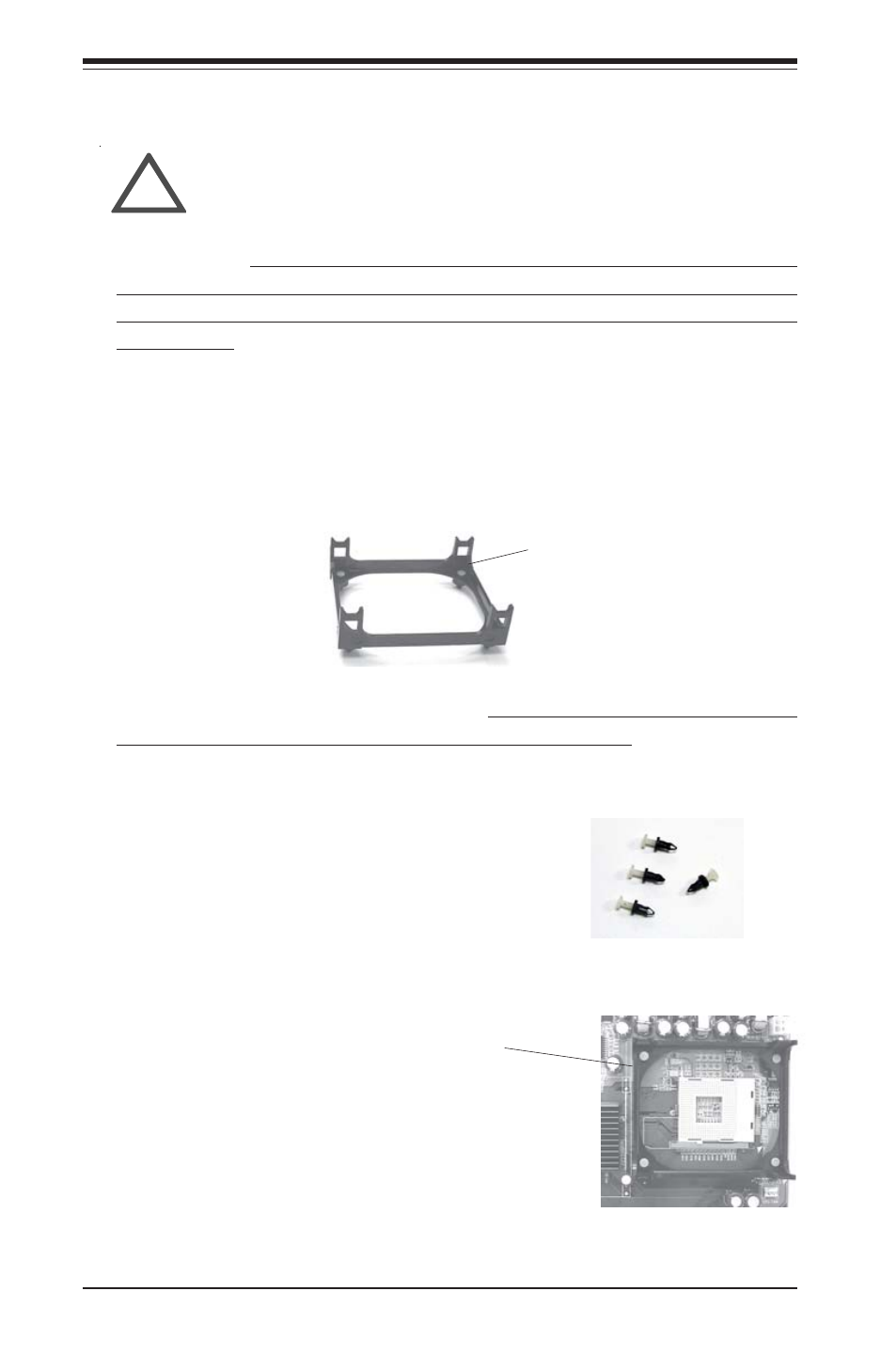

Installation of the Processor and Heatsink
1. Locate the following components, which are included in the shipping
package.
Bracket (1)
2. Insert the white pegs into the black an-
chors. Do not force the white pegs all the
way in - about 1/3 of the white pegs should
be inside the black anchors. (These are for
chassis that do not have four CPU retention
holes.)
3. Place a retention bracket in the proper position
and secure it by pressing two pegs into the reten-
tion holes until you hear a *click*. The clicking
sound indicates that the peg is locked and secured.
Bracket in
position
4. Secure the other retention bracket into position by repeating Step 3.
If you buy a boxed Intel Pentium 4 478 processor, it should include a
heatsink, fan and retention mechanism. If you buy a processor separately,
use only a Supermicro or Intel certified heatsink and fan.
