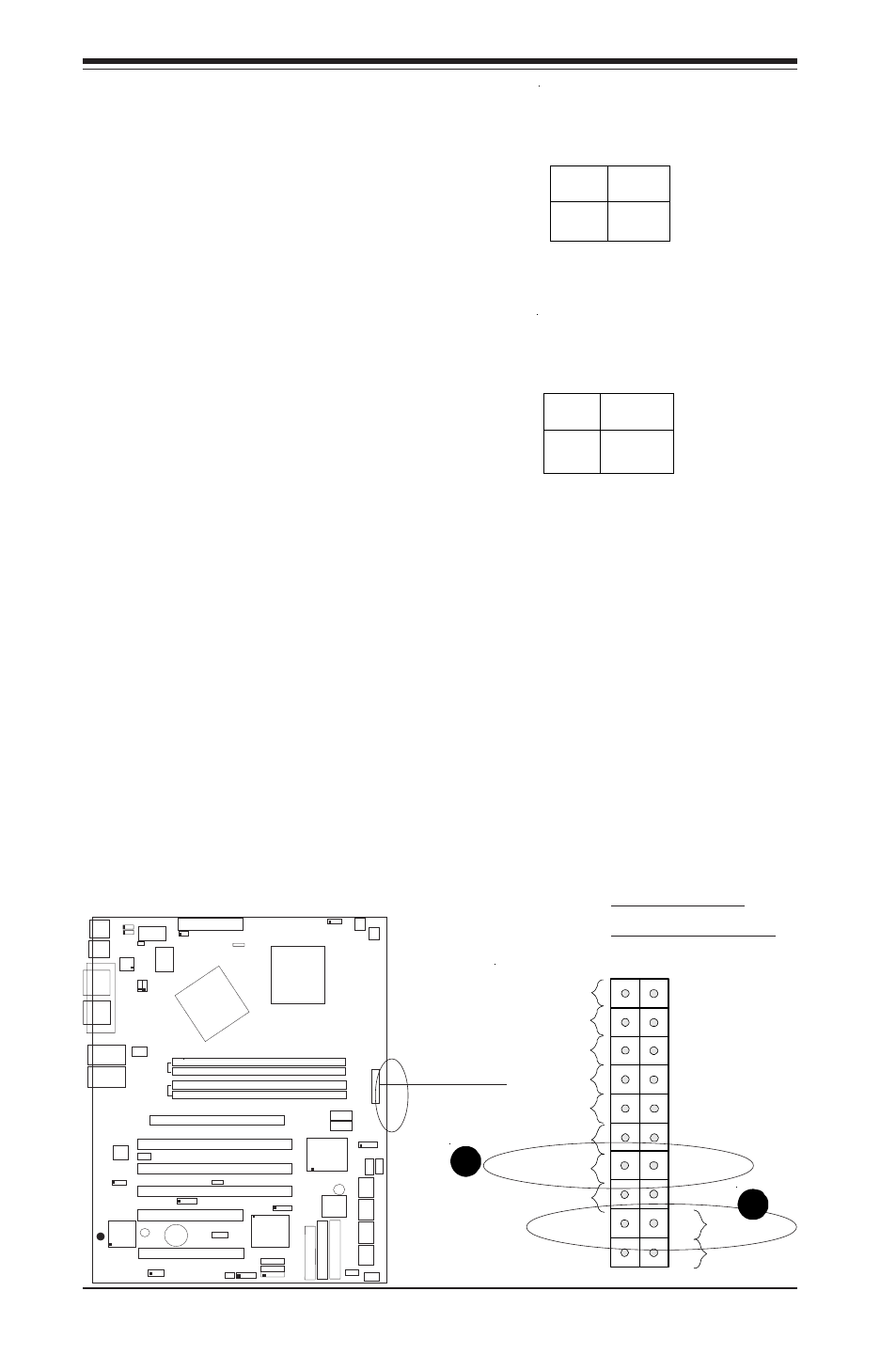

Reset Connector
The reset connector is located on
pins 3 and 4 of JF1. This connec-
tor attaches to the reset switch on
the computer chassis. See the
table on the right for pin defini-
tions.
Pin
Number
3
4
Definition
Reset
Ground
Reset Pin
Definitions
(JF1)
Overheat LED (OH)
Connect an LED to the OH connec-
tion on pins 7 and 8 of JF1 to pro-
vide advanced warning of chassis
overheating. Refer to the table on
the right for pin definitions.
Overheat (OH) LED
Pin Definitions
(JF1)
Pin
Number
7
8
Definition
Vcc
GND
