Installation and Commissioning
Operating Instructions for SCALANCE X-400 Industrial Ethernet Switches
C79000-G8976-C186-03
95
Connecting TP Cord to FC Cable
To connect TP Cord to FC cables, two IE FC RJ-45 modular outlet insert types are
available:
● IE FC RJ-45 modular outlet insert 1GE
1 R-J45 jack with 4x2 wire cable for 1 Gbps
● IE FC RJ-45 modular outlet insert 2FE
2 RJ-45 jacks each with 2x2 wire cable for 100 Mbps
With the IE FC RJ-45 modular outlet insert 1GE, the eight-wire FastConnect cable
allows a transmission rate of 1 Gbps.

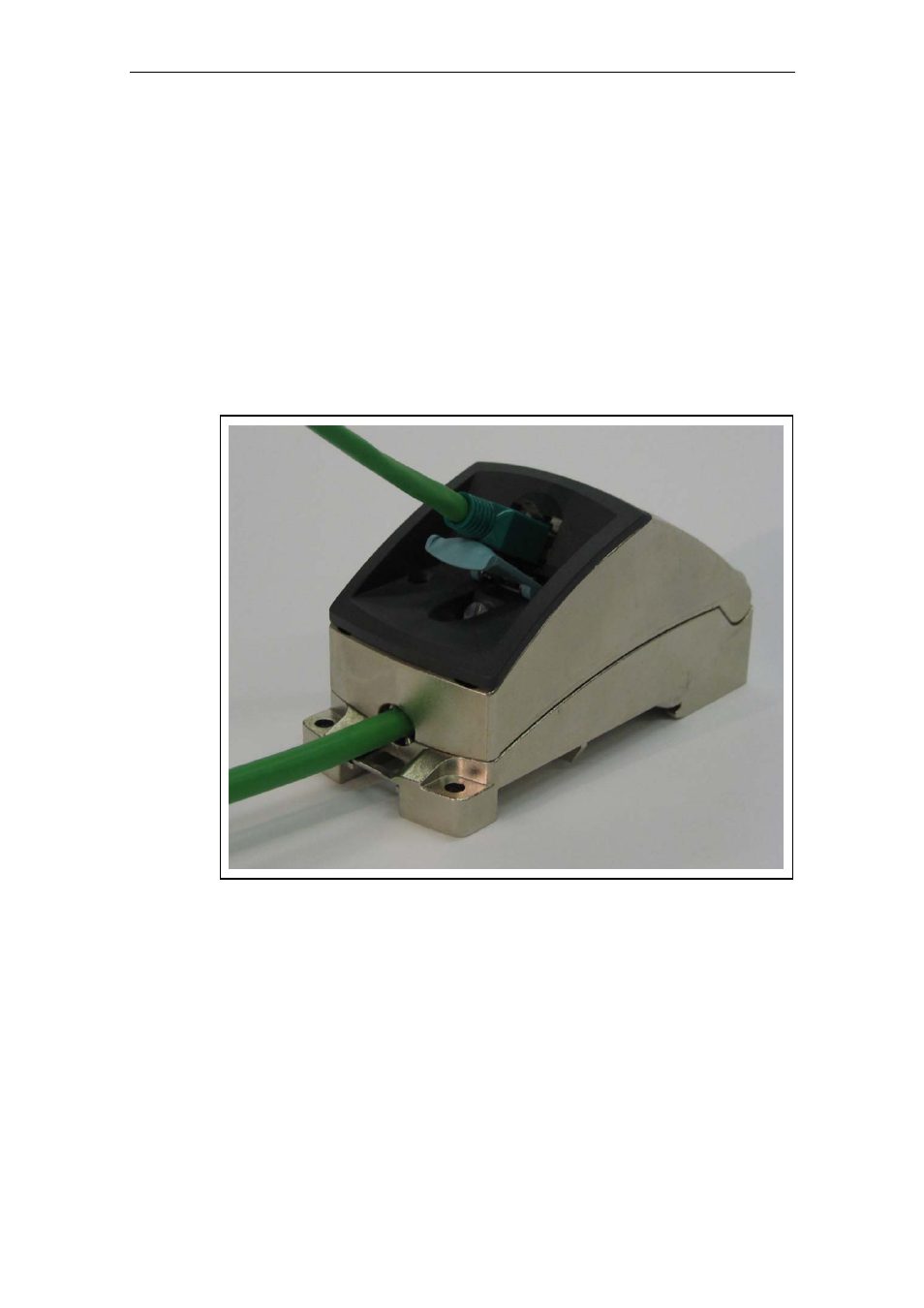

Figure 6-14 IE FC RJ-45 Modular Outlet Insert 1GE
