Samsung M6000 User’s Manual Using the Battery 38
3. Slide the battery compartment cover straight up and off the
computer (Figure 17).

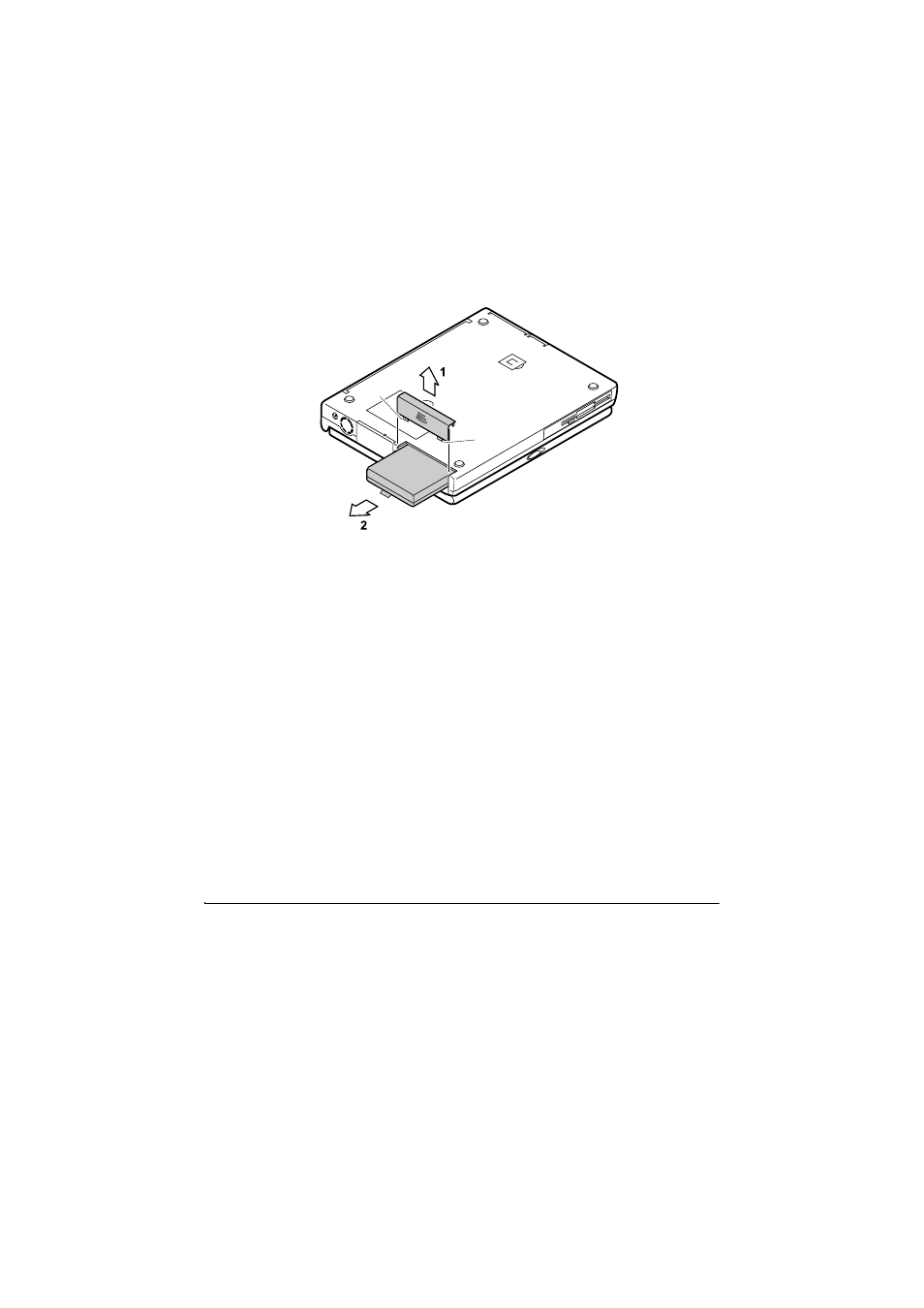

Figure 17. Removing the Battery Pack
4. Grasp the plastic tab on the battery and pull the battery out of
the compartment.
To reinstall the battery pack:
1. Turn the computer’s power off.
2. Close the LCD panel and turn the computer over so the bottom
of the unit faces up.
3. Slide the battery pack into the compartment. Make sure the
battery is fully inserted into the compartment.
4. Align the tabs on the battery compartment cover with the slots
on the battery compartment.
5. Push the cover straight down until it snaps into place.
Monitoring the Battery Charge
Battery life is affected by factors such as the power-management
settings in System Setup, the applications you use, and the brightness
and contrast settings of the LCD. Under normal usage, the battery
charge lasts approximately 2 hours.
Bottom of
computer
Tab
Tab
