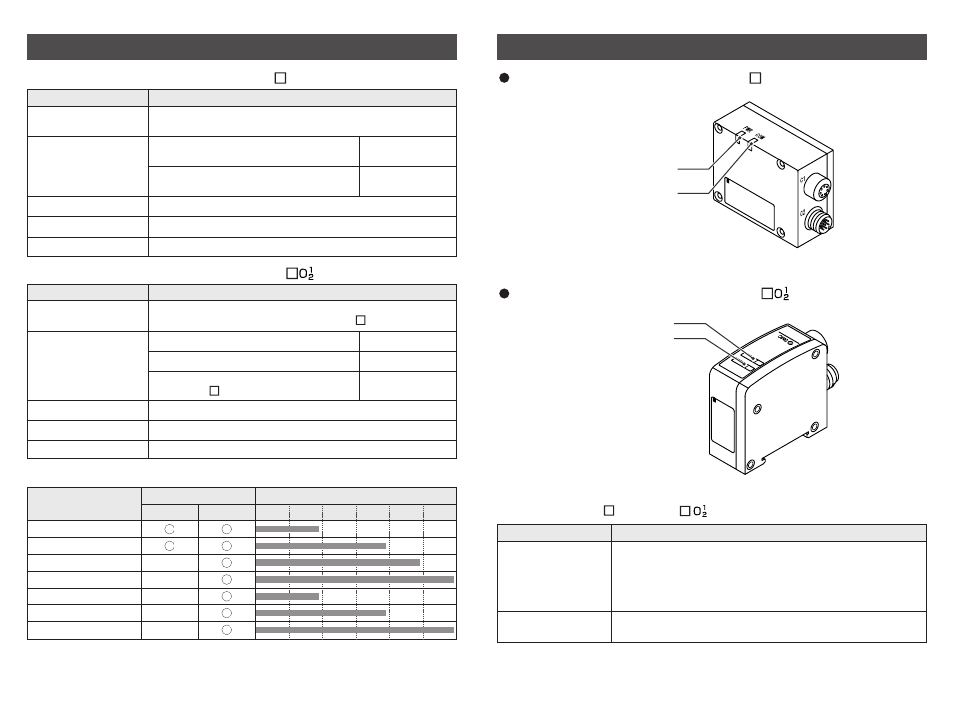

Display
Power LED
Communication LED
SI unit for SV series valves ( EX500-S 01 )
Power LED
Communication LED
SI unit for VQC series valves ( EX500-Q )
Power LED Lights on : Power to solenoid valves/output is supplied at the
specified voltage.
Lights off : Power to solenoid valves/output is not supplied at
the specified voltage. ( Voltage dropped to lower
than 20V. )
Communication
LED Lights on : Receiving data from GW
Lights off : No received data
Display Description
Common to EX500-S 01/EX500-Q
Specification
1. SI unit for SV series valve ( EX500-S 01 )
Connected block Solenoid valve ( single, double )
Relay output module ( 1-point output, 2- point output )
Connected block
station Double solenoid valve
Relay output module ( 2-point output )
Supply voltage for block 24VDC
Supply current for block 0.65A Max.
Current consumption 100mA or less ( at rated voltage )
Single solenoid valve
Relay output module ( 1-point output )
Max. 8 stations
Max. 16 stations
Item Specification
2. SI unit for VQC series valve ( EX500-Q )
Connected block Solenoid valve ( single, double )
General purpose output block ( EX500-Q
02 only )
Connected block
station
Supply voltage for block
Supply current for block
Current consumption
Double solenoid valve
Item Specification
3. Applicable valve series
Cassette Tie-rod 40 50 63 80 100 125
Series
Manifold Inner diameter of applicable cylinder tube ( mm )
Max. 8 stations
Single solenoid valve
General purpose output block
( EX500-Q
02 only )
Max. 16 stations
Max. 8 stations
24VDC
0.75A Max.
100mA or less ( at rated voltage )
SV1000
SV2000
SV3000 -
-
-
-
-
SV4000
VQC1000
VQC2000
VQC4000
For detailed specifications of solenoid valve and manifold, refer to the catalogs, instruction
manuals, technical data, etc. of each valve series.
