For Machines Mfg. Since 5/11 13" x 40" Heavy 13 ® EVS Lathe
-115-

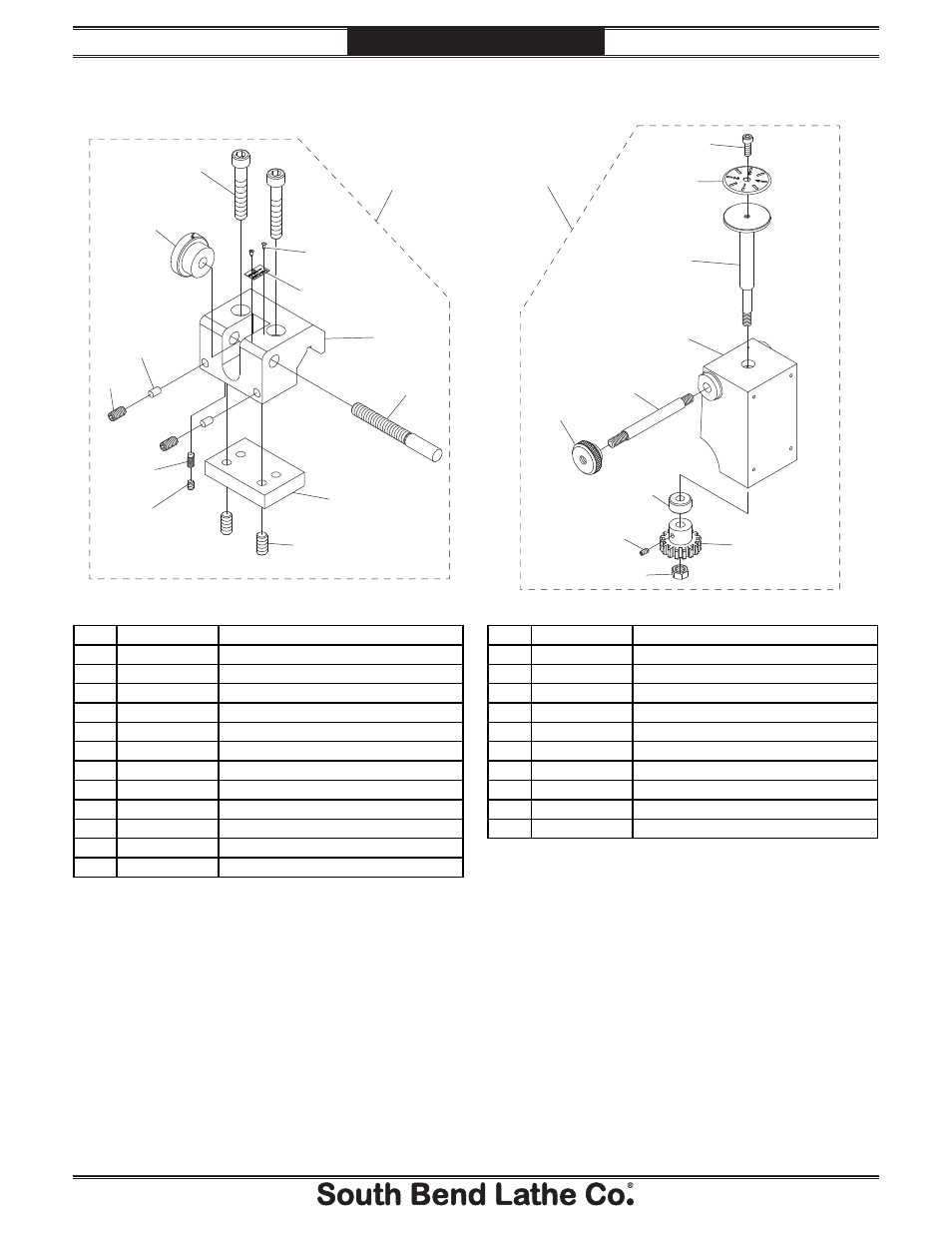

P A R T S
Micrometer Stop
701
702
700
703
704
705
706
707
708
709
710
711
712
REF PART # DESCRIPTION
700 PSB10510700 MICROMETER STOP ASSEMBLY
701 PCAP71M CAP SCREW M10-1.5 X 60
702 PRIV009M STEEL FLUTED RIVET 2 X 6MM
703 PSB10510703 INDICATOR PLATE
704 PSB10510704 MICROMETER DIAL
705 PSB10510705 BODY
706 PSB10510706 MICROMETER STOP ROD
707 PSB10510707 CLAMPING PLATE
708 PSS10M SET SCREW M10-1.5 X 20
709 PSB10510709 PLUG COPPER
710 PSS06M SET SCREW M8-1.25 X 16
711 PSB10510711 DOG POINT SET SCREW M8-1.25 X 12
712 PSS14M SET SCREW M8-1.25 X 12
Dial Indicator
751
752
750
753
754
755
757
758
759
761
762
REF PART # DESCRIPTION
750 PSB10510750 DIAL INDICATOR ASSEMBLY
751 PSB10510751 INDICATOR DIAL
752 PSB10510752 PIVOT STEM
753 PSB10510753 BODY
754 PSB10510754 KNURLED KNOB
755 PSB10510755 STUD-UDE M8-1.25 X 110 20/30
757 PSB10510757 SPACER
758 PSB10510758 GEAR 16T
759 PCAP04M CAP SCREW M6-1 X 10
761 PSS02M SET SCREW M6-1 X 6
762 PN03M HEX NUT M8-1.25
