Instruction Sheet

PHONE: (360) 734-1540 •

www.southbendlathe.com

MODEL SB1044

CUTTING FLUID KIT

Specifications

• Motor .......................................................

⁄

• Phase & Cycle ................. 3-Phase & 50/60 Hz

• Voltage ............................................220V/440V

• Current ..................................... 0.3/0.15 Amps

• Pump Type ..................................................Jet

• Pump Flow ........................................ 8.2 GPM

• Cutting Fluid Type ......... Water-Soluble Only

• Maximum Tank Capacity ...................... 9 Gal.

• Net Weight ............................................. 73 lbs

• Country of Origin ................................ Taiwan

BIOLOGICAL & POISON

HAZARD!

Use the correct personal

protection equipment

when handling cutting

fluid. Follow federal, state,

and fluid manufacturer

requirements for proper

disposal.

Introduction

This cutting fluid kit is for the Model SB1029

Surface Grinding Machine. The system is

designed to pump water-soluble cutting fluid to

minimize grinding wheel wear, load-up, glazing,

and heat. Using cutting fluid helps maximize

the quality of workpiece results, especially on

materials that should not be ground dry.

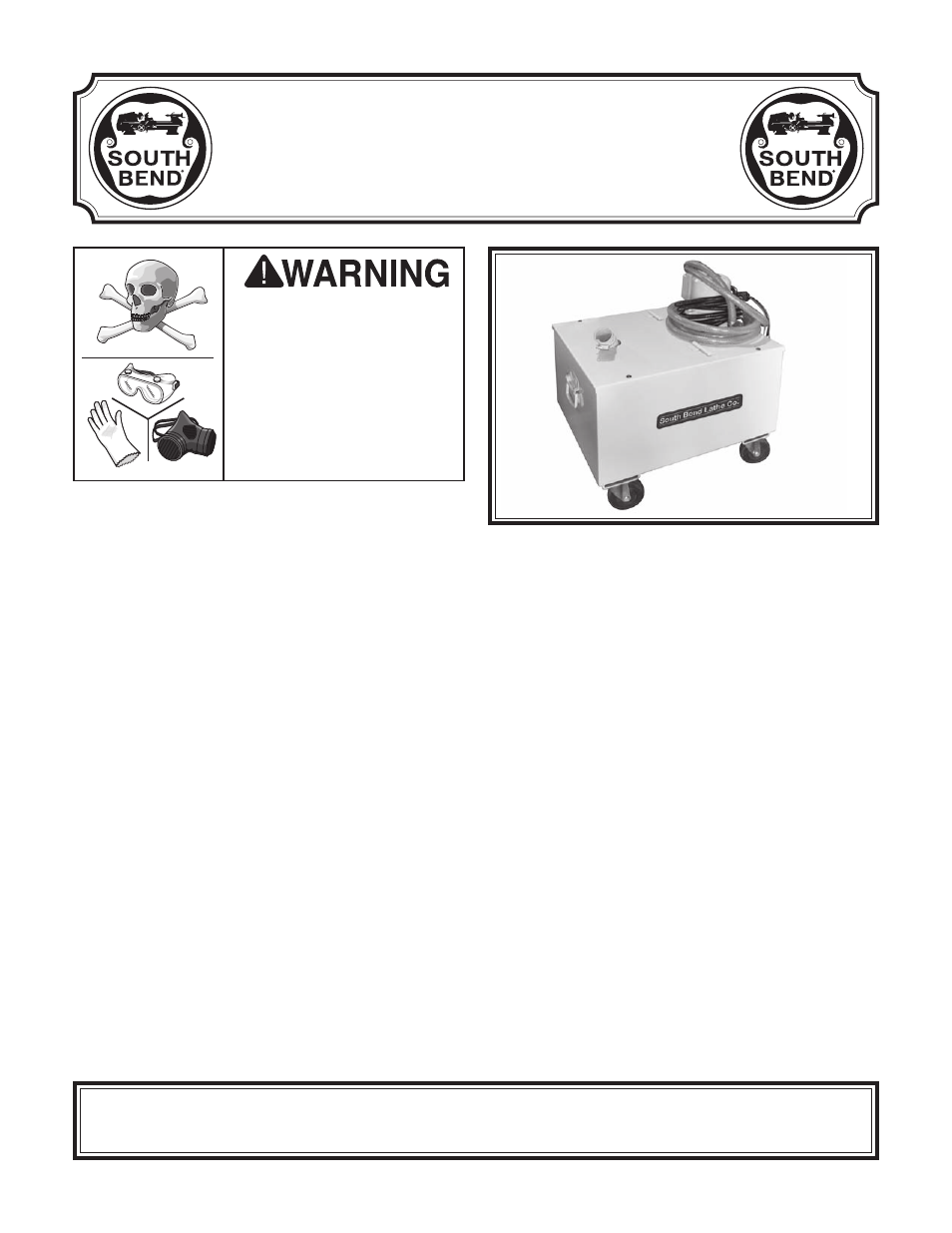

Figure 1. Model SB1044.

Unpacking

This item was carefully packaged to prevent

damage during transport. If you discover any

damage, please immediately call Customer

Service at (360) 734-1540 for advice. You may

need to file a freight claim, so save the containers

and all packing materials for possible inspection

by the carrier or its agent.

Inventory

Item:

Qty

• Tank Assembly w/Pump ................................1

—Drain Hose 1

⁄

" x 5' ....................................1

—Hose Clamp 1

⁄

" ........................................1

—Delivery Hose

⁄

'' x 9' .................................1

—Hose Clamp 1

⁄

'' .........................................1

—Flex Conduit Power Cord 9' .......................1

—Drain Adapter .............................................1

—Swivel Caster Wheels .................................4

• Splash Guard .................................................1

—Button Head Cap Screw M6-1 x 10 ...........4

—Front & Rear Splash Panel .................. 1 Ea

• Coolant Trough ..............................................1

WARNING: No portion of this manual may be reproduced without written approval.

#CR13482 Printed in Taiwan

If you need help with your new model

SB1044 Cutting Fluid Kit, contact us at:

PHONE: (360) 734-1540

FAX: (360) 676-1075

EMAIL: [email protected]
