For Machines Mfg. Since 5/11 13" x 40" Heavy 13 ® EVS Lathe P A R T S
REF PART # DESCRIPTION REF PART # DESCRIPTION
641 PSB10510641 SPACER 6.5 X 15 X 3 649 PSB10510649 OIL TUBE 6 X 160MM
642 PSB10510642 GEAR 16T 650 PSB10510650 STRAIGHT ADAPTER 1/8"PT X 6MM
643 PSB10510643 SHAFT 651 PSB10510651 ONE-SHOT OILER ASSEMBLY
644 PSB10510644 STRAIGHT ADAPTER 1/8"PT X 4MM 652 PSB10510652 PUMP BRACKET
645 PSB10510645 OIL TUBE 4 X 260MM ALUMINUM 665 PSS03M SET SCREW M6-1 X 8
646 PSB10510646 ELBOW ADAPTER 1/8"PT X 4MM 669 PCAP24M CAP SCREW M5-.8 X 16
647 PSB10510647 OIL TUBE 4 X 120MM ALUMINUM 670 PSS74M SET SCREW M8-1.25 X 35
648 PSB10510648 OIL FILTER 6MM 671 PCAP169M CAP SCREW M12-1.75 X 75

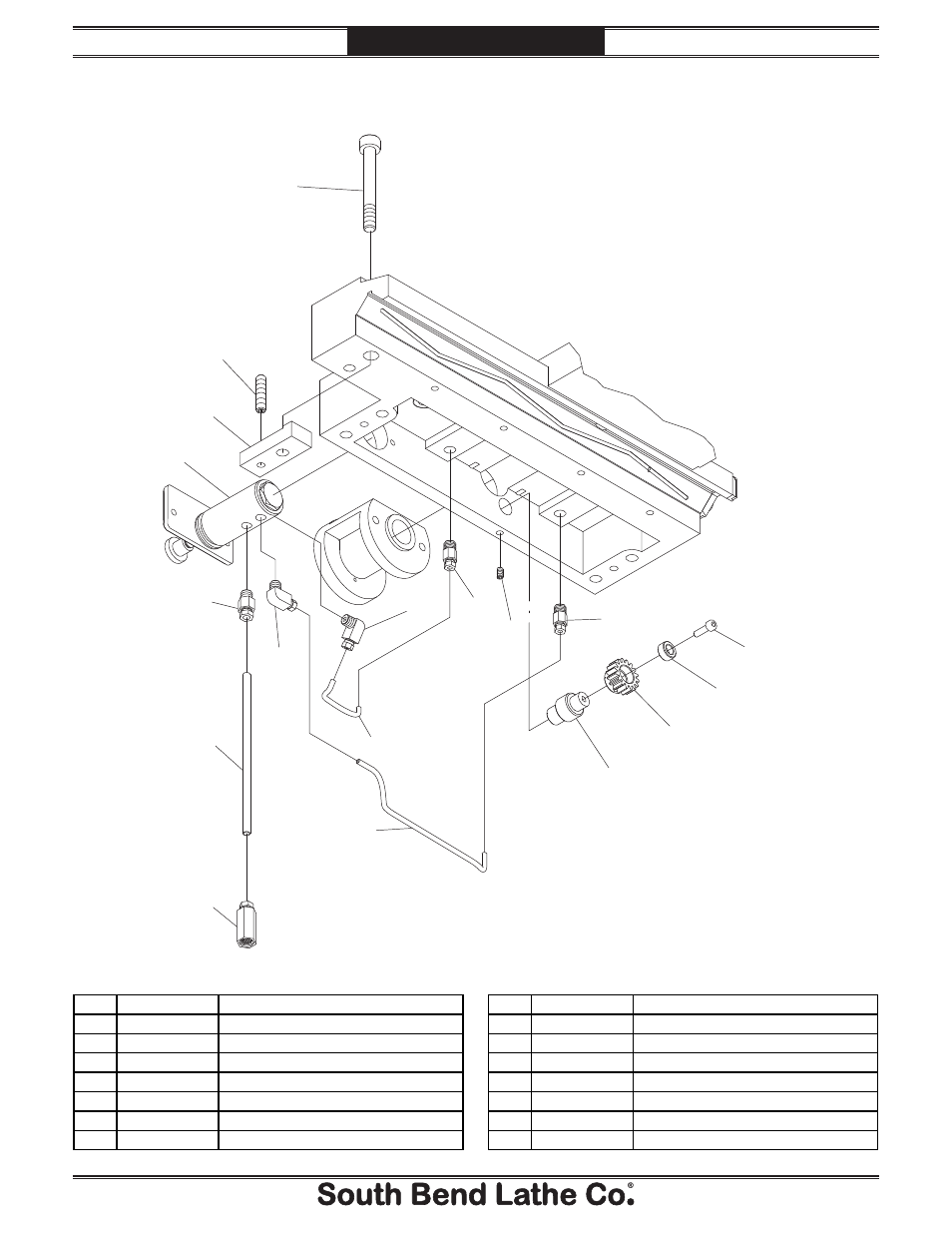

Saddle Bottom View
(Viewed from underneath the saddle)
641
642
643
644
644
645
646
646
647
648
649
650
651
652
665
669
670
671
