Expansions and Configurations

10.4 Installing/Removing Compact Flash Cards

SIMATIC IPC427C

Operating Instructions, 04/2009, A5E02414743-01

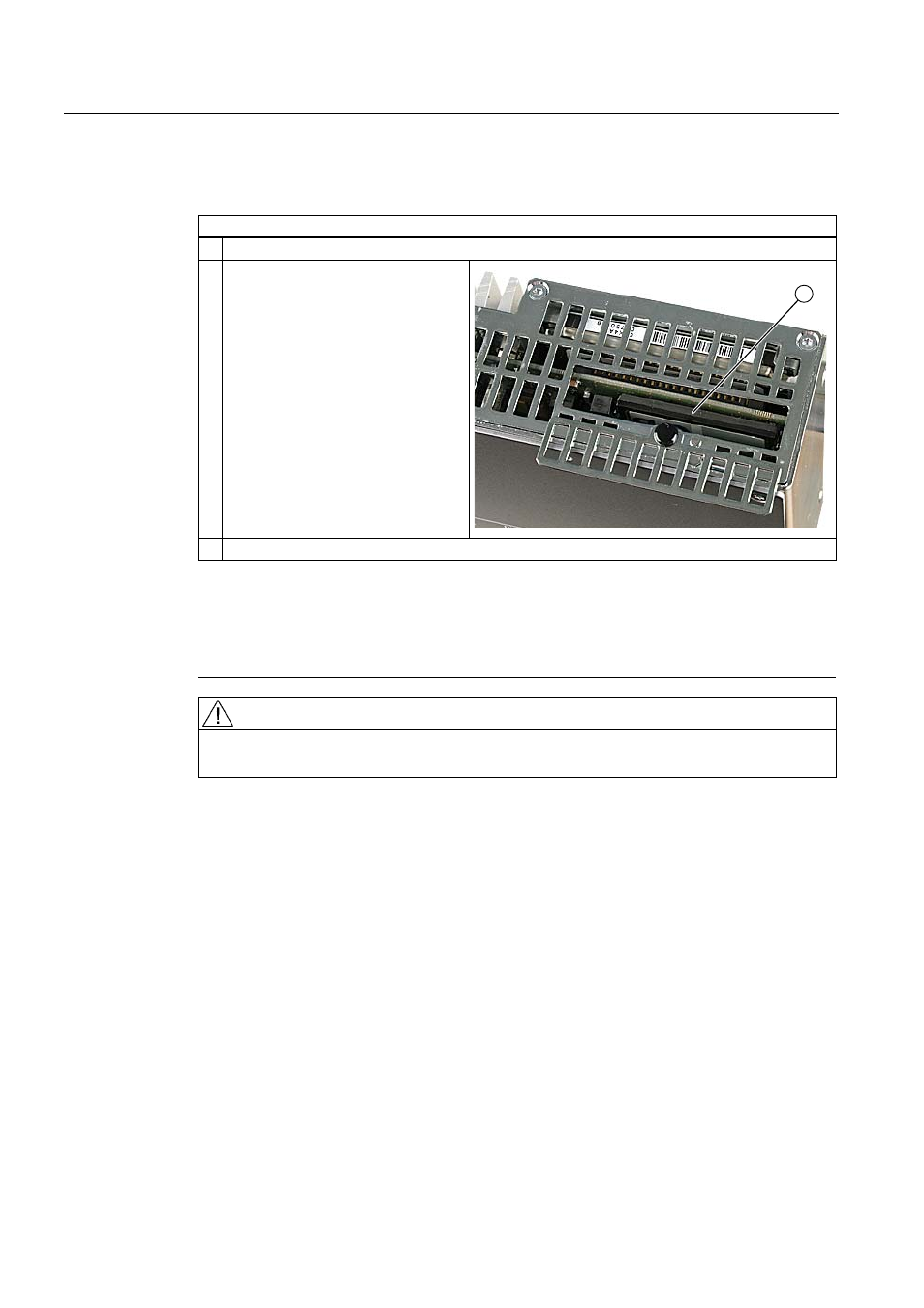

Installing the Compact Flash card

Steps for installing a Compact Flash card
1 Open the module receptacle.
2 Insert the CompactFlash card with the

connector facing in until it locks into

place ①.

3 Close the module receptacle again.

Note
The Compact Flash slot is coded against reversed insertion. Insert it so that its upper side

(label side) is facing the front panel of the device.

CAUTION

If the Compact Flash card meets resistance, flip it over. Never insert the CompactFlash

card with force.
