Expanded Memory Function
Graphics, Custom Recall
Command Structure GRaaa
aaa = Graphics storage number (001-999)
Example: GR111
Placement: The Recall command is sent in a secondary data
stream to print the graphic, and follows any necessary
position or size commands.
Default: None
Command Function Use the Recall command any time you want to print a graphic image
on a label along with other printed data.
Printer Input Non Rotated Graphic Graphic Rotated 90°
ACC1 ACC1%1
V0100H0080L0505 V0180H0250L0505
GR001 GR001
Q1Z Q1Z
Graphic Rotated 180° Graphic Rotated 270°
ACC1%2 ACC1%3
V0180H0500L0505 V0100H0700L0505
GR001 GR001
Q1Z Q1Z

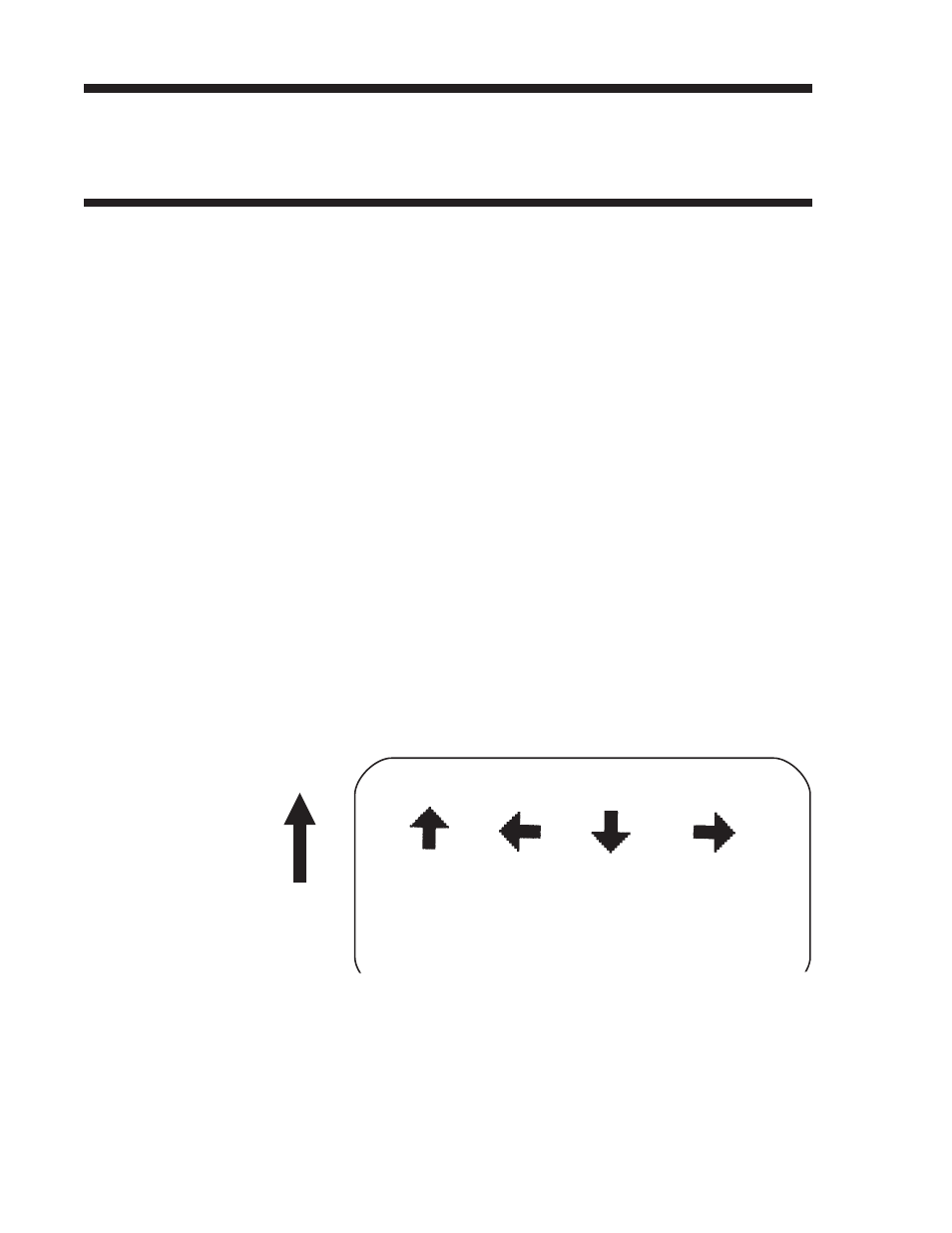

Printer Output
Special Notes 1. The graphic image to be stored cannot be rotated before it is
stored. It can be rotated when it is recalled.
2. Graphic images cannot be stored as part of a label format.
3. See the GI Custom Graphic Store command.
