VTSS Configuration Planning
As shown in Figure 2-8 , six VCF cards provide 12 physical FICON ports, and each port
supports 64 host paths (768 paths total). Cards must be installed in the slots shown (i.e.,
the third VCF3 card pair must be installed in slots VCF01 and VCF11).

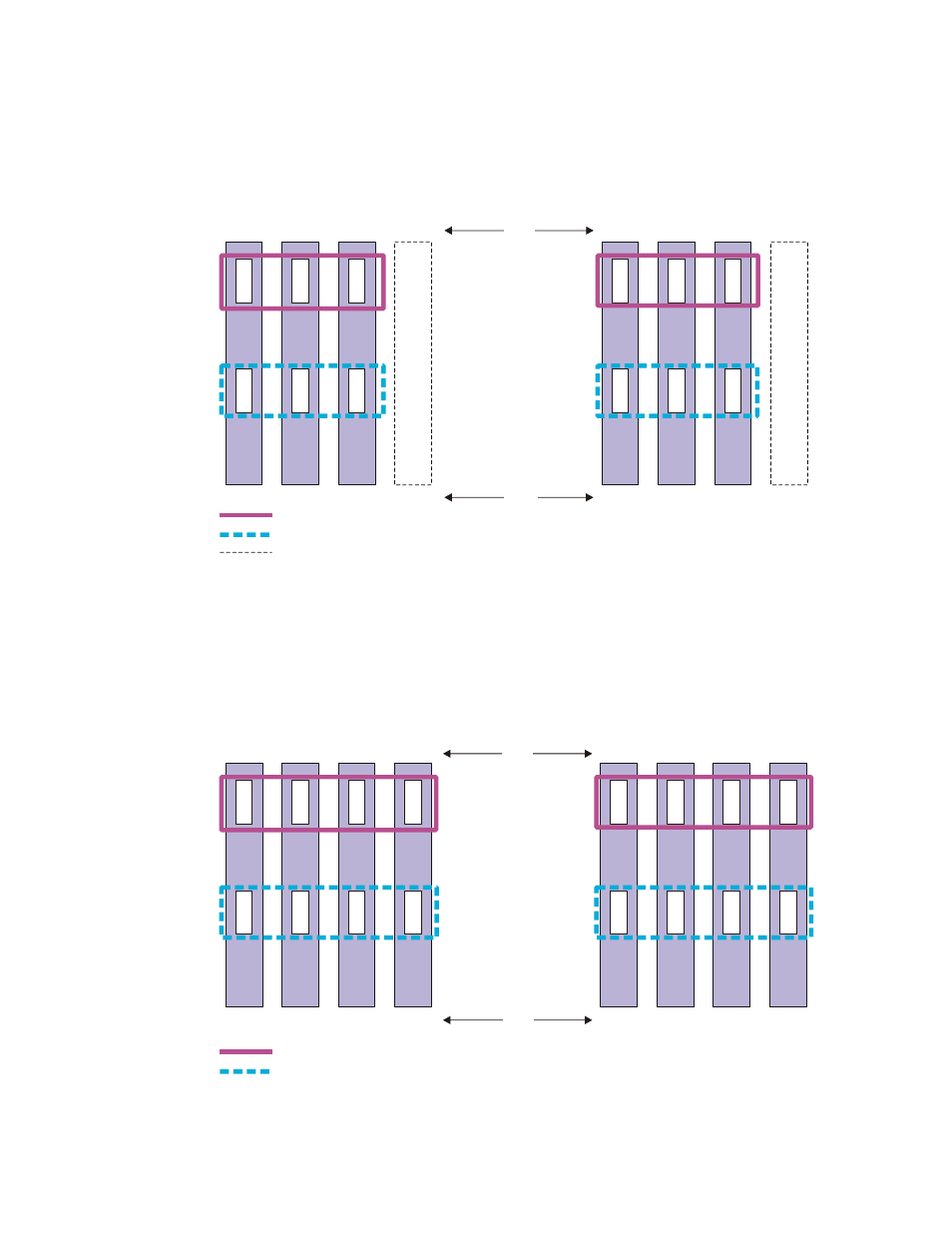

Figure 2-8. FICON Channel Card Configuration – 6 VCF Cards
As shown in Figure 2-9 , eight VCF cards provide 16 physical FICON ports, and each port
supports 64 host paths (1024 paths total). Cards must be installed in the slots shown (i.e.,
the third VCF3 card pair must be installed in slots VCF03 and VCF13).
Figure 2-9. FICON Channel Card Configuration – 8 VCF Cards
Storage Cluster 0
0A
0C
2
VCF00
0E
0G
3
VCF01
0I
0K
4
VCF02
5
VCF03
1A
1C
12
VCF10
1E
1G
13
VCF11
1I
1K
14
VCF12
15
VCF13
A504_069
Storage Cluster 1
Host Ports
RTD Ports
Empty slot - no card installed
Channel-Link-Port 0
Slot
Card
Channel-Link-Port 1
Storage Cluster 0
0A
0C
2
VCF00
0E
0G
3
VCF01
0I
0K
4
VCF02
0M
0O
5
VCF03
1A
1C
12
VCF10
1E
1G
13
VCF11
1I
1K
14
VCF12
1M
1O
15
VCF13
A504_064
Storage Cluster 1
Host Ports
RTD Ports
Channel-Link-Port 0
Slot
Card
Channel-Link-Port 1
