This function returns all setting values except for User logo, PIN
code lock, Logo PIN code lock and Filter counter to the factory
default settings.
Various test pattern are available for use when setting up the
projector.
Filter replacement icon appears on the screen
at a set time.
Note:
• Do not reset the counter when the filter or the filter cartridge is not
replaced.
• Timer setting notifies that the filter needs replacement. To replace the
filter, use the filter control function (p.58).
Fig .1 Filter replacement icon
Filter cartridge replacement icon appears on
the screen when the filter scroll is counted
down to 0 scroll.
Fig .4 Filter cartridge replacement icon
Note:
• Fig.1, Fig. 2, Fig. 3 and Fig. 4 appear at turning on
and selecting input source.
• Fig.1, Fig. 2, Fig. 3 and Fig. 4 will not appear when
the Display function is set to Off (p.52) or during
“Freeze” (p.30).
Last scroll icon appears on the screen when
the filter is down to the last scroll.
Fig . Last scroll icon
Setting
This function is used to set a frequency for the filter replacement.
Use the Point ▲▼ buttons to select Filter counter and then press
the Point
► or the SELECT button to access the submenu items.
Filter counter...... Show the total accumulated time of the filter
use timer setting.
Timer ................ To set a timer, when the projector reaches
the time, the Filter replacement icon (Fig.1)
appears on the screen and the total
accumulated time turns red, indicating that
the filter replacement is necessary. If the
filter is out of scroll and the projector reaches
a time set in the timer setting, Fig.2 appears
on the screen, indicating that the filter
cartridge replacement is necessary.
Filter counter reset..When replacing the Filter cartridge, reset the
Filter counter and the Scroll remaining (p.68).
Scrolls remaining . When the filter scroll is counted down to 1,
Scroll remaining on the screen is showing
0 scroll(s) , the last scroll icon (Fig.3)
appears on the screen. When the filter scroll
is counted down to 0, the Filter cartridge
replacement icon (Fig.4) appears on the
screen and the WARNING FILTER indicator
lights orange, indicating that the filter cartridge
replacement is necessary.
Scroll counter Reset..When replacing the Filter cartridge, reset the
Filter counter and the Scroll remaining (p.68).

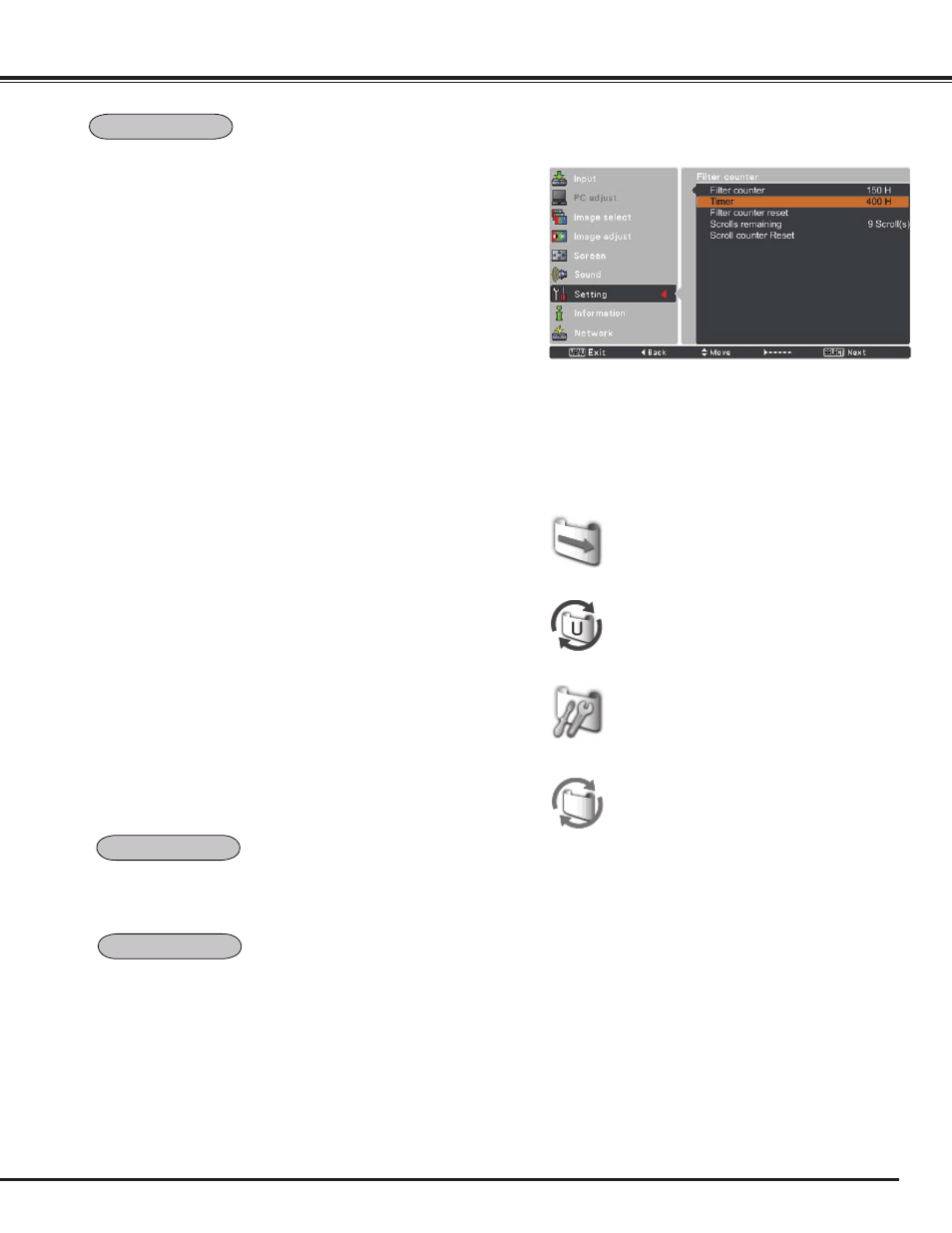

Fig .
Filter counter
Press the SELECT button to select Timer and then use
the Point ▲▼ buttons to set the timer. Select from (Off/
400H/700H/1000H) depending on the use environment.
Filter counter
Test pattern
Factory default
