⑯
⑮
⑲
⑰
⑱
⑱ ZOOM
▲▼ buttons
Zoom in and out the images (p.29).
⑮ D .ZOOM button
Select the Digital zoom +/- mode and resize the
image (p.43).
⑲ PIP button
Operate the Picture in Picture function. (pp.30,55-56)
㉒ FILTER button
Scroll the filter (p.30).
㉔ FREEZE button
Freeze the picture on the screen (p.30).
⑰ KEySTONE button
Correct keystone distortion (pp.31, 44, 50).
⑳ RESET/ON/ALL-OFF switch
When using the remote control, set this switch to
“ON”. Set it to “ALL OFF” for power saving when
it is not in use. Slide this switch to “RESET” to
initialize the remote control code. (p.16)
㉖ R-CLICK button
Act as the right mouse button for wireless mouse
operation (p.32).
㉓ LENS SHIFT button
Select the Lens Shift function (p.29).
㉕ P-TIMER button
Operate the P-timer function (pp.30, 60).
㉗
㉘ NUMBER buttons
Act as number buttons. Use these buttons when
setting the remote control codes (p.16) or when
entering the PIN code numbers (pp. 23, 54, 62).
㉓
㉒
⑳
㉔
㉕
㉗ POINTER button
Act as the On-Off switch for the Pointer (pp.30, 32,
60).
㉘
For PIN code
and remote
control code.
Part Names and Functions
㉖
⑯ INPUT 1- buttons
Select an input source (INPUT 1 – INPUT 3)
(pp.33-35).

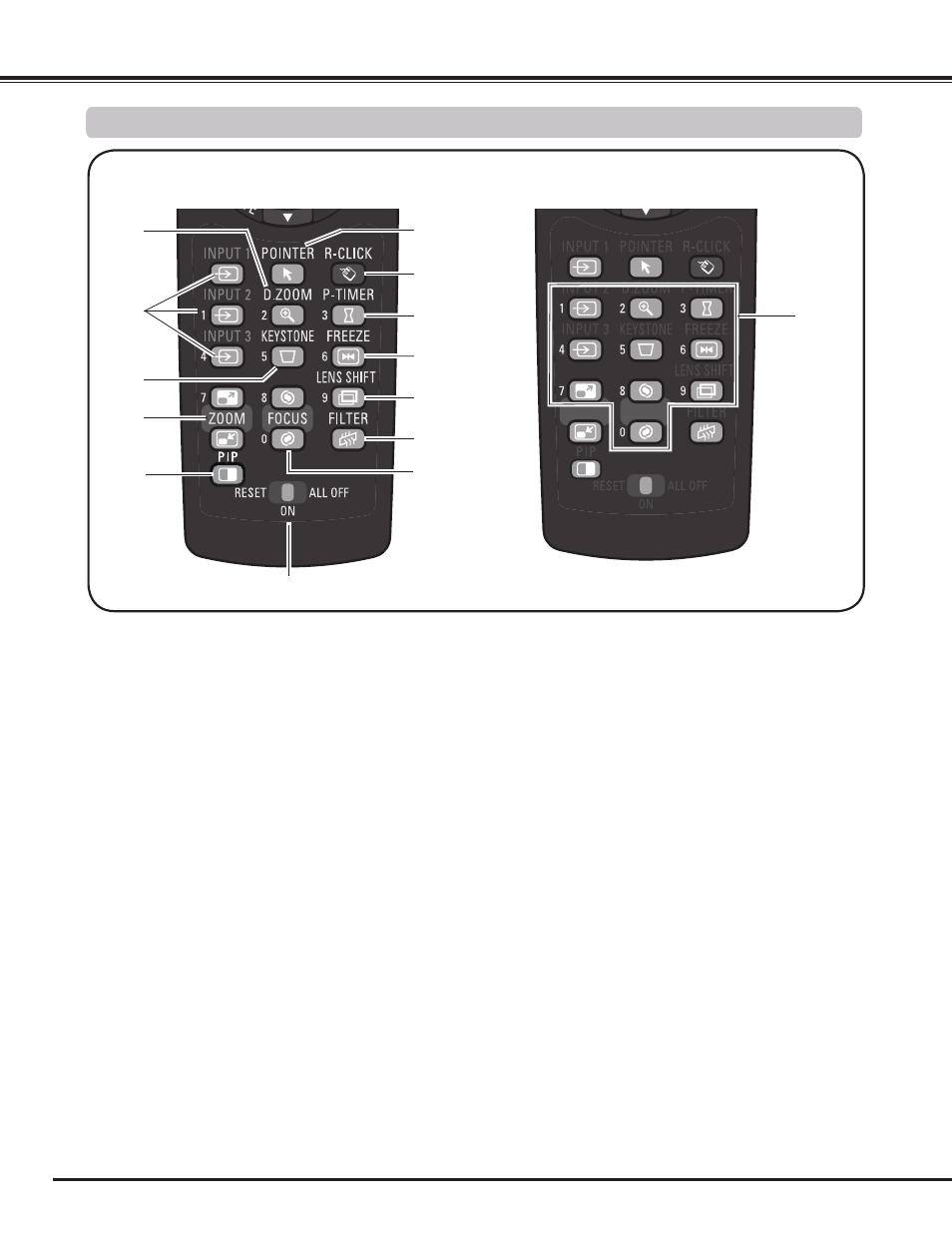

Remote Control
㉑
㉑ FOCUS buttons
Adjust the focus (p.29).
